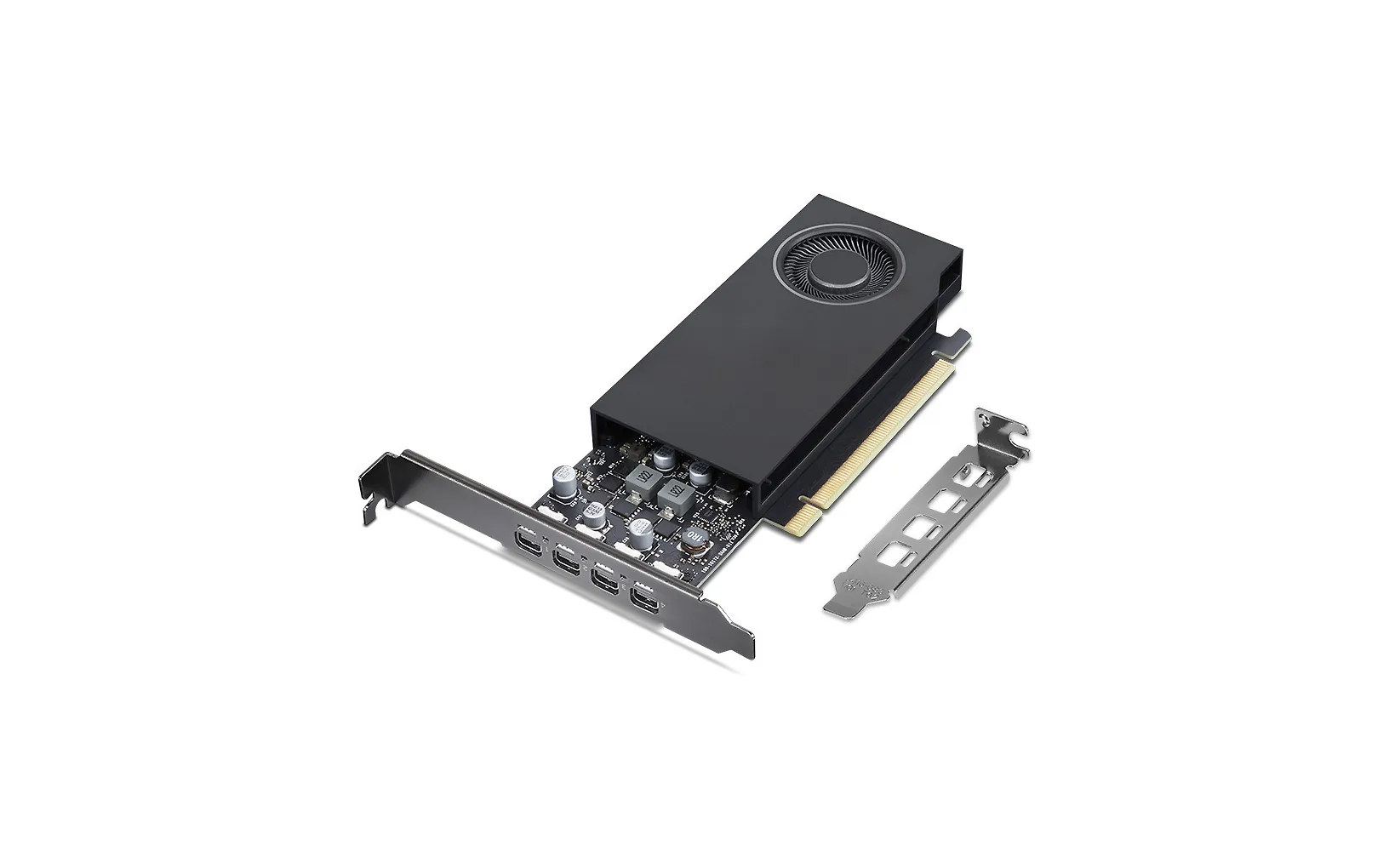

LENOVO NVIDIA RTX A1000 MINI-DP GRAPHICS CARD

The Lenovo NVIDIA RTX A1000 mini-DP is a compact professional workstation graphics card based on the NVIDIA Ampere architecture. It offers powerful performance for CAD design, 3D modeling, visualization, rendering, and AI-powered workflows. Its low-profile design and low power consumption make it an excellent choice for small form factor workstations.

Technical Specifications

Graphics Chip: NVIDIA RTX A1000
Architecture: NVIDIA Ampere
Video Memory: 8 GB GDDR6 ECC
CUDA Cores: 2,304
Tensor Cores: 72 (3rd Gen)
RT Cores: 18 (2nd Gen)
Memory Bus: 128-bit
Memory Bandwidth: 192 GB/s
Interface: PCI Express 4.0 x8
Display Connectors: 4 x Mini DisplayPort
Max Resolution: 7680 × 4320 (8K)
Multi-display Support: Up to 4 displays
DirectX Support: DirectX 12 Ultimate
OpenGL Support: OpenGL 4.6
ECC Memory Support: Yes
Power Consumption: 50–70 W
Cooling: Active blower-style cooling
Card Slots: Single-slot, Low Profile
Recommended Use: CAD, BIM, 3D design, visualization, rendering, and AI applications

The Lenovo NVIDIA RTX A1000 mini-DP offers professional-grade graphics performance in an extremely compact form factor. With 8 GB of GDDR6 ECC memory, real-time ray tracing, AI-accelerating Tensor Cores, and four Mini DisplayPort connections, it is an excellent solution for designers, engineers, and content creators. Its small size, low power consumption, and workstation-grade reliability enable efficient work even in space-constrained workstations.
