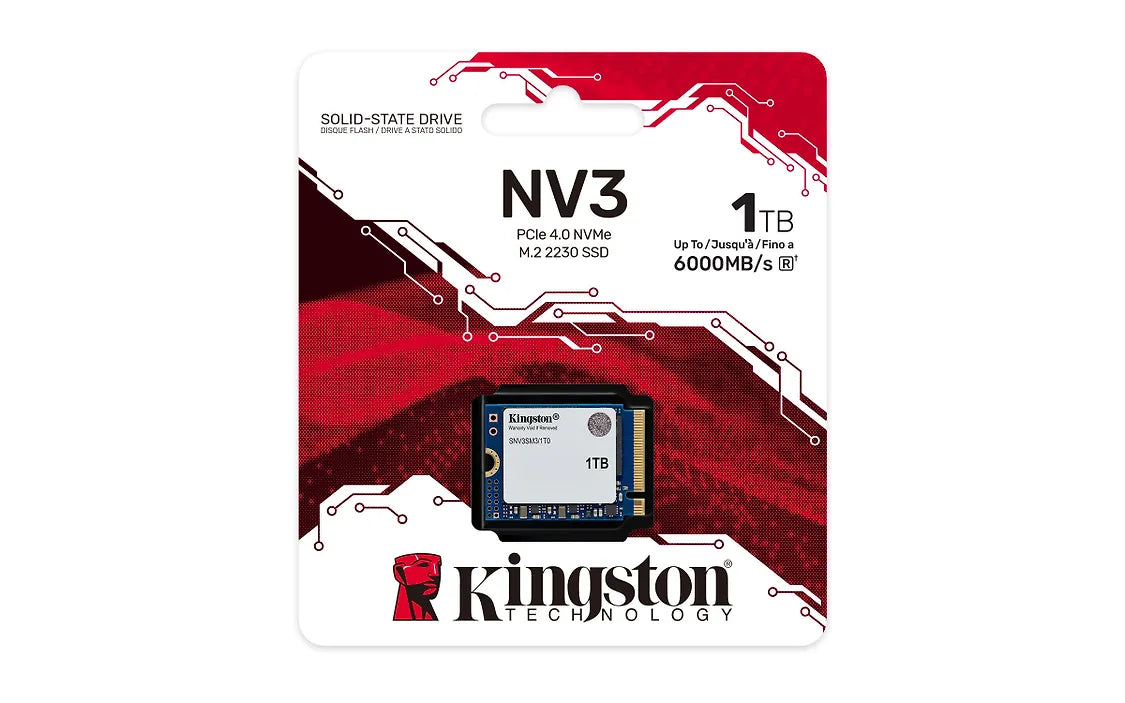

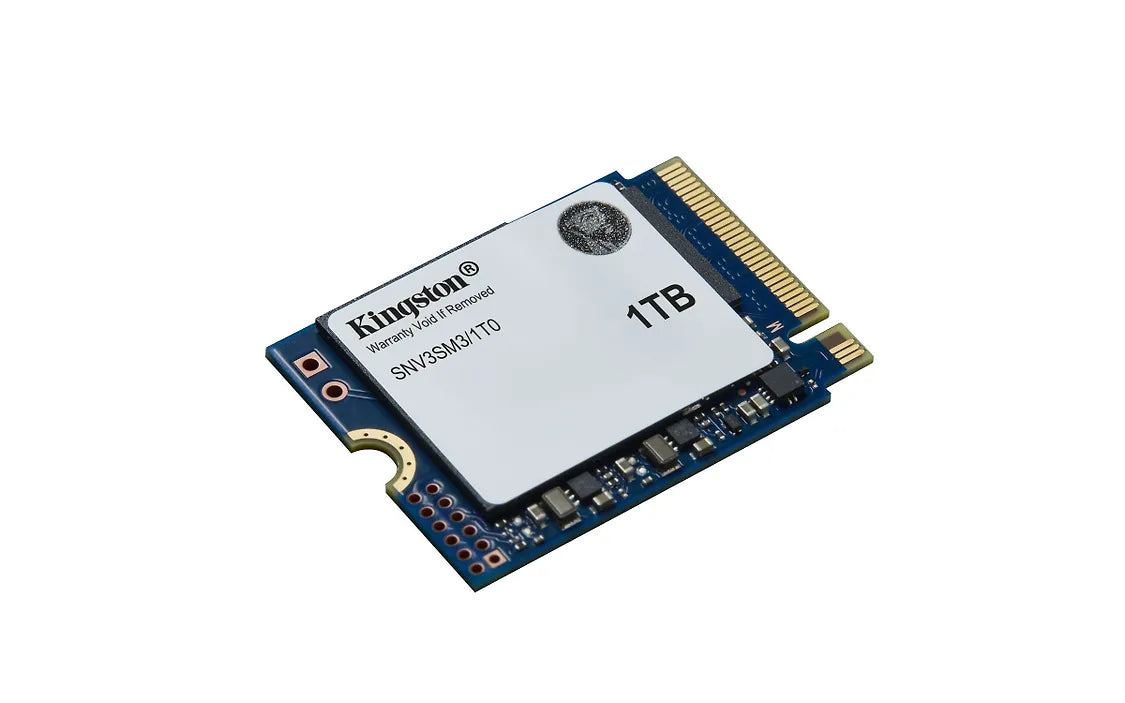

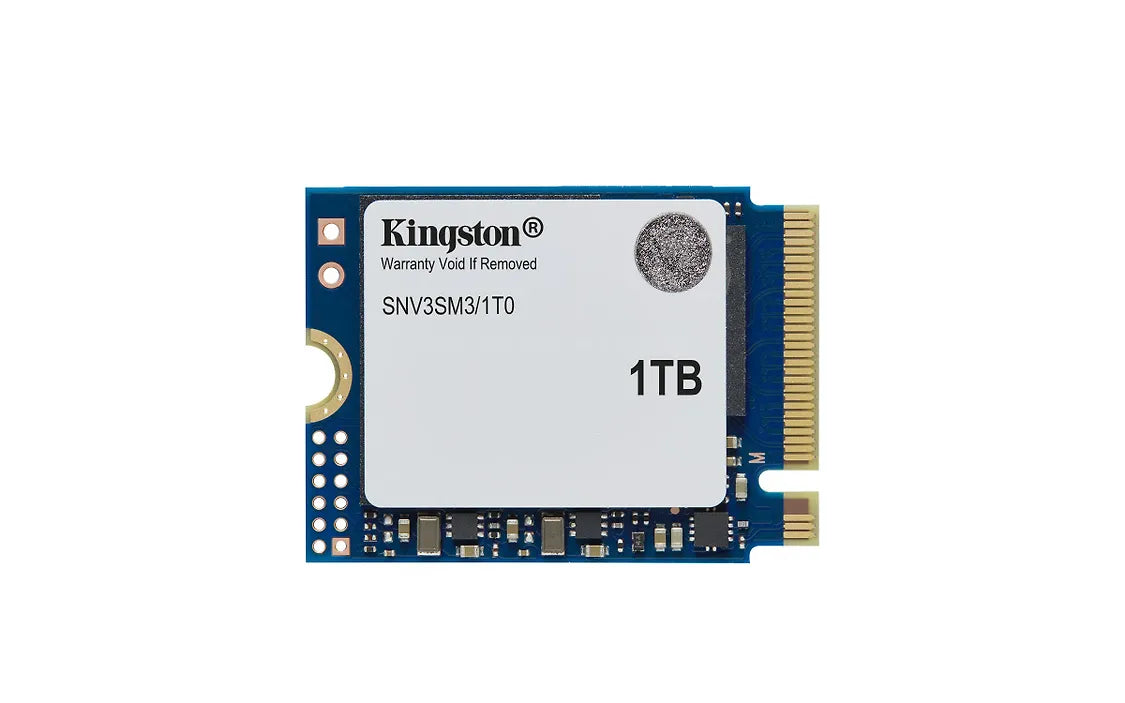

KINGSTON NV3 1 TB M.2 2230 NVME SSD - HARD DRIVE

Kingston NV3 1 TB M.2 2230 is a compact PCIe 4.0 NVMe SSD, designed specifically for ultra-portable computers, handheld consoles, and other small-form-factor systems. With its small 2230 form factor, it is suitable for devices like the Steam Deck, ASUS ROG Ally, and many thin laptops. It offers good performance, low power consumption, and large storage capacity in a compact size.

Technical specifications

Product series: Kingston NV3 2230
Storage capacity: 1 TB (1024 GB)
Drive type: SSD
Form factor: M.2 2230
Interface: PCI Express 4.0 x4 NVMe
NVMe version: NVMe 1.4
Memory type: 3D NAND
DRAM cache: No (HMB support)
Controller: Gen4 x4 NVMe controller
Cooling: No separate heatsink
Sequential read speed: up to 6,000 MB/s
Sequential write speed: up to 4,000 MB/s
Endurance (TBW): 320 TB
MTBF: 2 million hours
TRIM support: Yes
S.M.A.R.T. support: Yes
Power consumption: Low, optimized for mobile devices
Compatibility: PCIe 4.0 and PCIe 3.0 systems, devices with an M.2 2230 slot
Operating temperature: 0–70 °C
Dimensions: 22 × 30 × 2.3 mm
Weight: approximately 2.8 g
Warranty: 5 years

The Kingston NV3 1 TB M.2 2230 offers good PCIe 4.0 performance in a very small size, making it an excellent option for laptops, handheld consoles, and other compact devices. Its read speed of up to 6,000 MB/s and write speed of 4,000 MB/s significantly accelerate booting, application loading, and file transfers compared to traditional SSD solutions.
