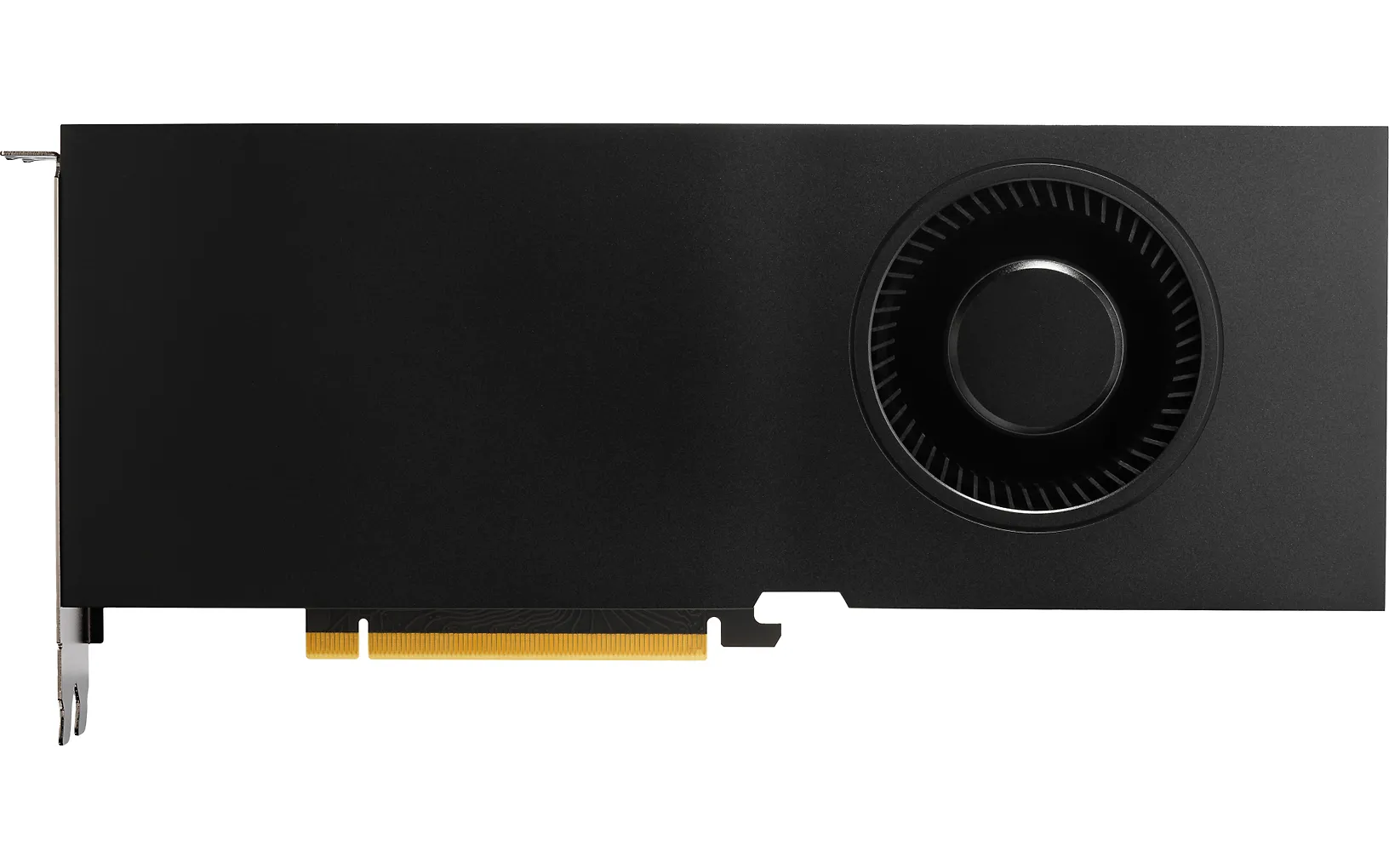

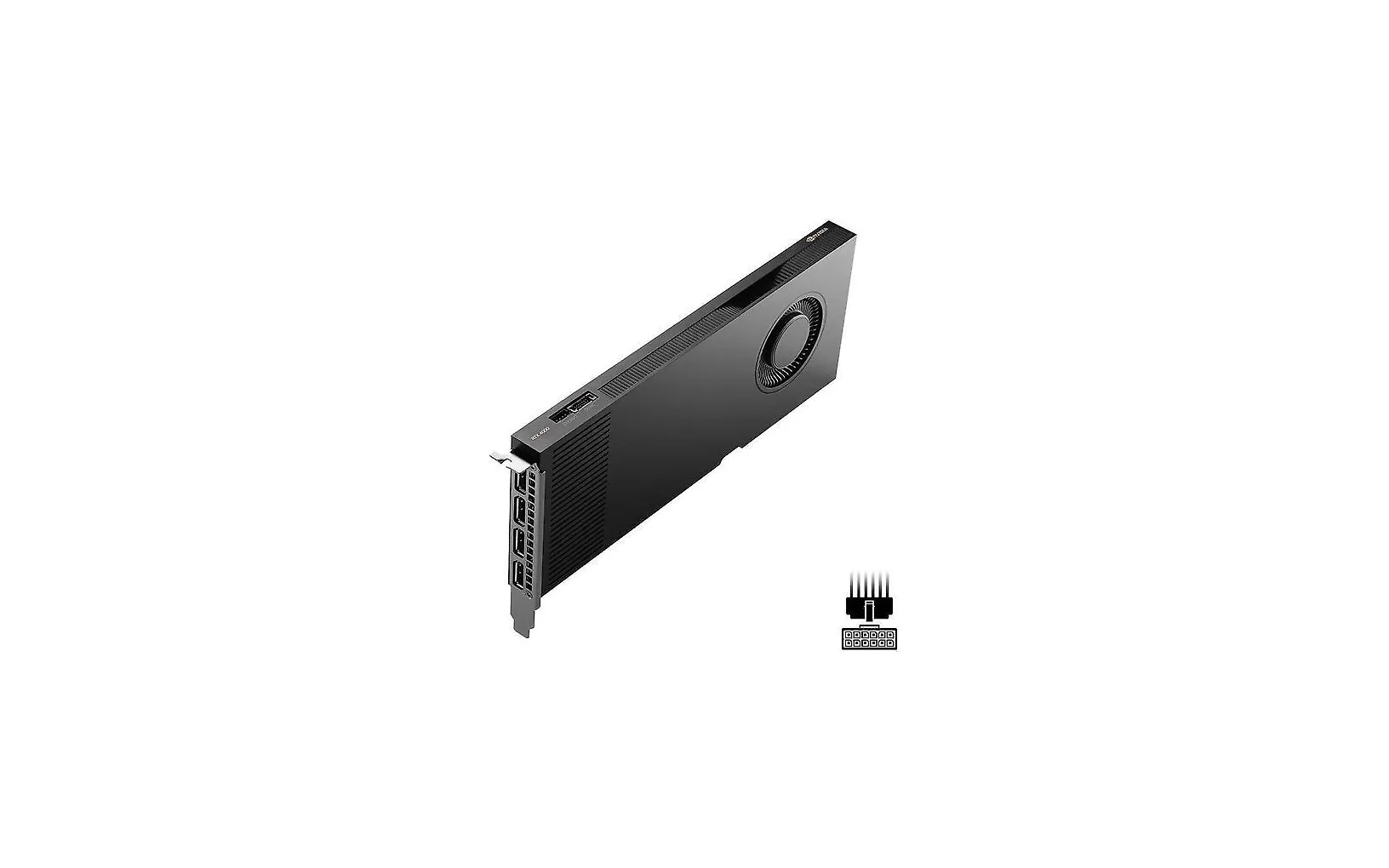

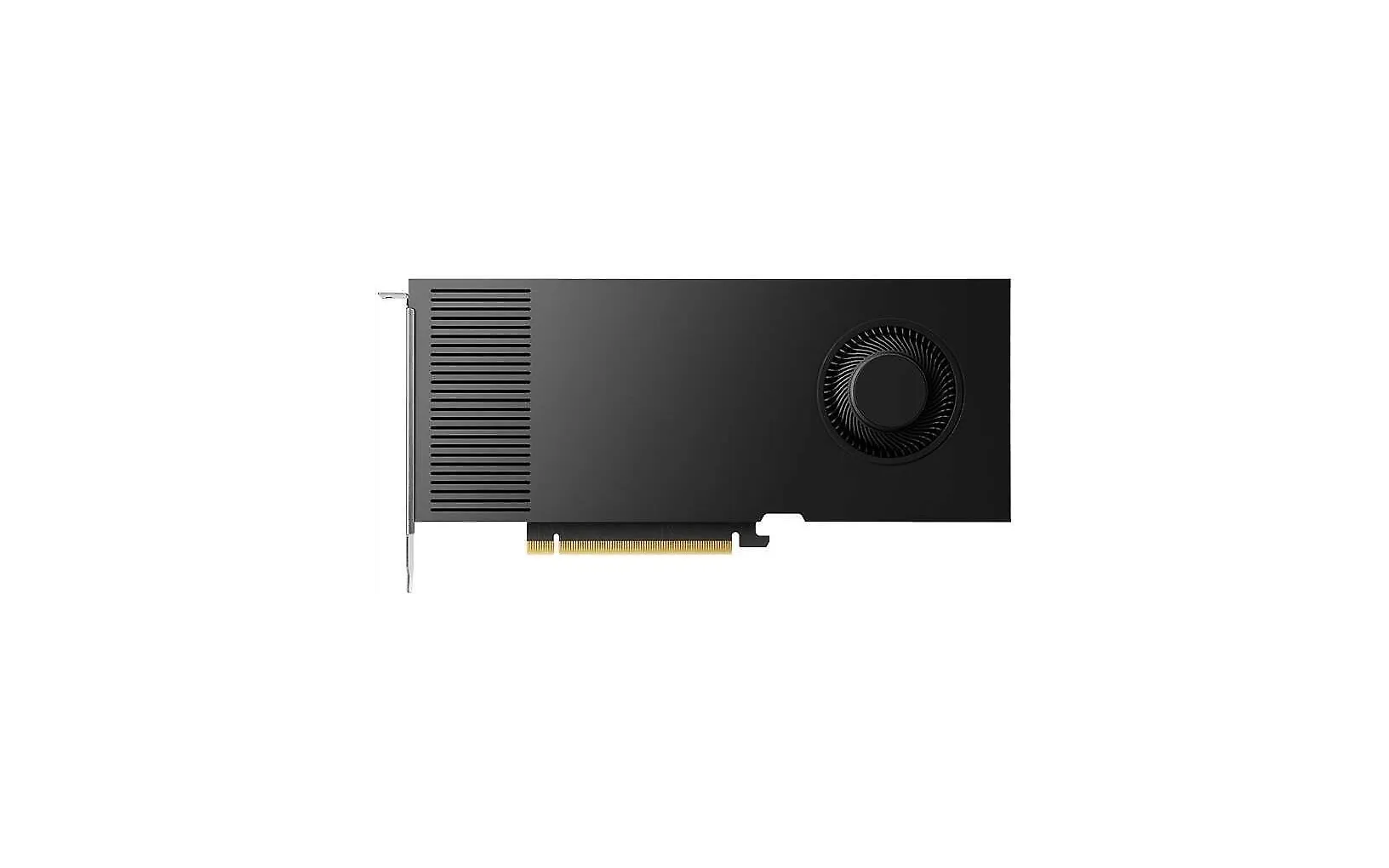

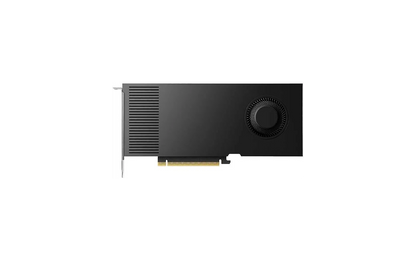

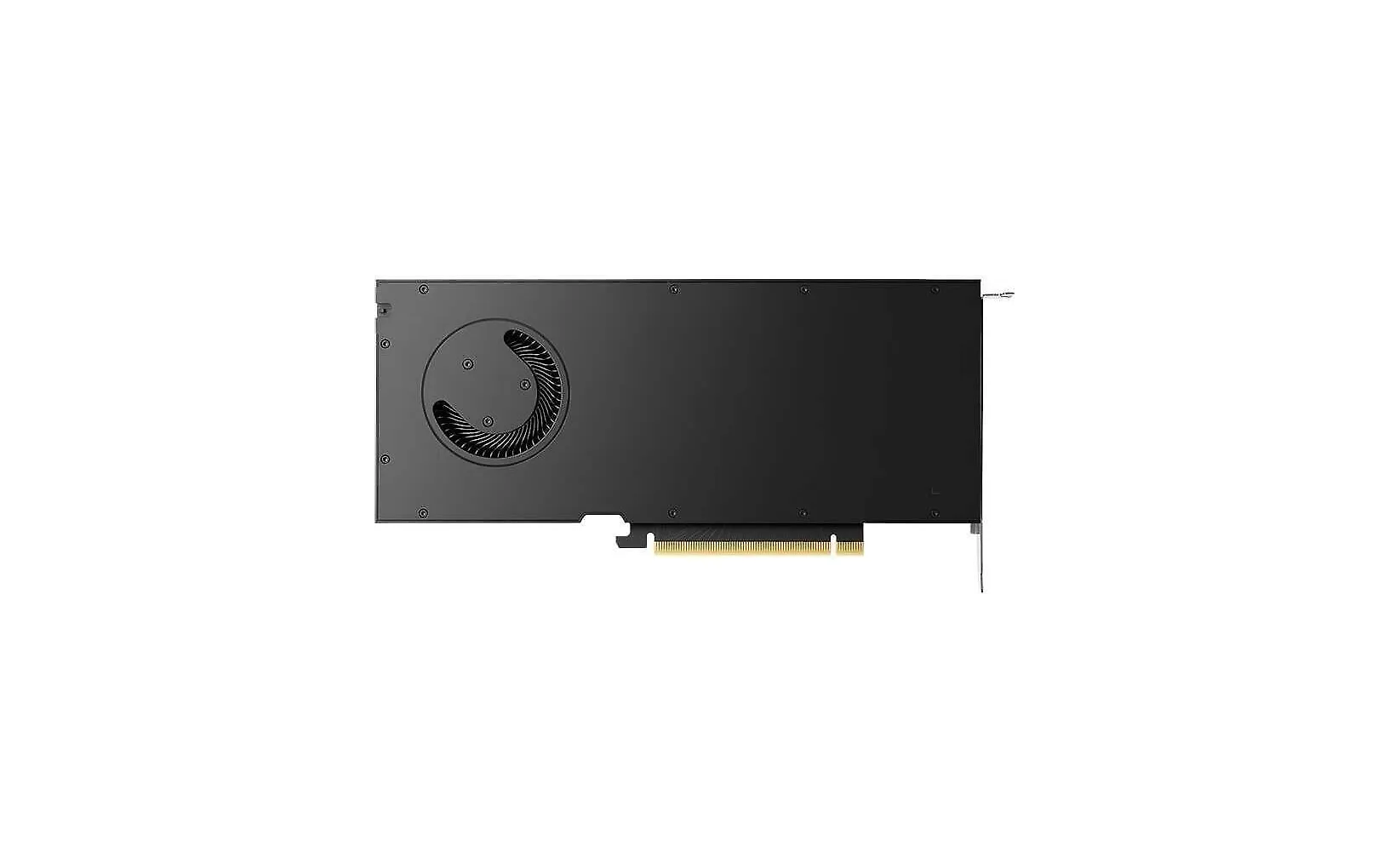

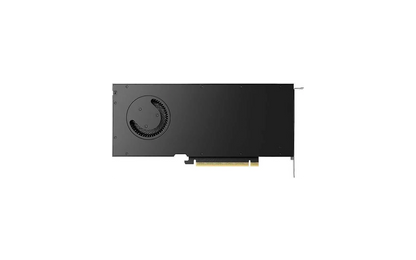

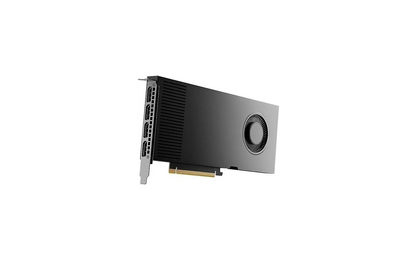

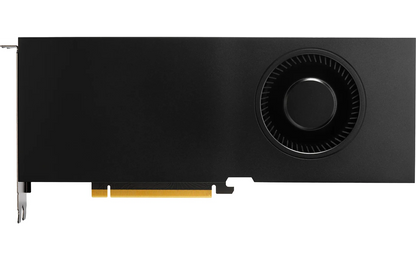

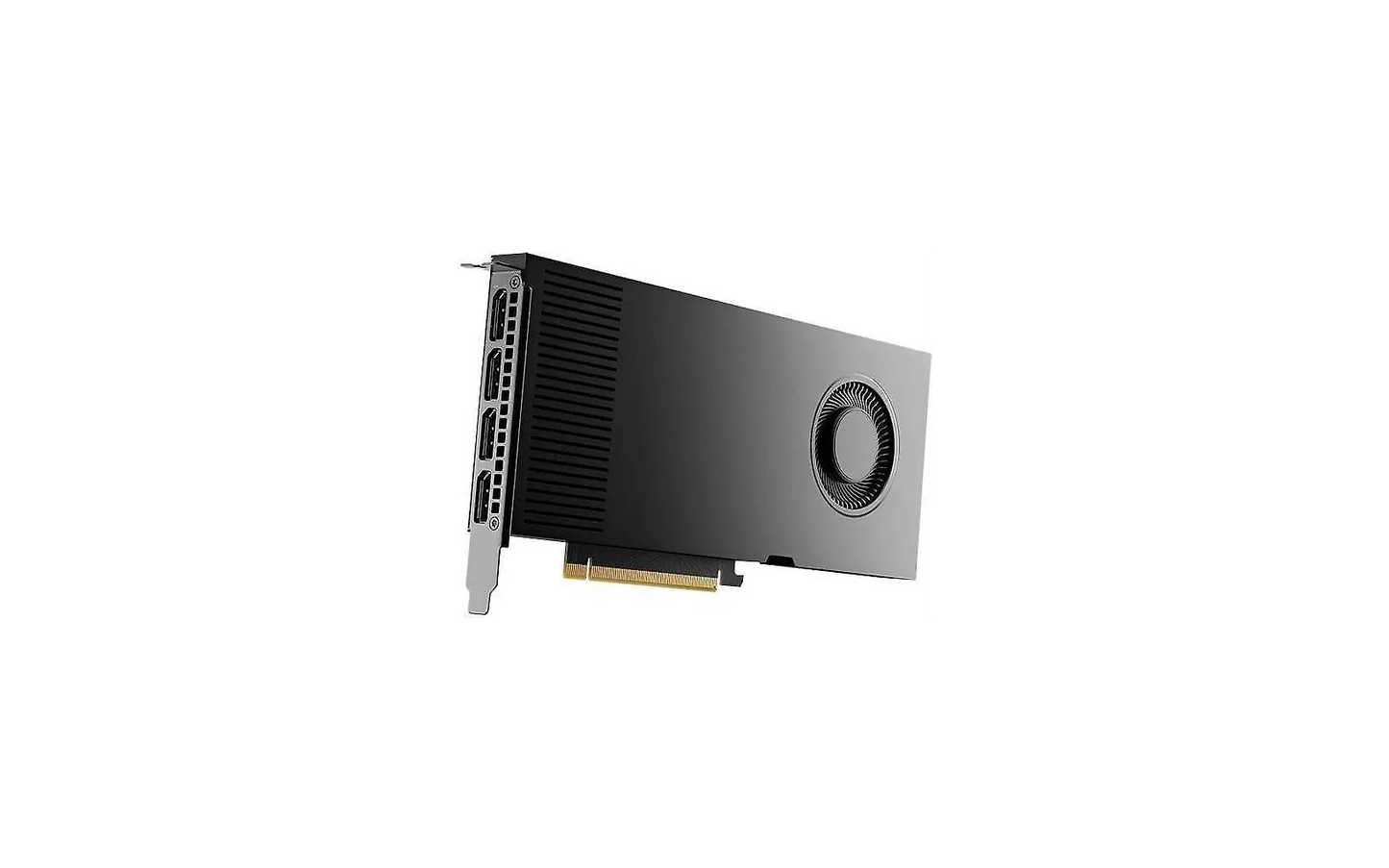

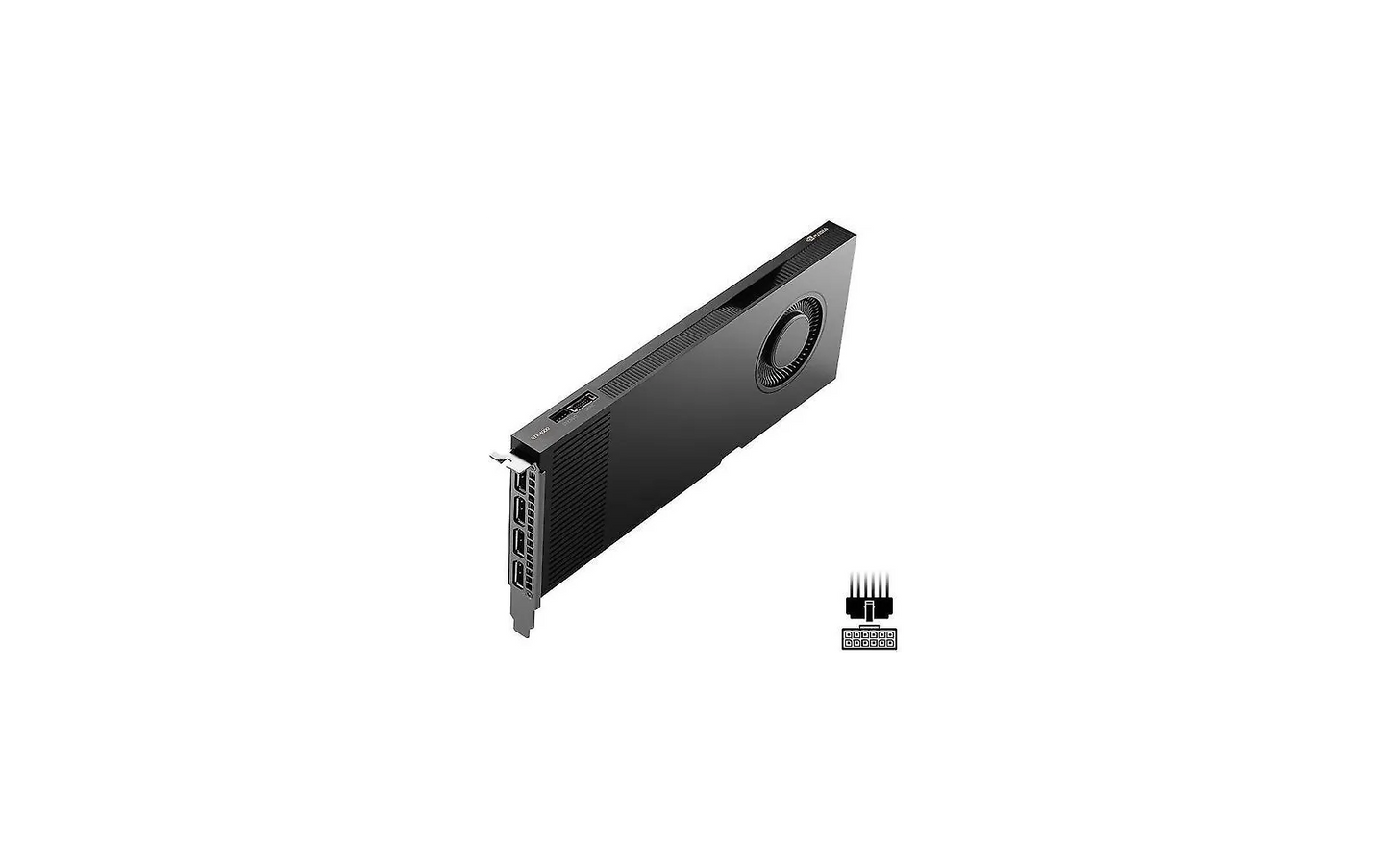

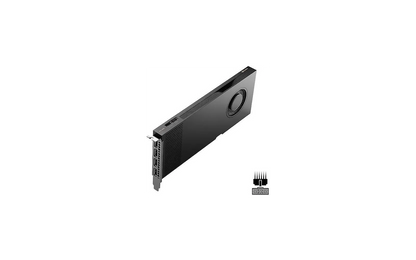

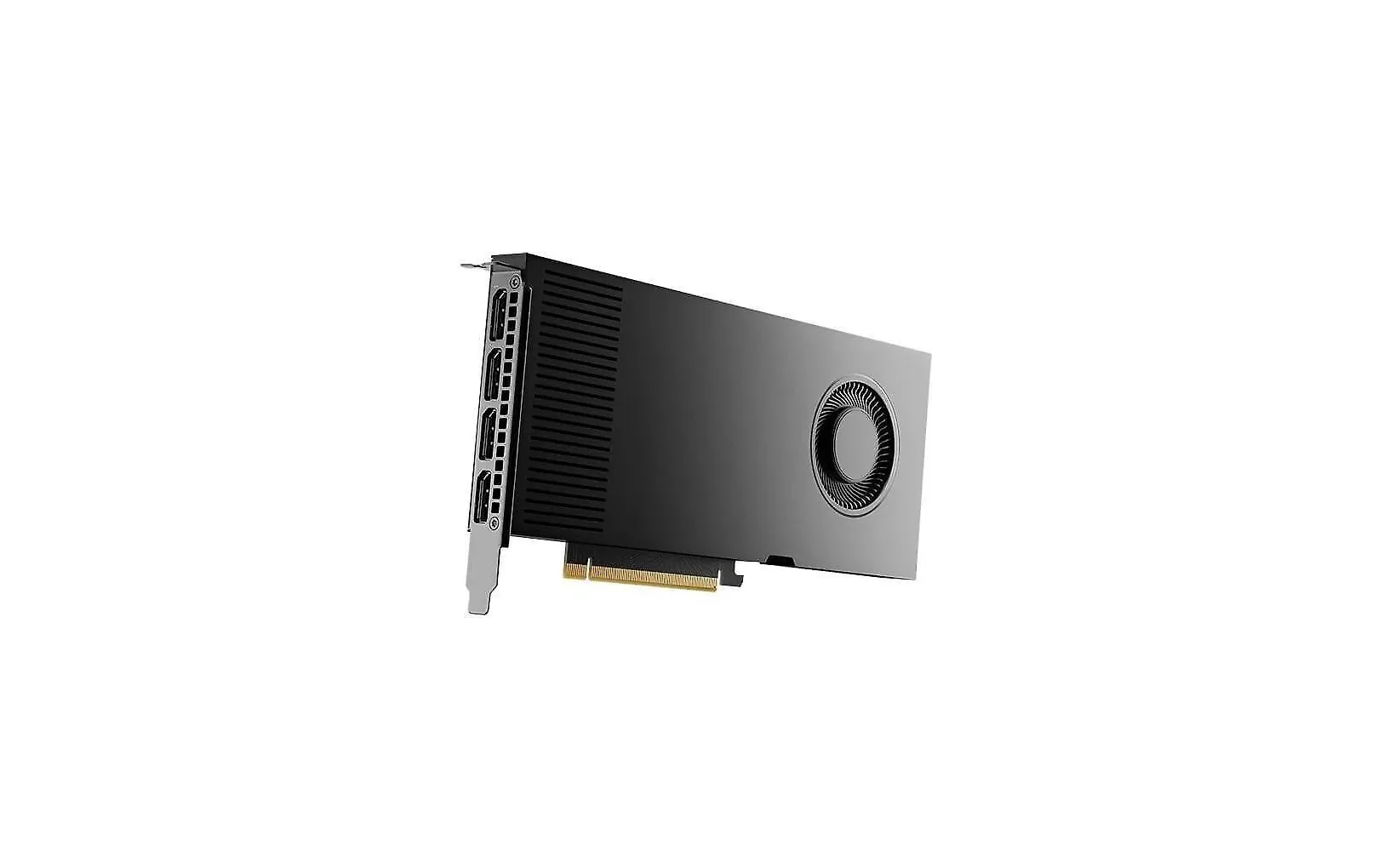

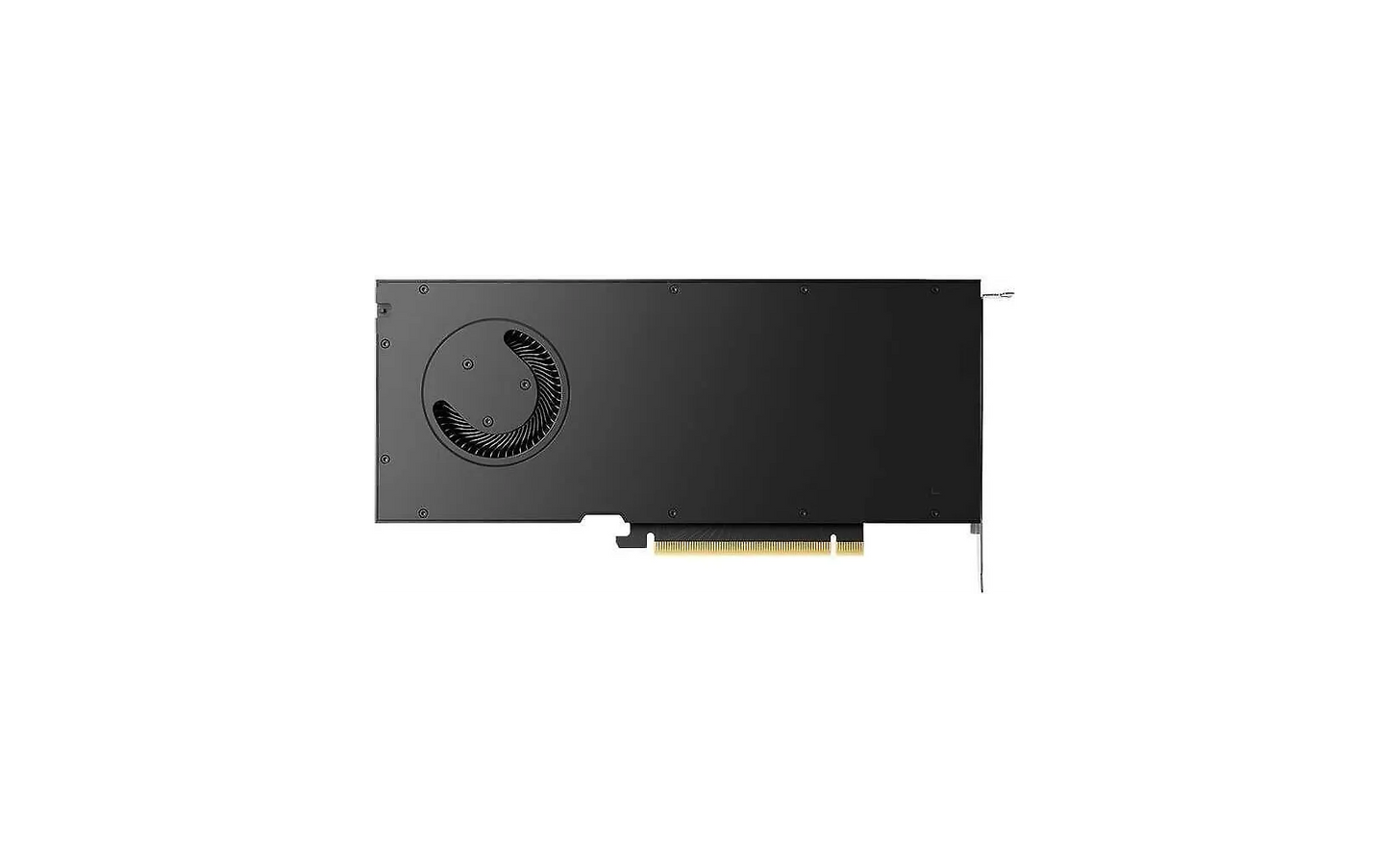

HP NVIDIA RTX 4000 ADA 4DP GRAPHICS CARD

The HP NVIDIA RTX 4000 Ada 4DP is a professional workstation graphics card based on the NVIDIA Ada Lovelace architecture. It offers an excellent balance of performance, power consumption, and size, making it an ideal choice for CAD design, 3D modeling, visualization, rendering, simulation, and AI workloads. The card is among the most powerful single-slot workstation graphics solutions on the market.

Technical Specifications

Graphics Chip: NVIDIA RTX 4000 Ada Generation
Architecture: NVIDIA Ada Lovelace
Video Memory: 20 GB GDDR6 ECC
Memory Bus: 160-bit
Memory Bandwidth: 360 GB/s
CUDA Cores: 6,144
Tensor Cores: 192 (4th Gen)
RT Cores: 48 (3rd Gen)
Interface: PCI Express 4.0 x16

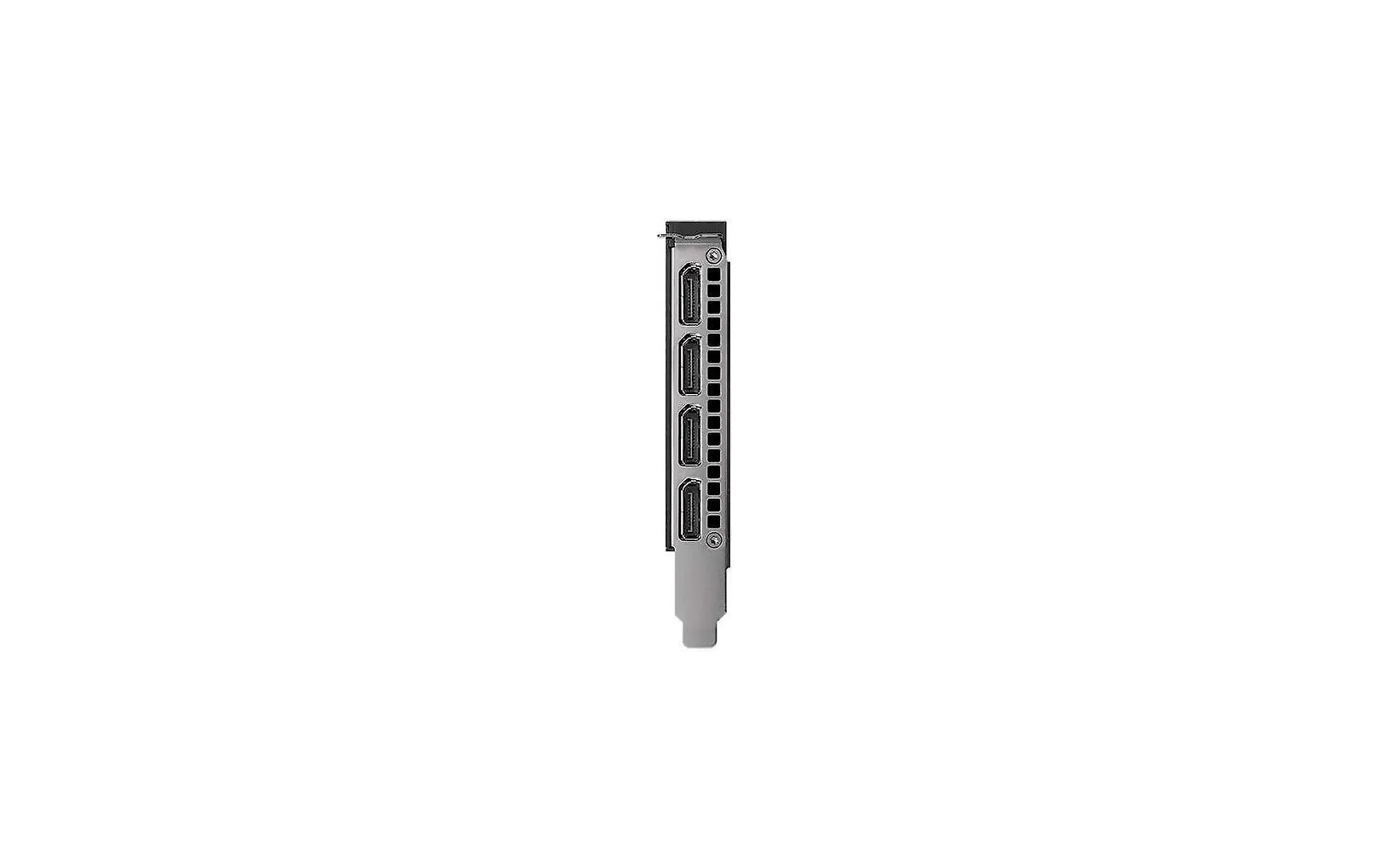

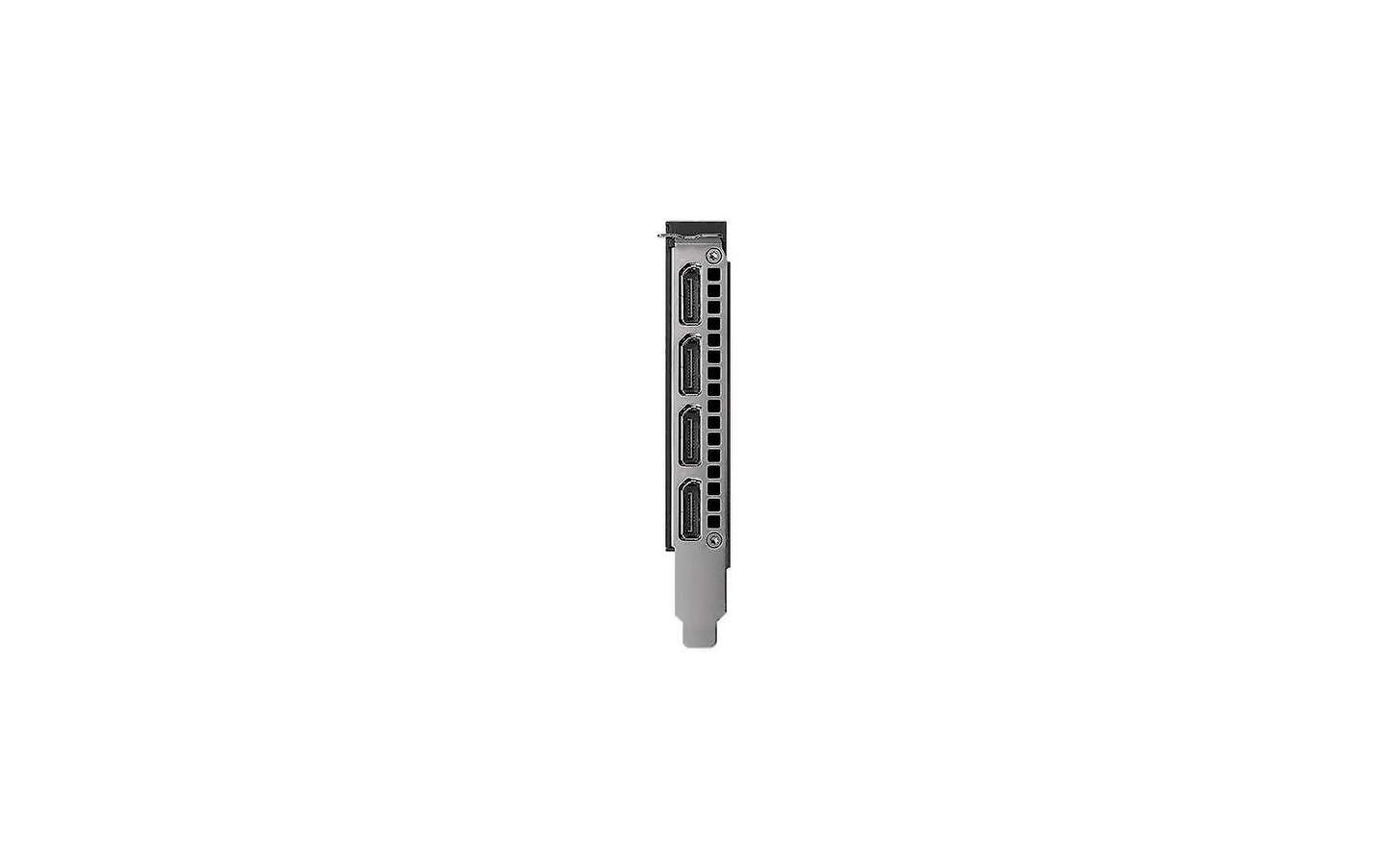

Display Connectors: 4 x DisplayPort 1.4a
Maximum Resolution: 7680 × 4320 (8K)
DirectX Support: DirectX 12 Ultimate
OpenGL Support: OpenGL 4.6
Vulkan Support: Yes
ECC Memory Support: Yes
Multi-Display Support: Up to 4 displays
Power Consumption: 130 W
Power Connector: No separate power connector (in most configurations)
Cooling: Active blower-type cooling
Card Slots: Single-slot
Dimensions: 241 × 112 mm
Recommended Use: CAD, BIM, visualization, rendering, simulation, AI, content creation, and professional use

The HP NVIDIA RTX 4000 Ada 4DP offers workstation-class performance in a compact single-slot form factor. Its 20 GB ECC GDDR6 memory, 6,144 CUDA cores, advanced RT and Tensor cores, and Ada Lovelace architecture enable efficient processing of large 3D models, visualization projects, and AI workloads. The single-slot design, low power consumption, and professionally certified drivers make it an excellent option for workstations requiring reliable performance in a limited space.
