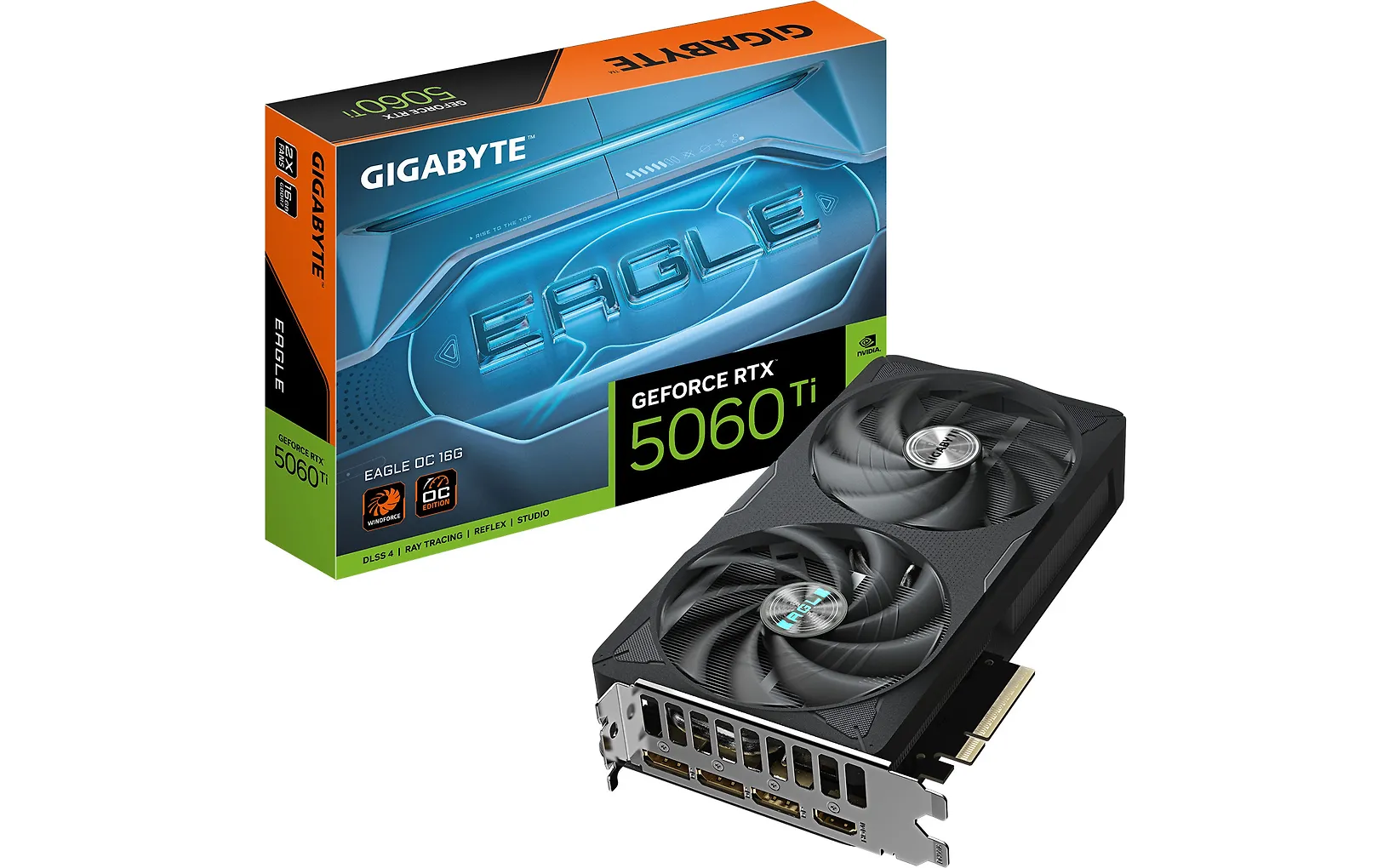

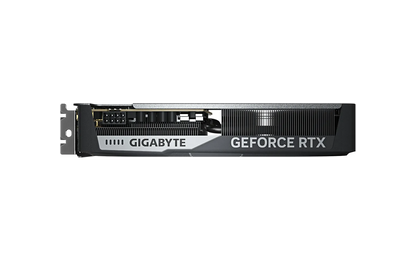

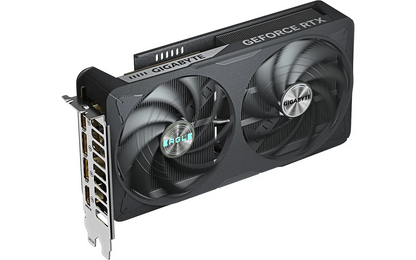

GIGABYTE GEFORCE RTX 5060 TI EAGLE OC GRAPHICS CARD

The Gigabyte GeForce RTX 5060 Ti EAGLE OC is a graphics card based on the NVIDIA Blackwell architecture, offering excellent performance for 1080p and 1440p gaming, as well as content creation. The EAGLE series sits between the WINDFORCE and GAMING OC models, providing efficient cooling, modern design, and factory overclocking at a competitive price point.

Technical Specifications

Graphics Processor: NVIDIA GeForce RTX 5060 Ti
Architecture: NVIDIA Blackwell
Video Memory: 16 GB GDDR7
CUDA Cores: 4,608
Memory Bus: 128-bit
Memory Speed: 28 Gbps
Memory Bandwidth: 448 GB/s
Interface: PCI Express 5.0 x8
Boost Clock: Up to 2572 MHz
Tensor Cores: 5th Generation
RT Cores: 4th Generation

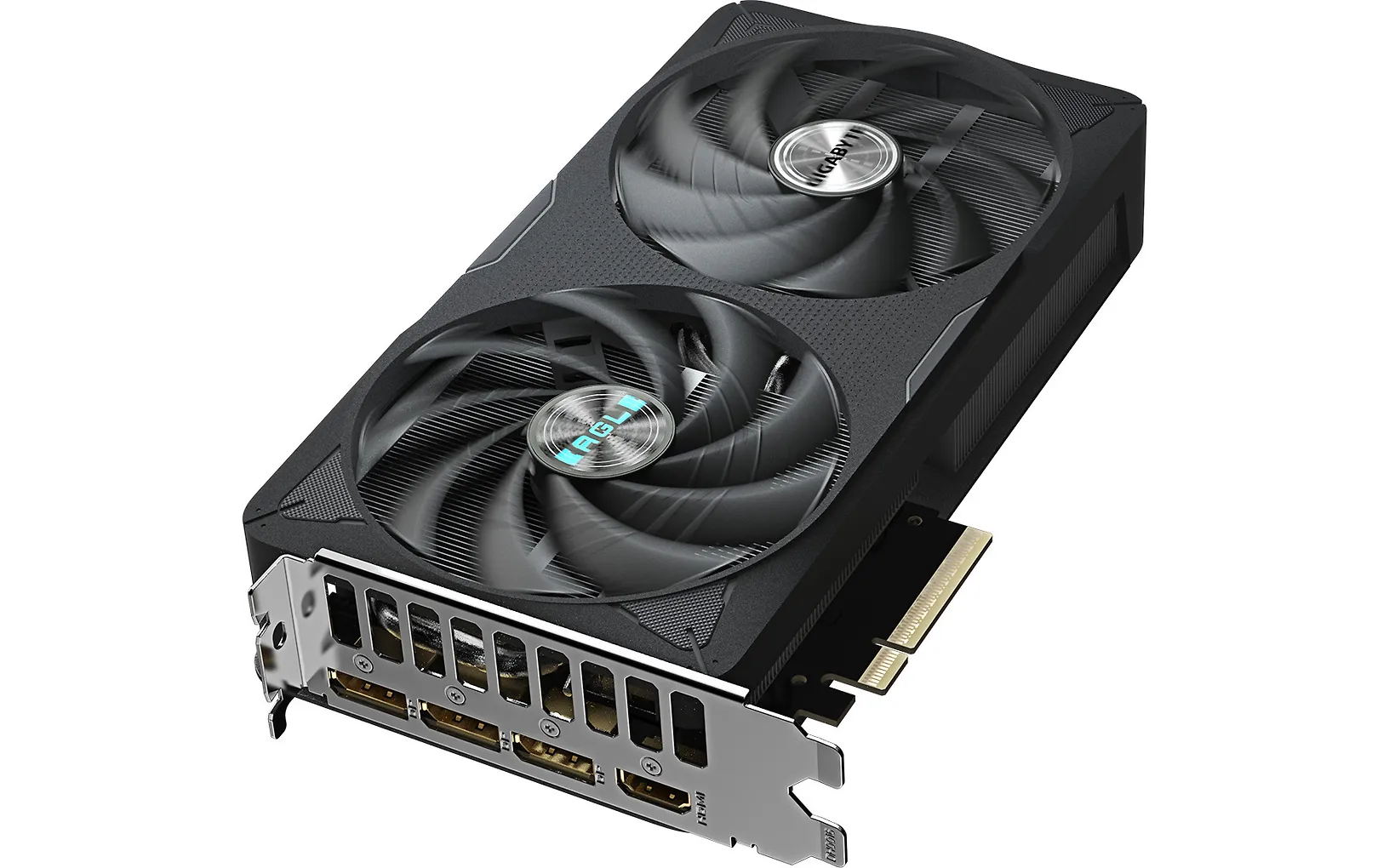

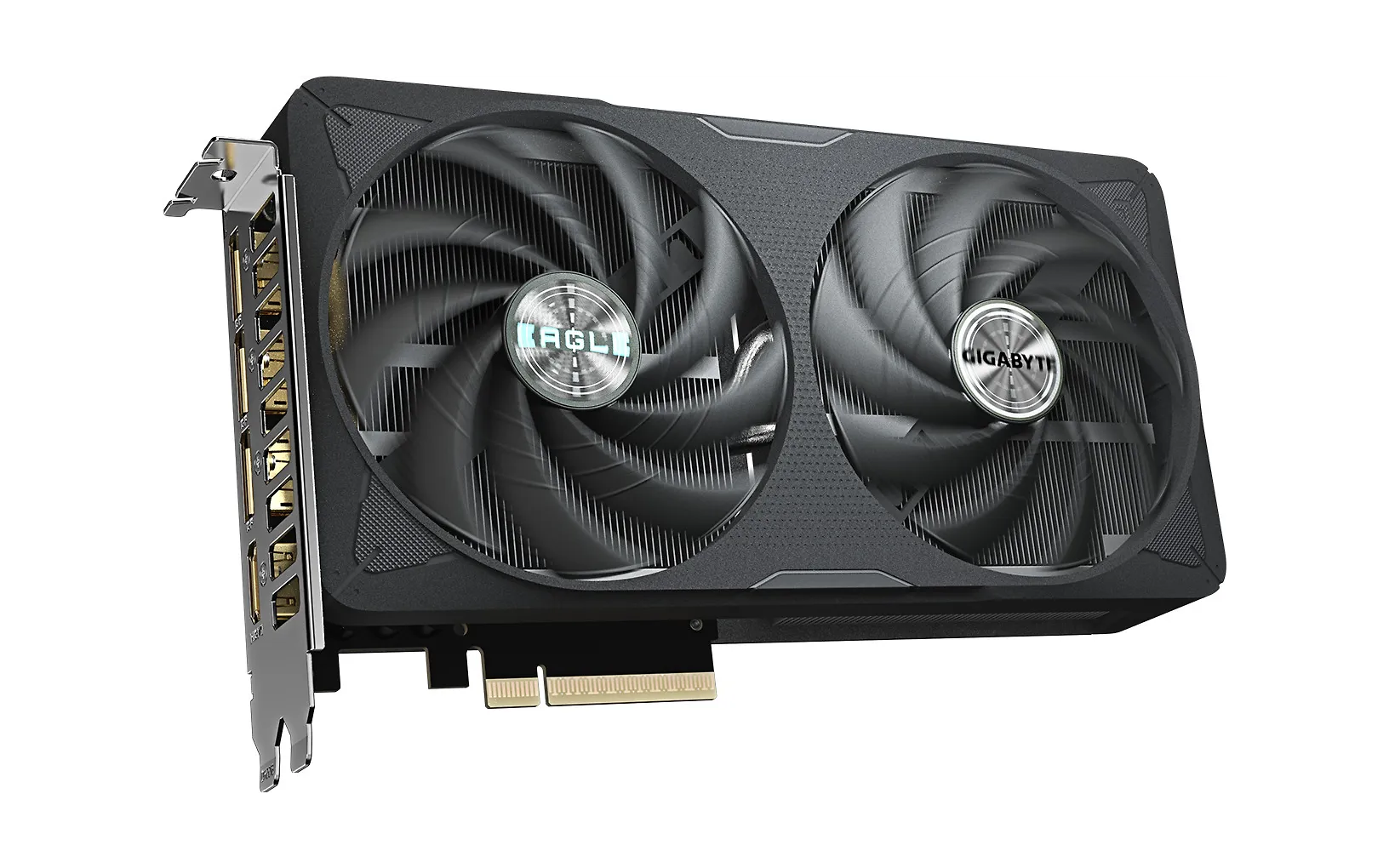

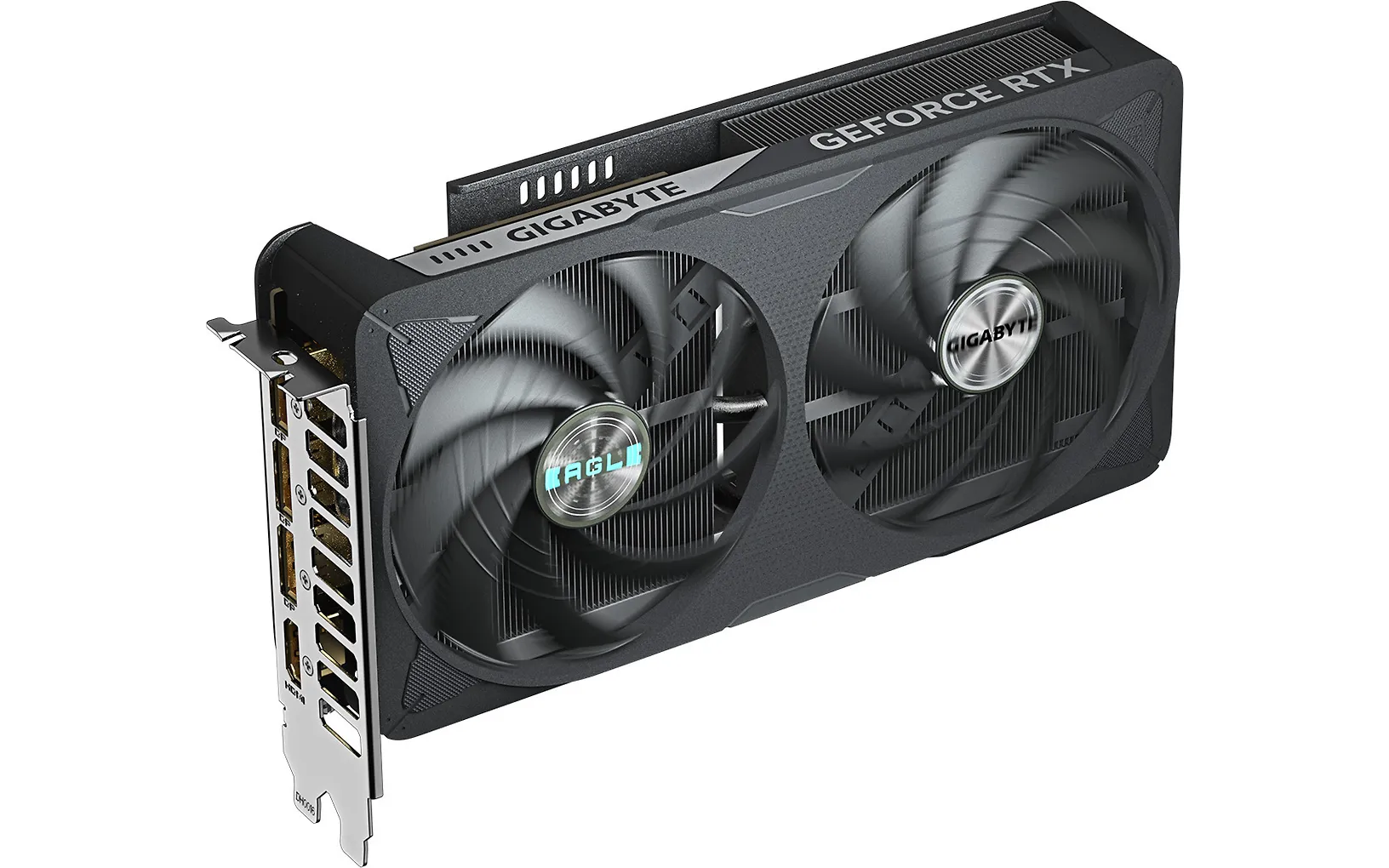

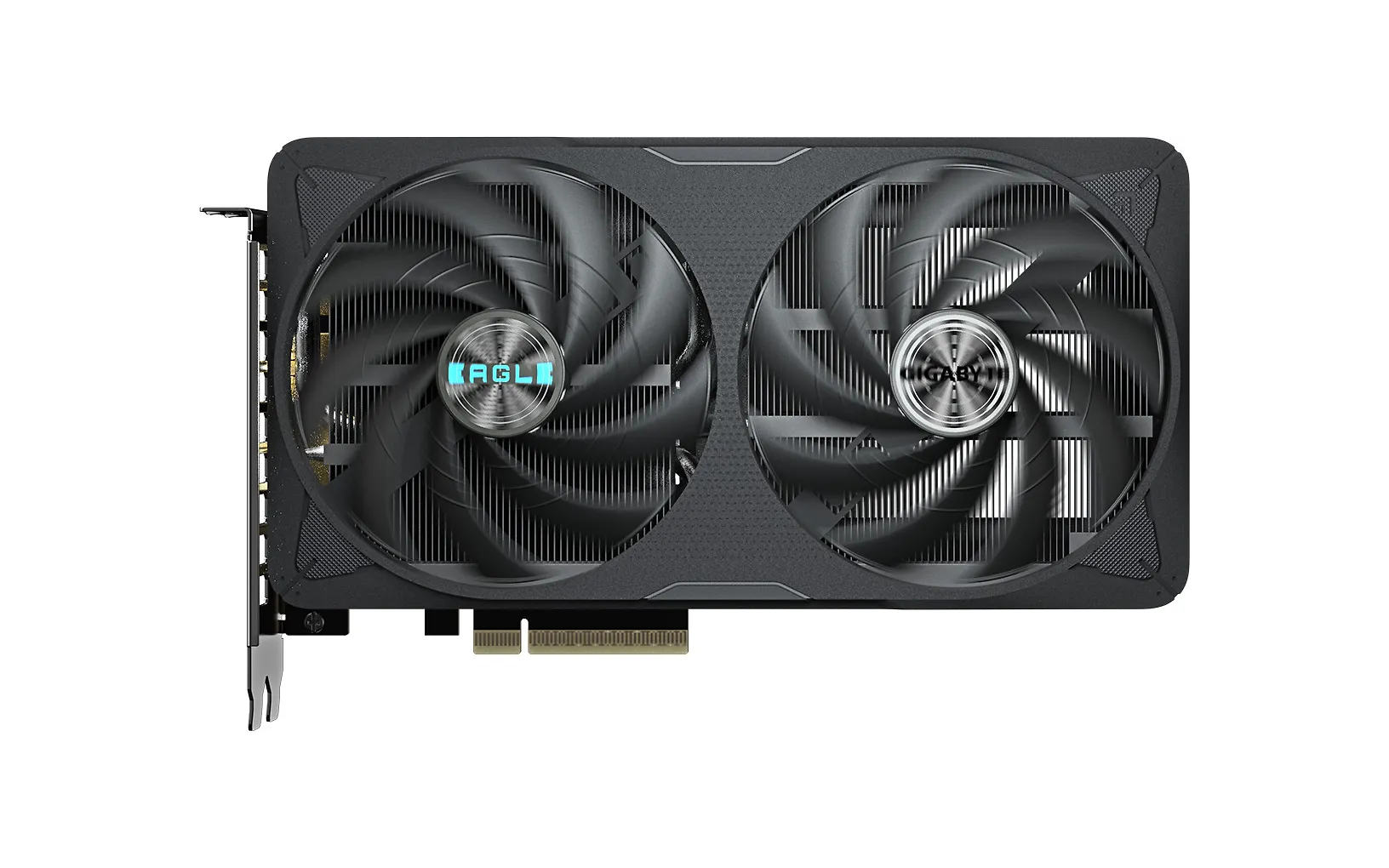

Cooling: WINDFORCE cooling system, two Hawk fans

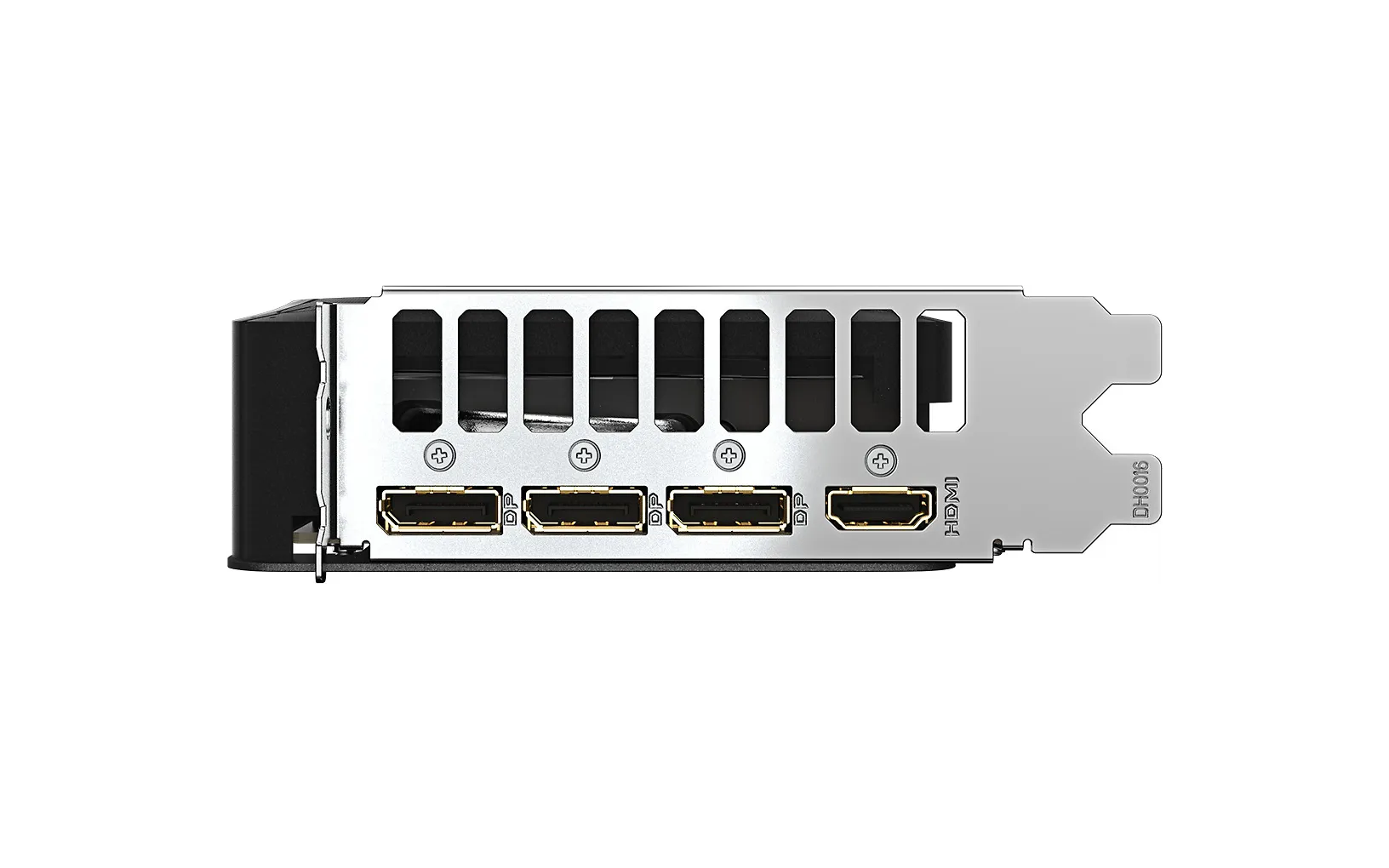

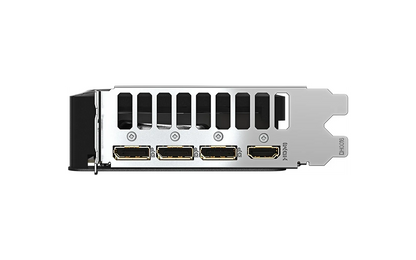

Display Outputs: 3 × DisplayPort 2.1b, 1 × HDMI 2.1b
Maximum Resolution: 7680 × 4320 (8K)
DirectX Support: DirectX 12 Ultimate
OpenGL Support: OpenGL 4.6
DLSS Support: NVIDIA DLSS 4
Ray Tracing: Yes

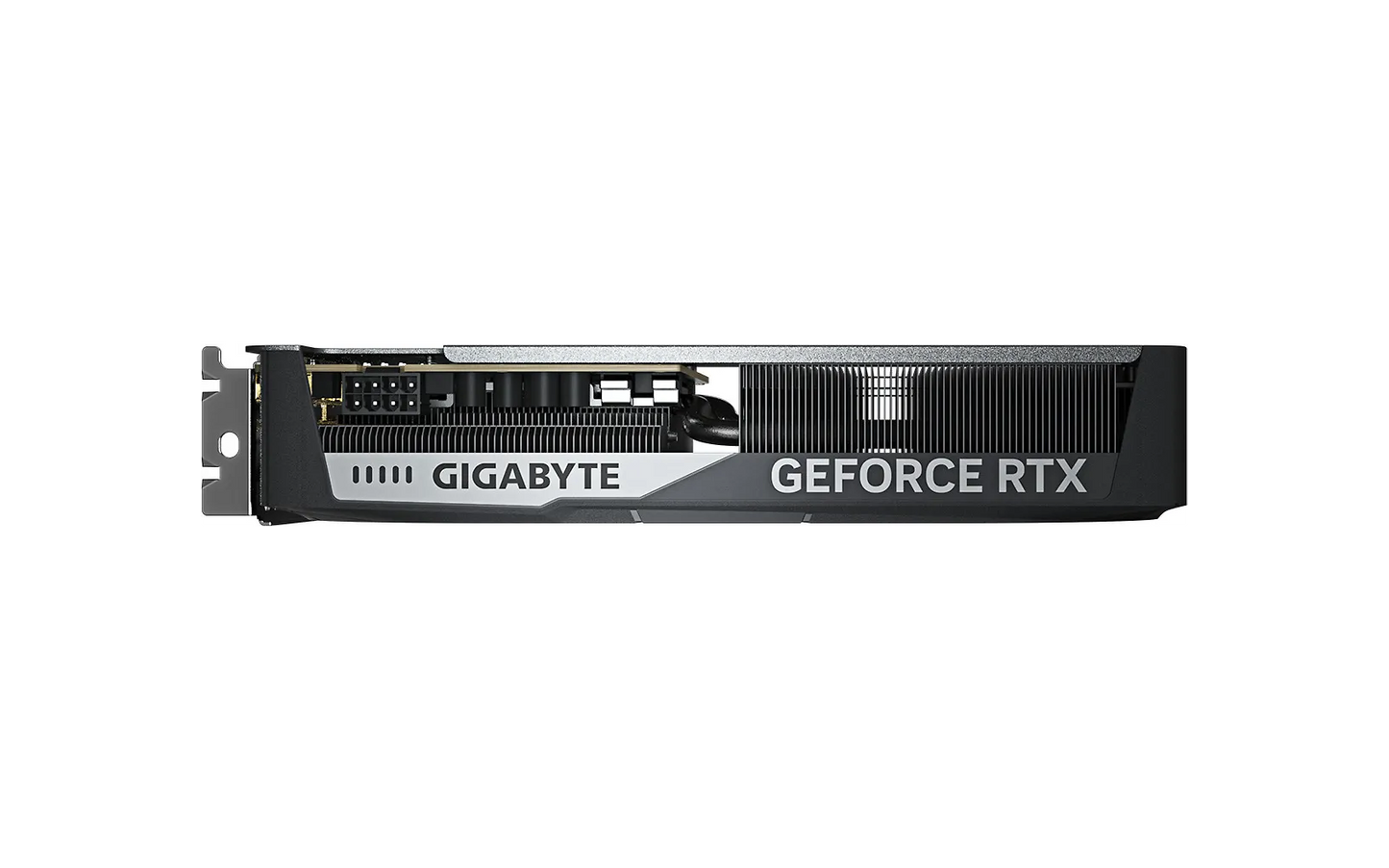

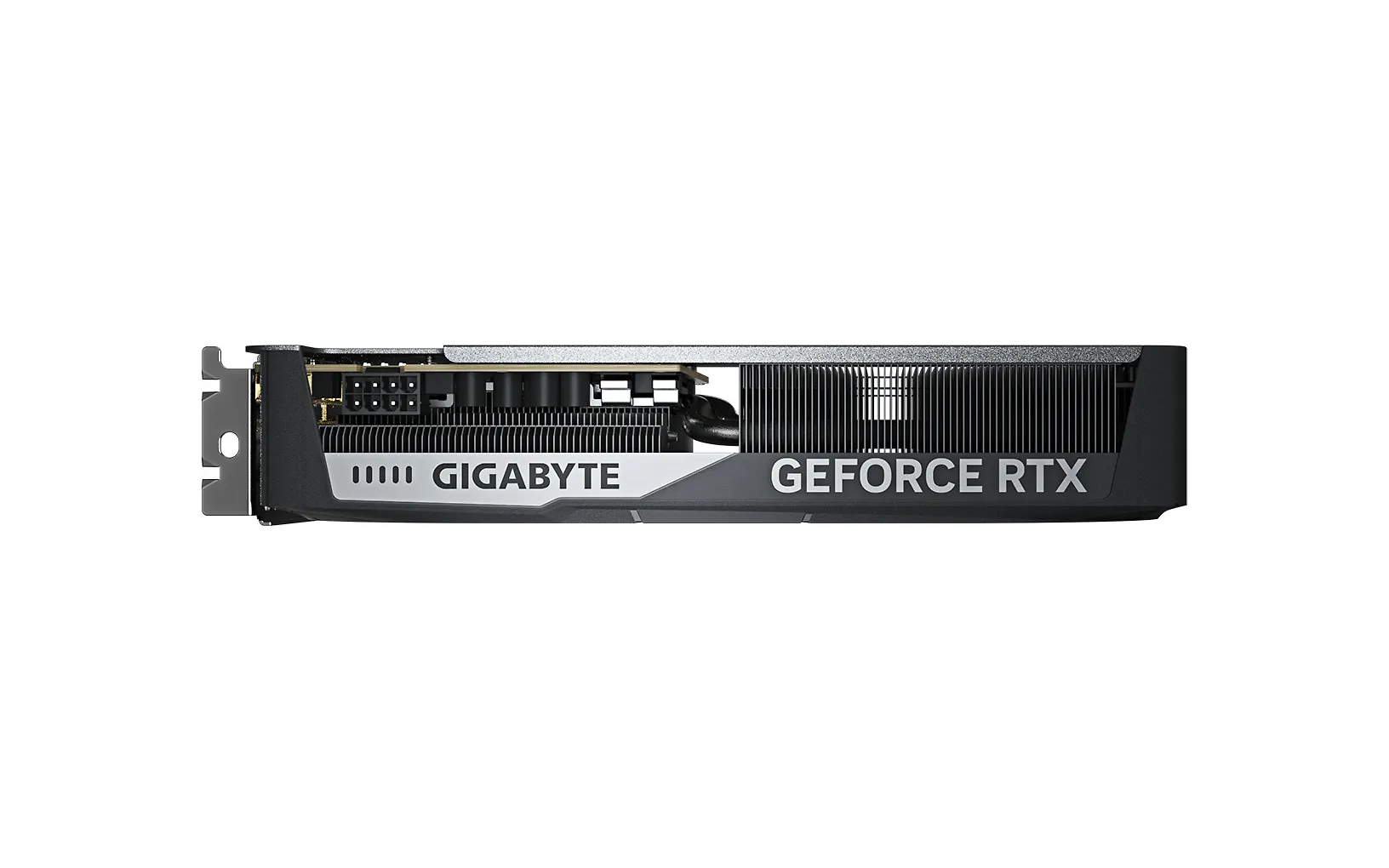

Power Connector: 1 × 8-pin PCIe
Power Consumption: 180 W
Slot Width: 2-slot
Card Length: approx. 215 mm
Recommended PSU: 650 W or higher

The Gigabyte GeForce RTX 5060 Ti EAGLE OC offers a strong balance of performance, cooling, and size. Its 16 GB GDDR7 memory, DLSS 4, advanced ray tracing, and efficient WINDFORCE cooling make it an excellent choice for gamers seeking smooth 1440p performance in a compact package. The shorter design facilitates installation in smaller cases while maintaining the full performance of the RTX 5060 Ti series.
