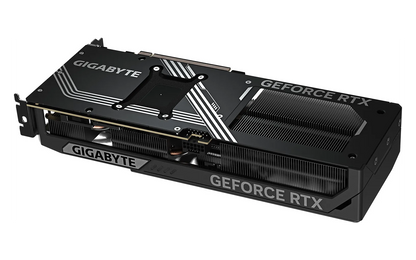

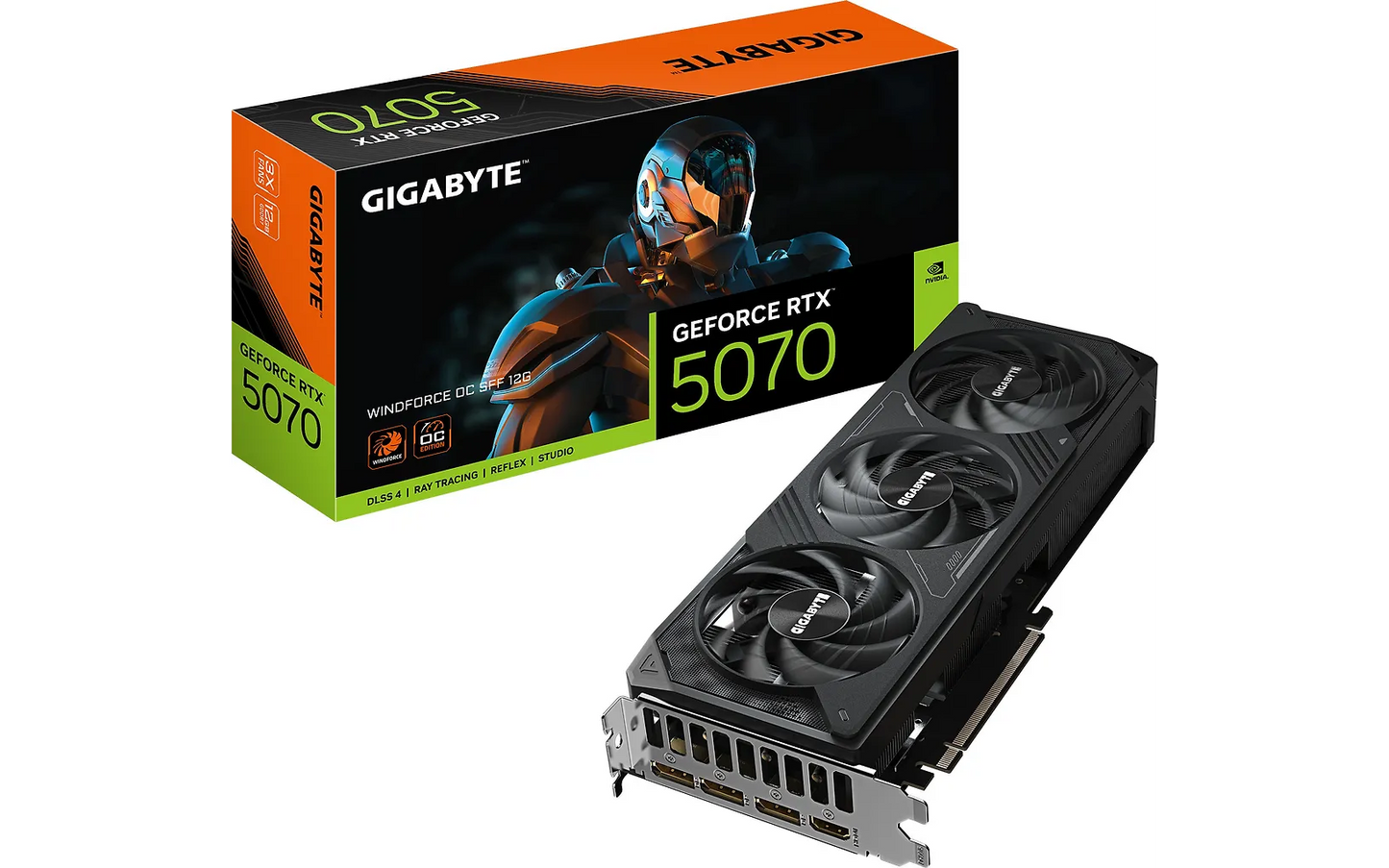

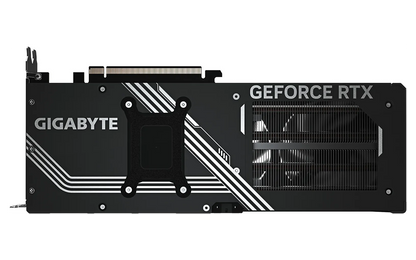

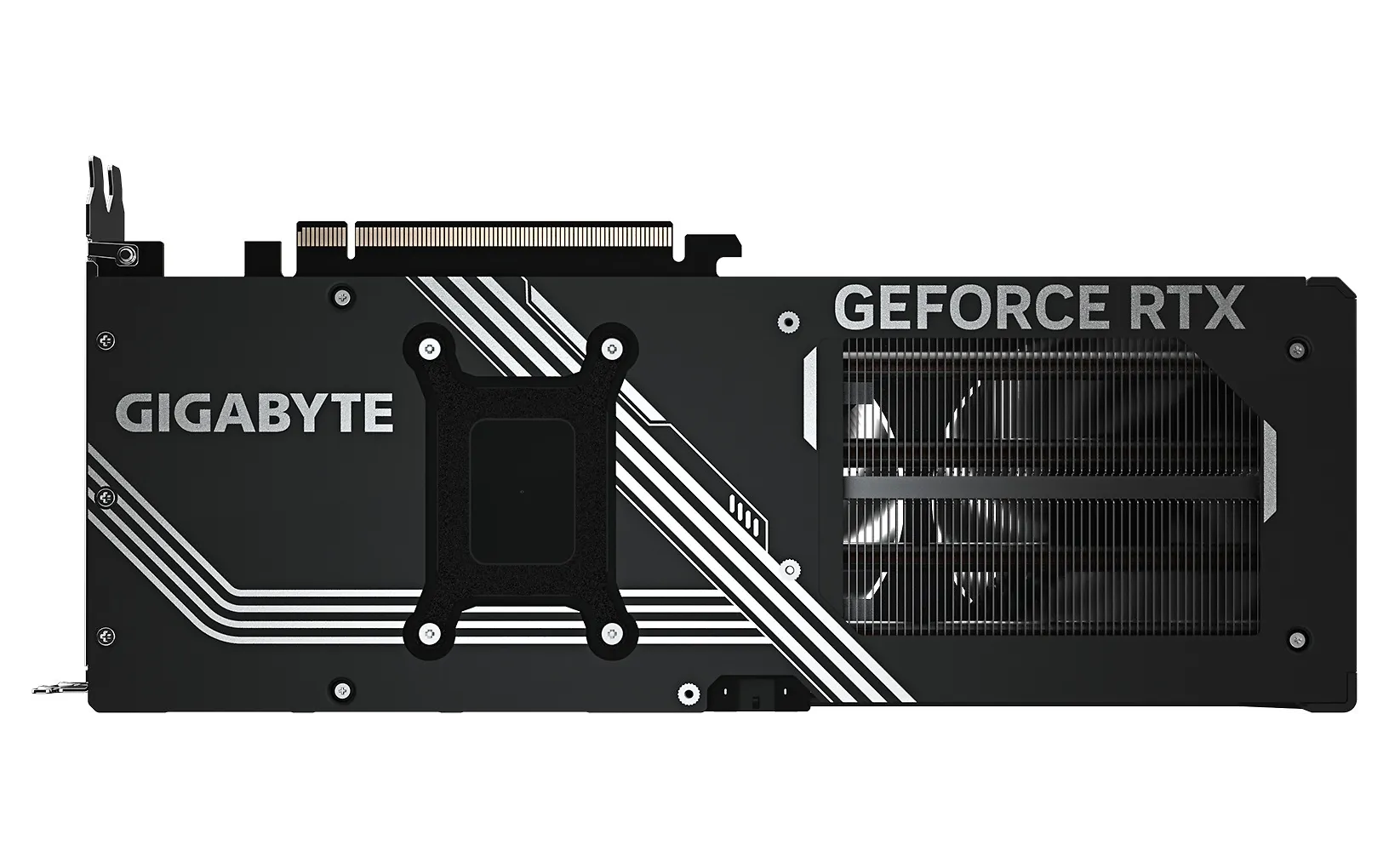

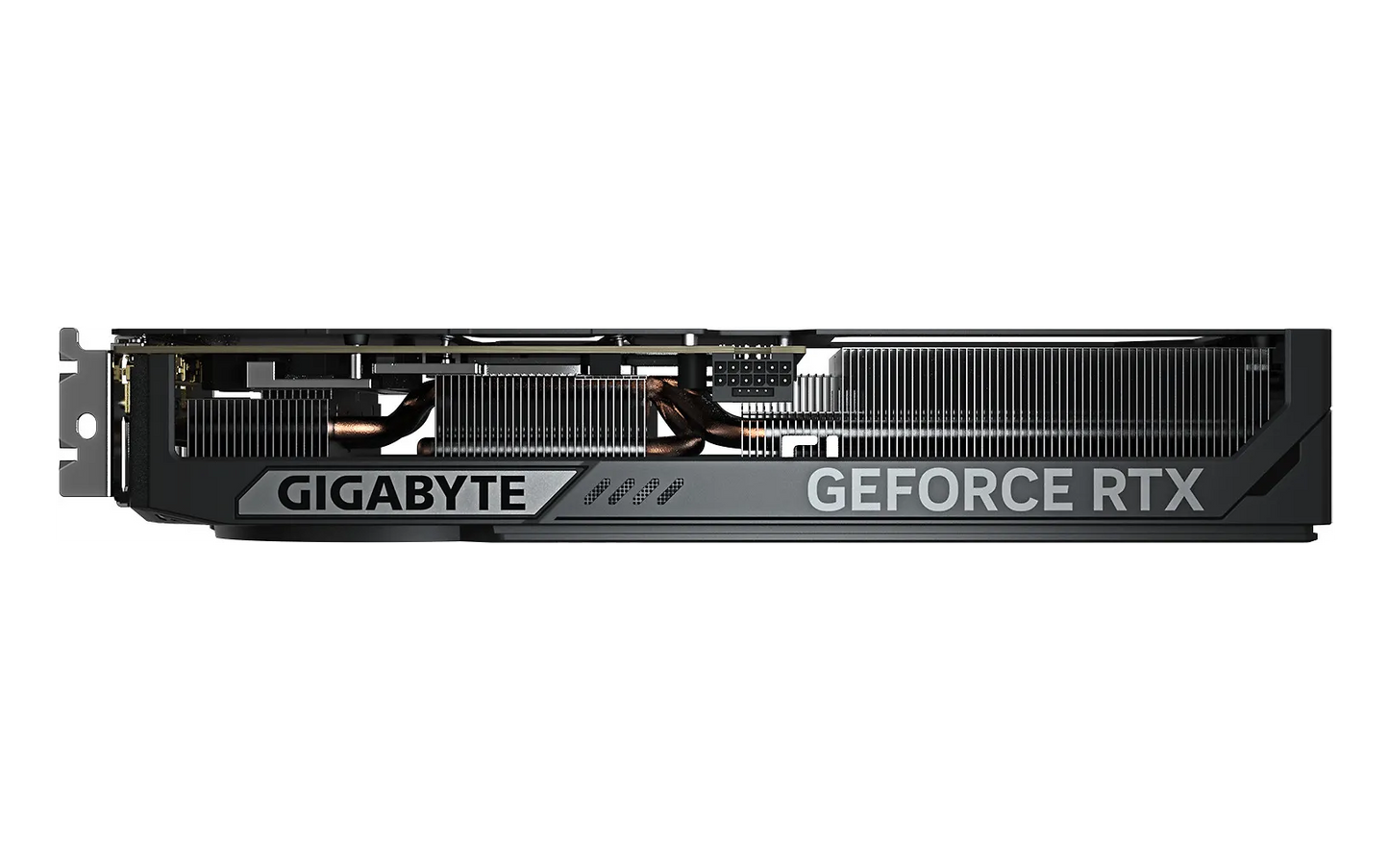

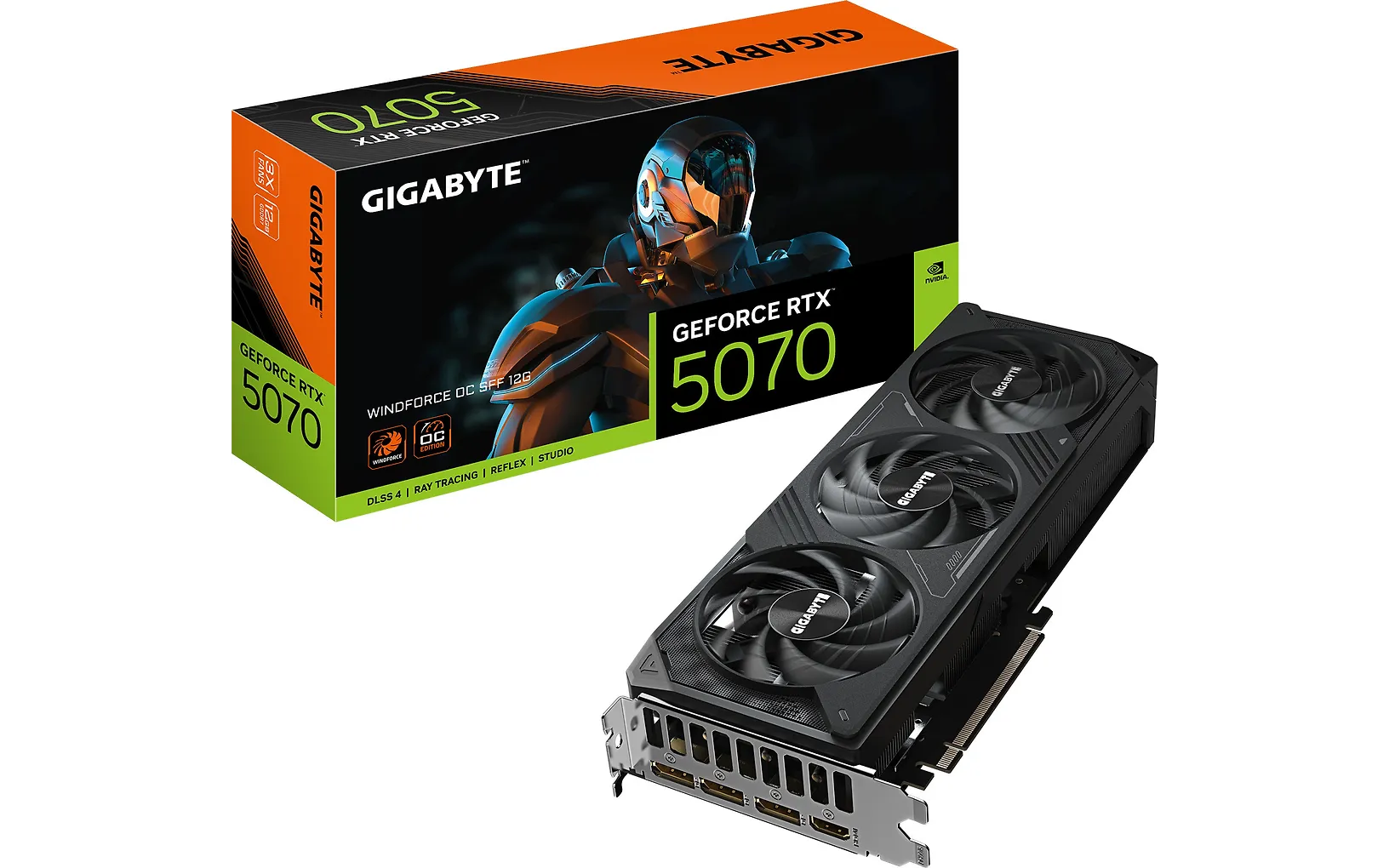

GIGABYTE GEFORCE RTX 5070 WINDFORCE OC SFF 12G GRAPHICS CARD

The Gigabyte GeForce RTX 5070 WINDFORCE OC SFF 12G is a powerful graphics card based on the NVIDIA Blackwell architecture, specifically designed for 1440p gaming, content creation, and AI-powered applications. Its SFF (Small Form Factor) compatible design enables top-tier performance even in compact PC cases. Factory overclocking and efficient WINDFORCE cooling ensure stable and quiet operation.

Technical Specifications

Graphics Processing Unit: NVIDIA GeForce RTX 5070
Architecture: NVIDIA Blackwell
Video Memory: 12 GB GDDR7
CUDA Cores: 6,144
Memory Bus: 192-bit
Memory Speed: 28 Gbps
Memory Bandwidth: 672 GB/s
Interface: PCI Express 5.0 x16
Boost Clock: 2542 MHz
Tensor Cores: 5th Generation
RT Cores: 4th Generation

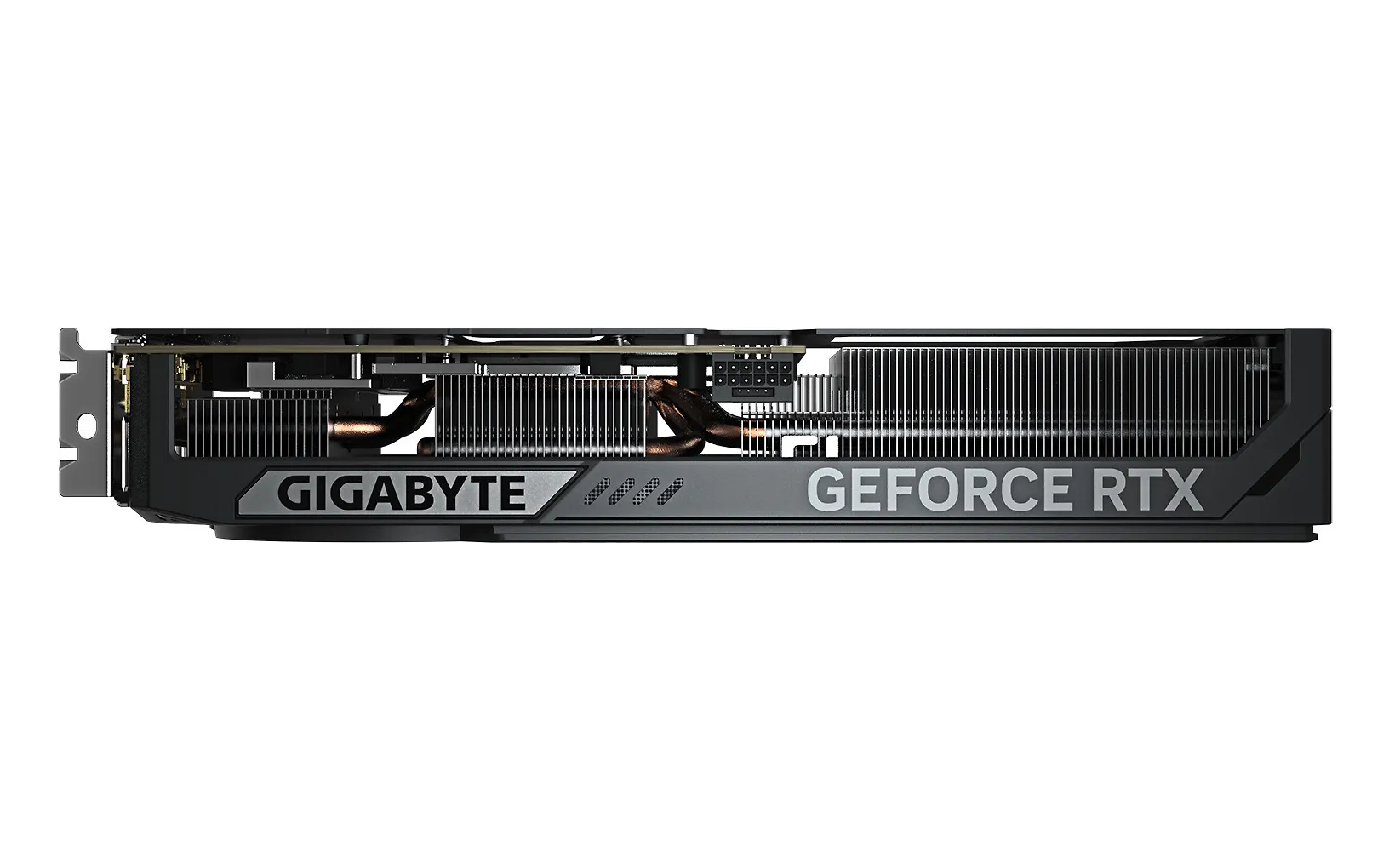

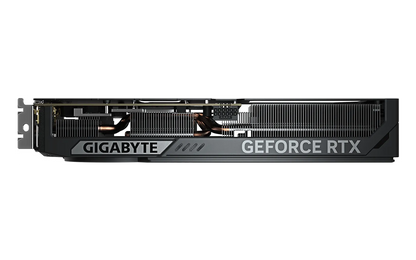

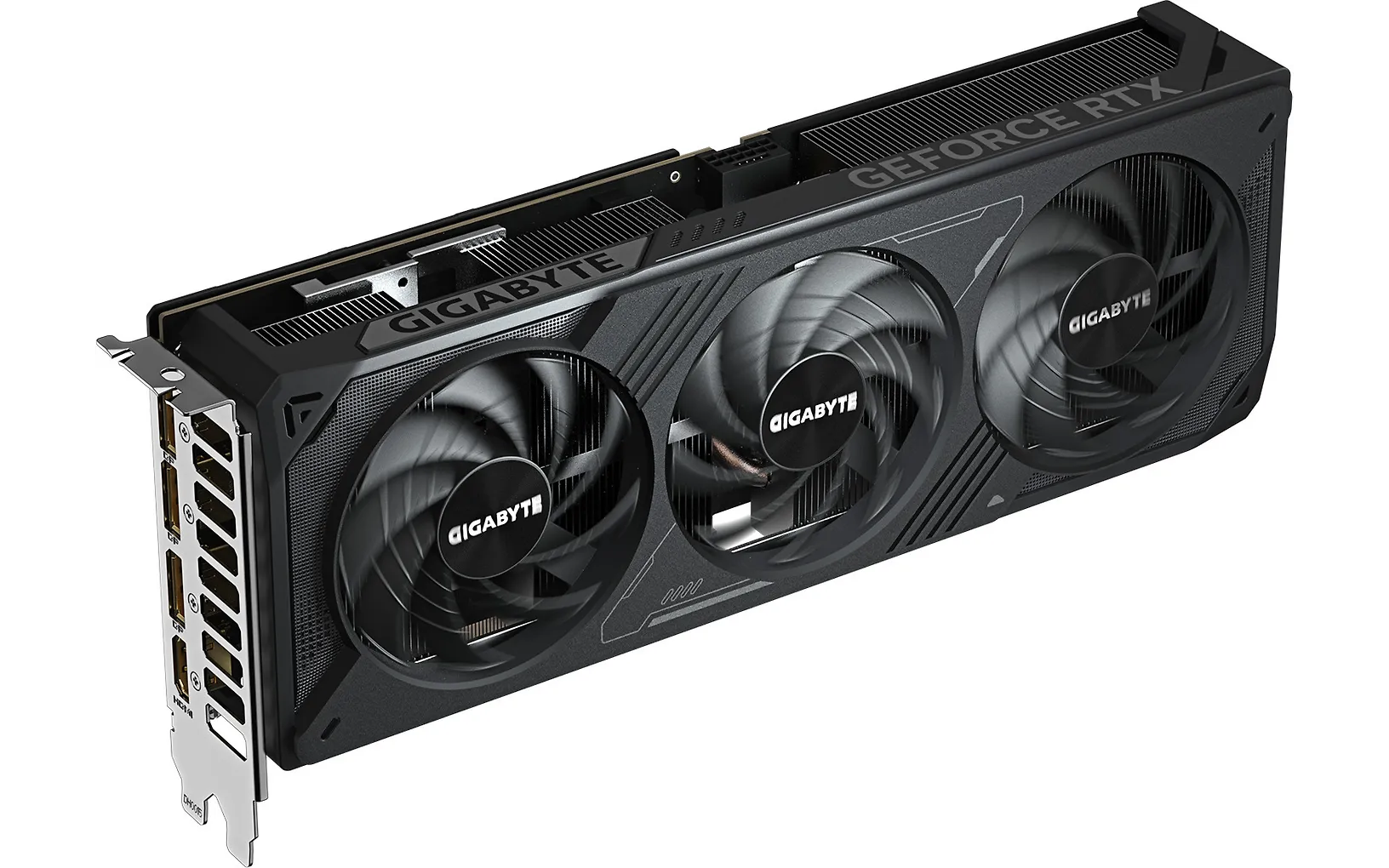

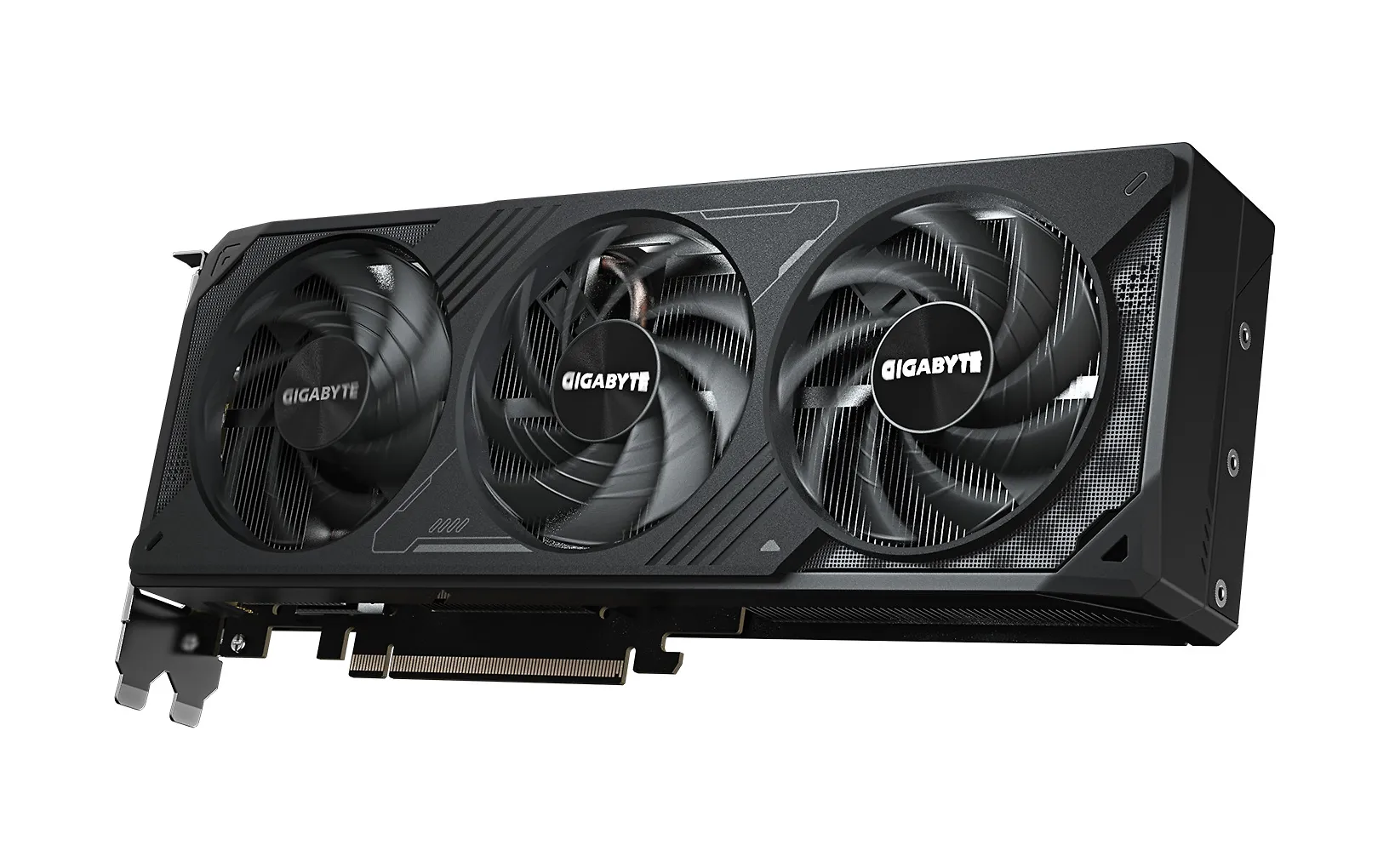

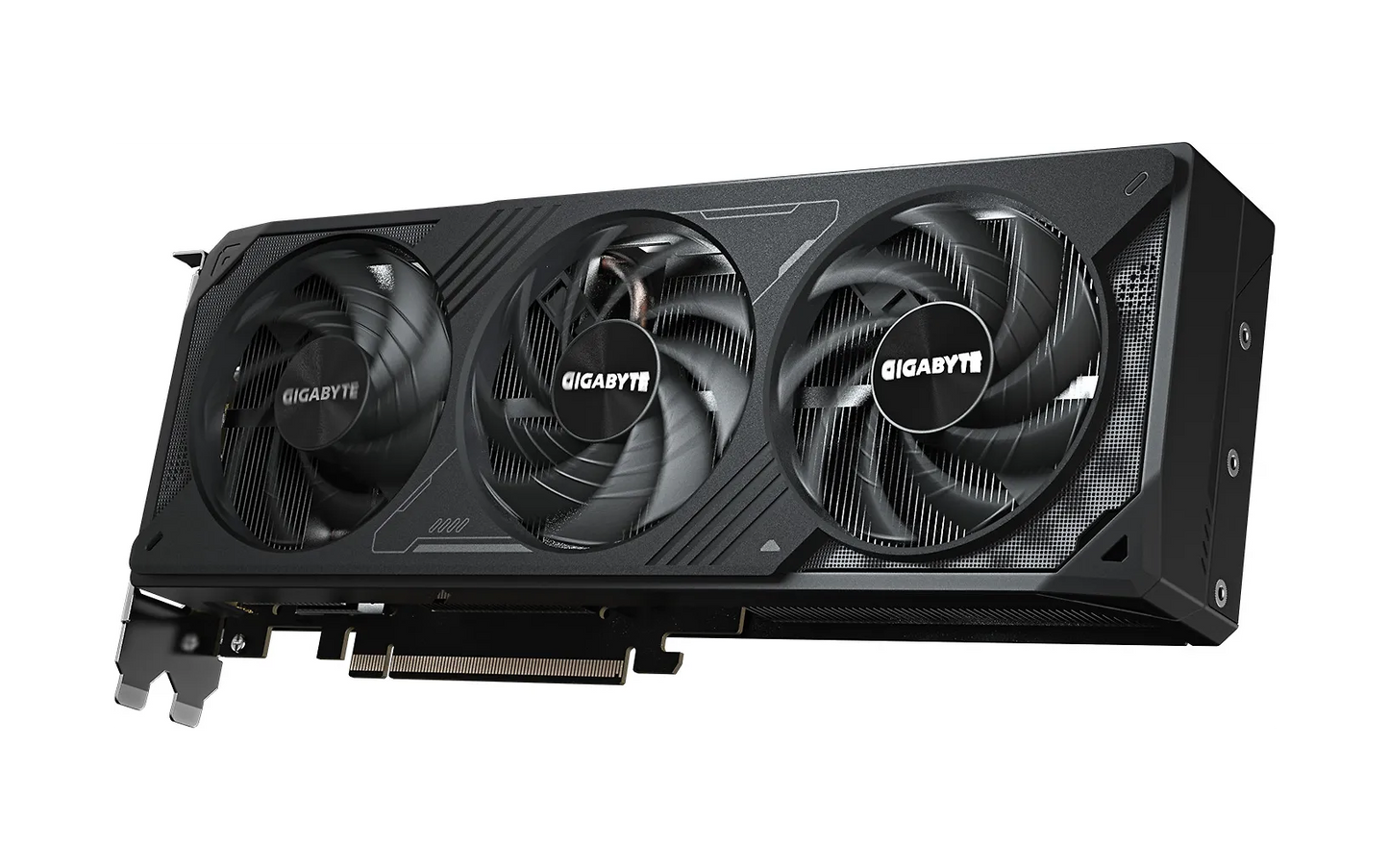

Cooling: WINDFORCE Cooling System, Three Hawk Fans
Dual BIOS: Performance / Silent

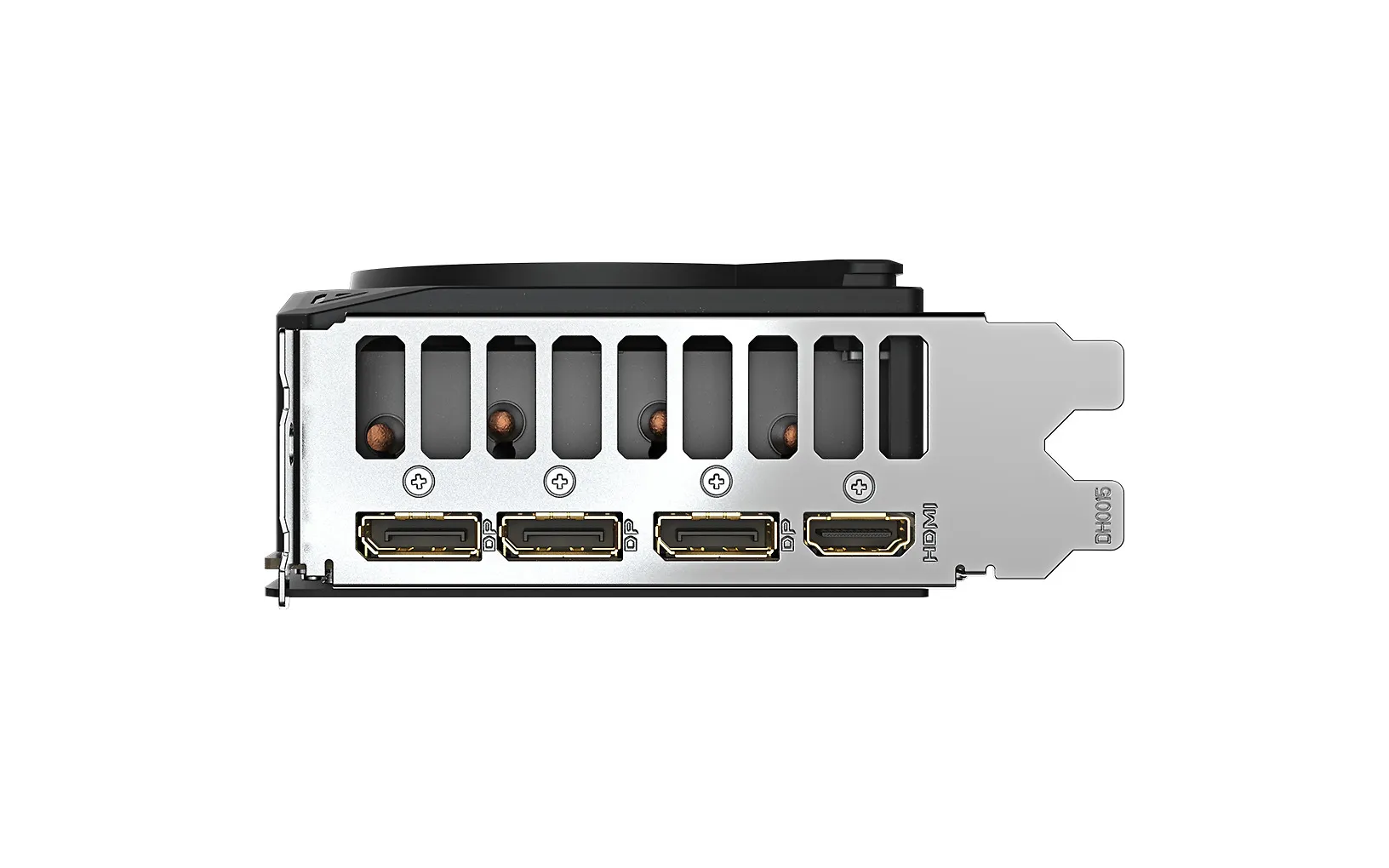

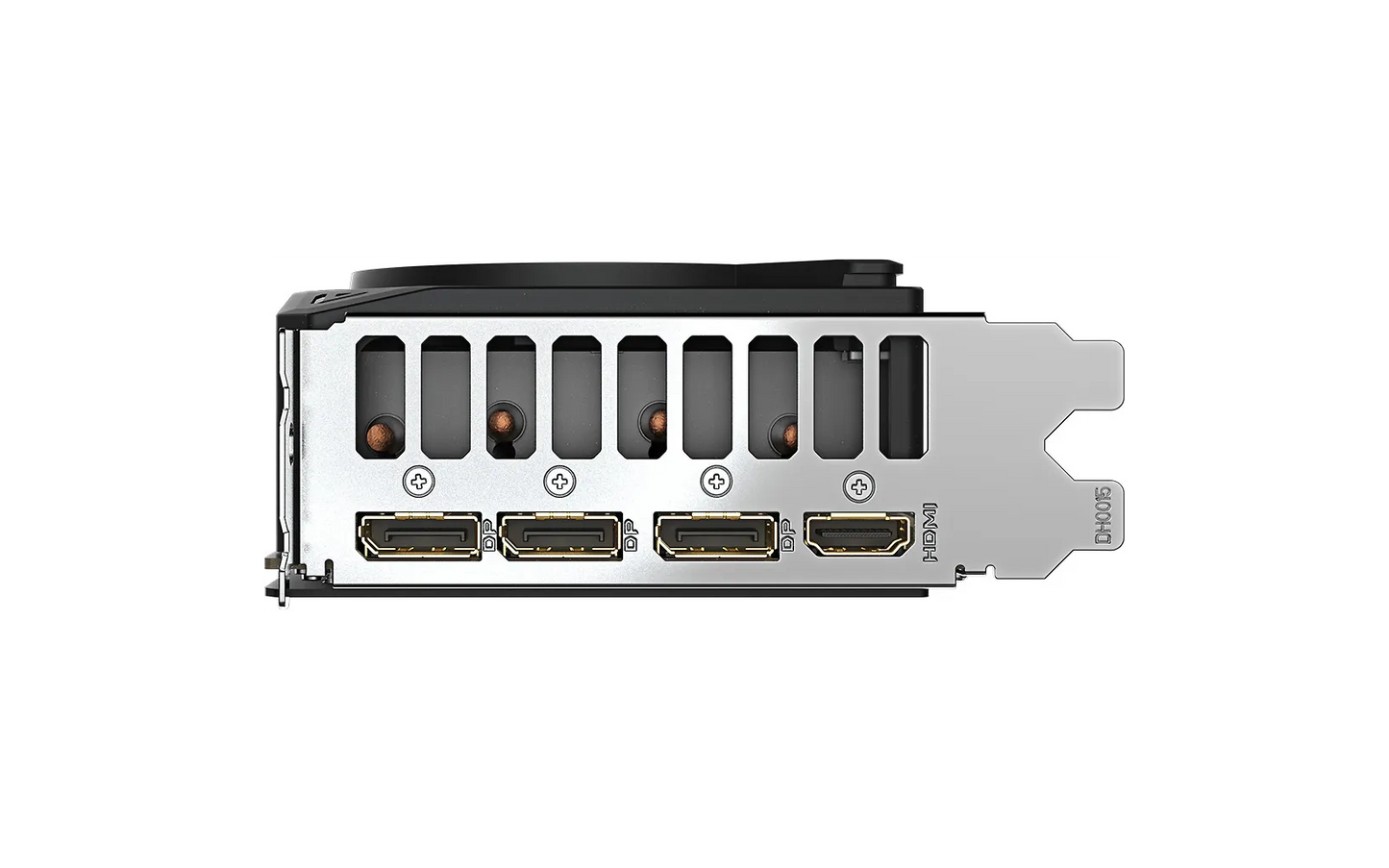

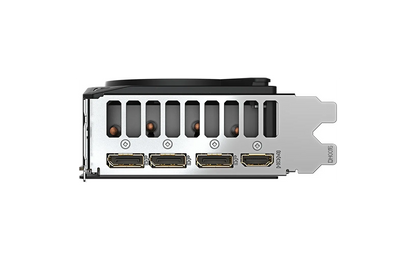

Display Outputs: 3 × DisplayPort 2.1b, 1 × HDMI 2.1b
Maximum Resolution: 7680 × 4320 (8K)
DirectX Support: DirectX 12 Ultimate
OpenGL Support: OpenGL 4.6
DLSS Support: NVIDIA DLSS 4
NVIDIA Reflex 2: Yes

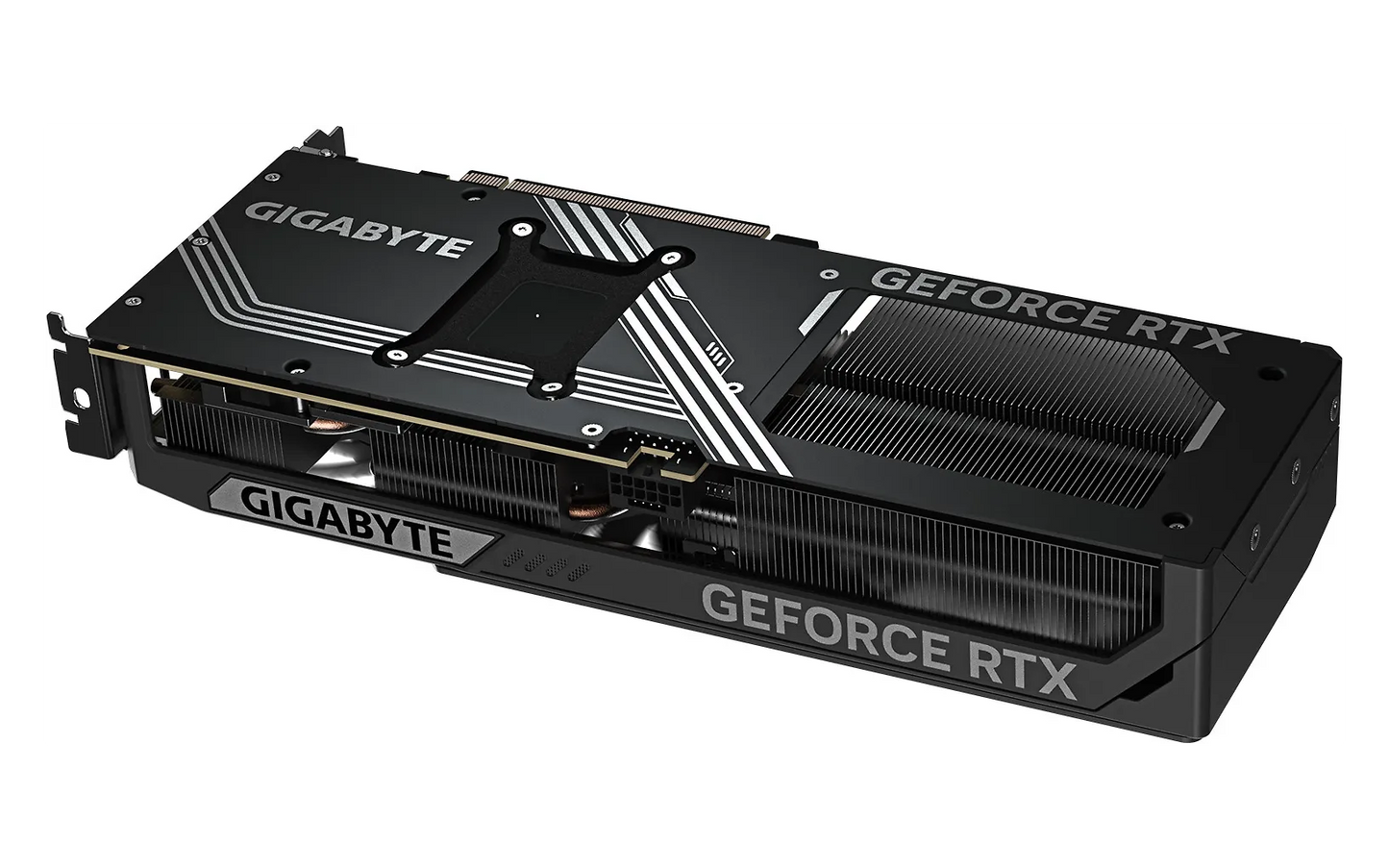

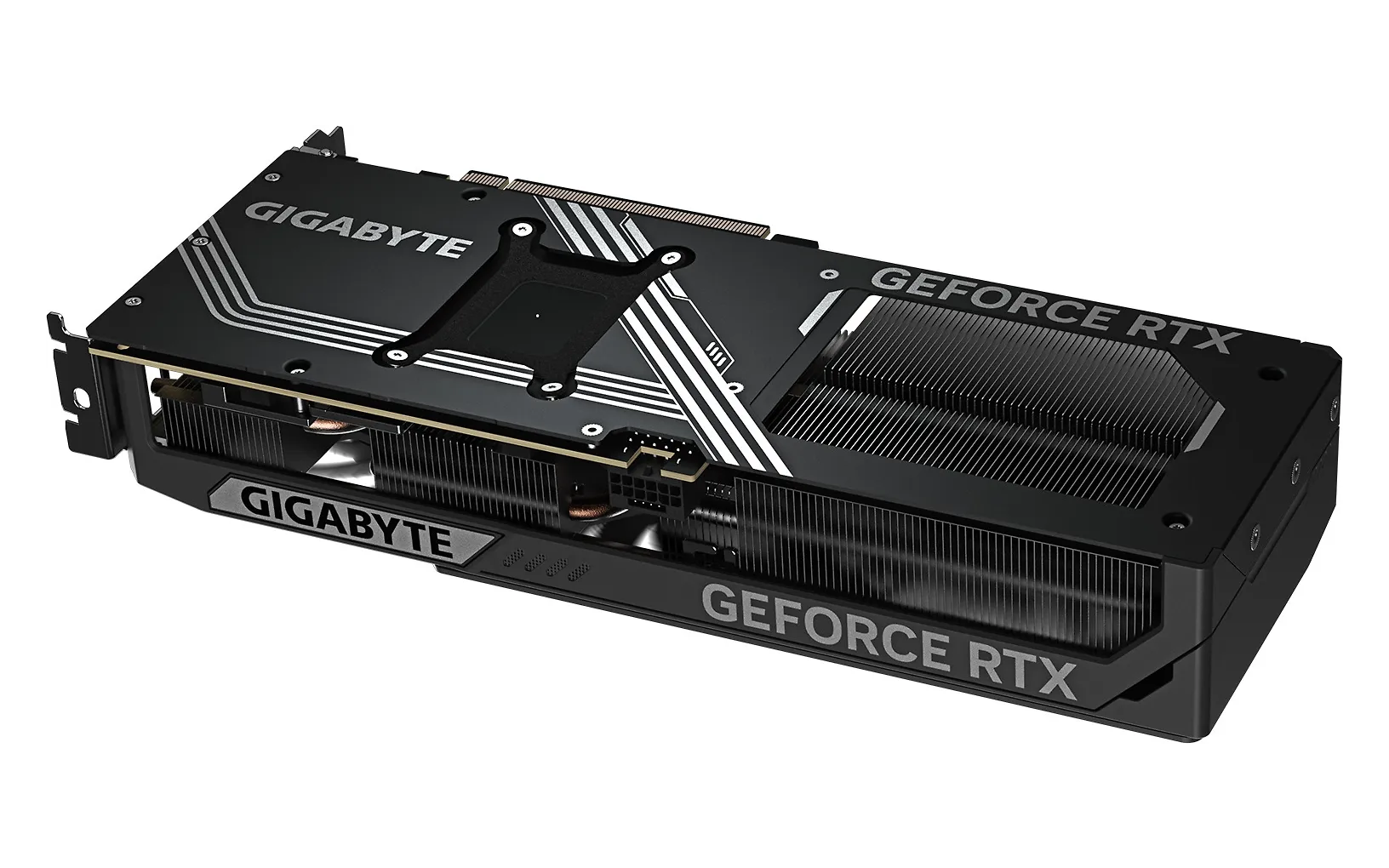

Power Connector: 1 × 16-pin (12V-2x6)
Total Graphics Power (TGP): approximately 250 W
Card Slots: approximately 2.5-slot
SFF Compatibility: Yes (Small Form Factor Ready)
Card Length: approximately 282 mm
Recommended PSU: 650 W or higher

The Gigabyte GeForce RTX 5070 WINDFORCE OC SFF 12G offers an excellent combination of performance, energy efficiency, and compact size. Its 12 GB GDDR7 memory, 6,144 CUDA cores, DLSS 4, and advanced ray tracing enable smooth 1440p gaming at high graphics settings and strong performance in content creation. The SFF design makes this card an excellent choice for powerful yet space-saving builds that aim to leverage the latest generation of NVIDIA technologies without compromising on performance.
