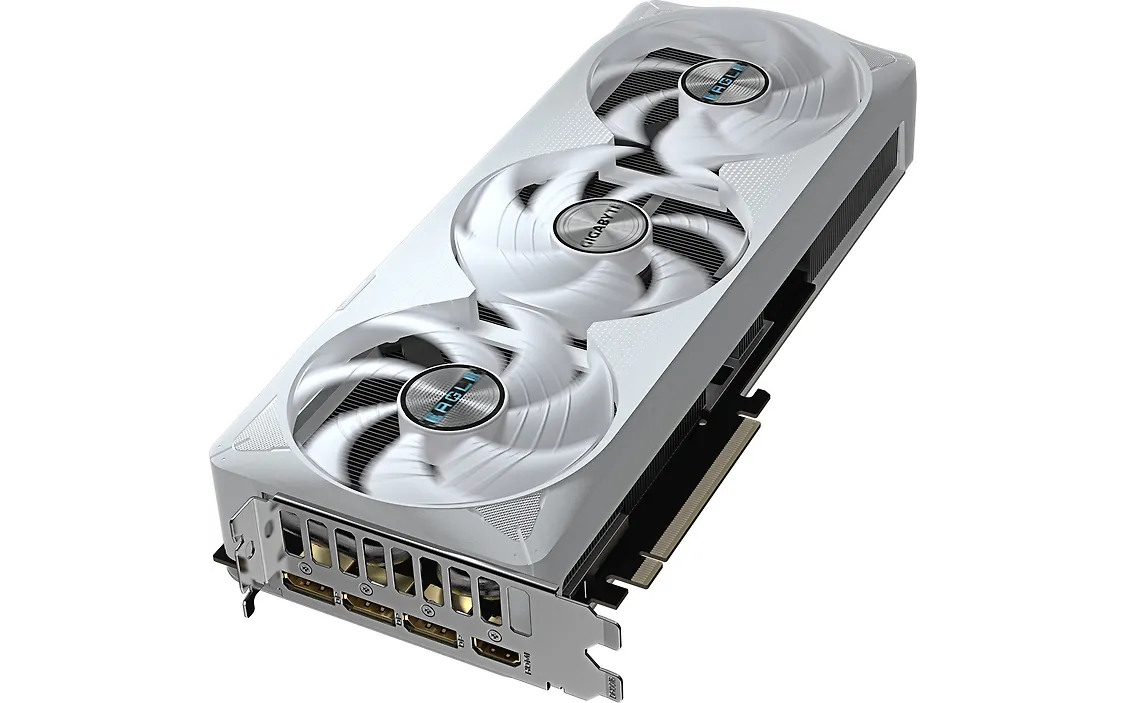

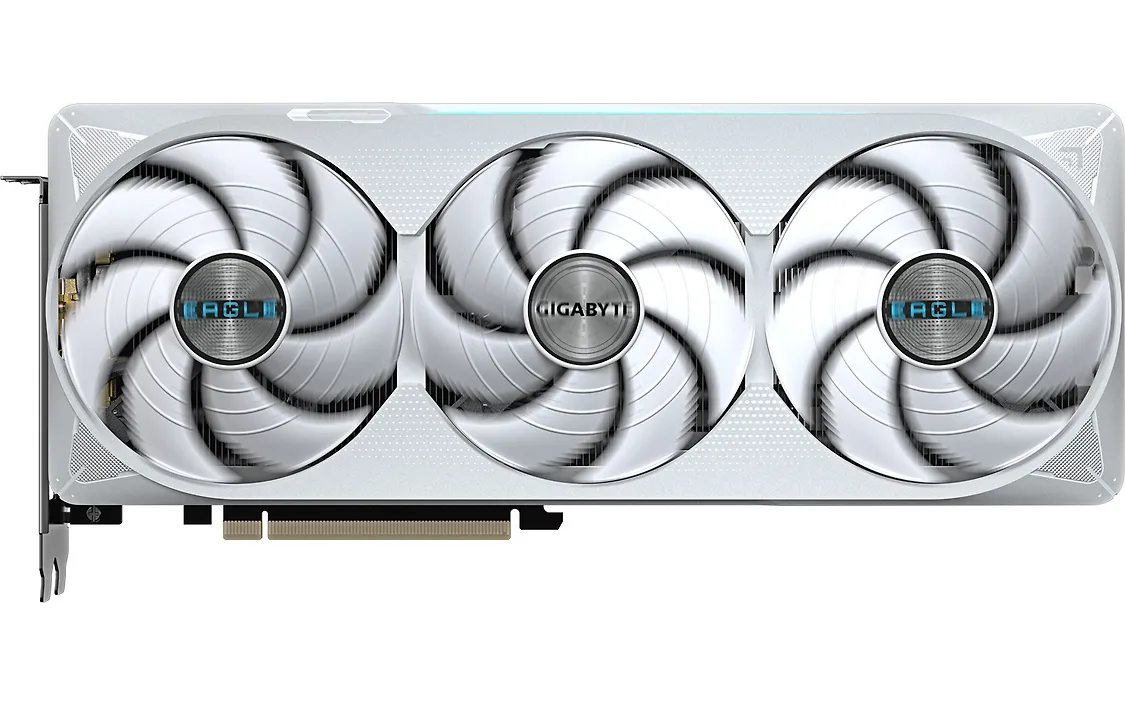

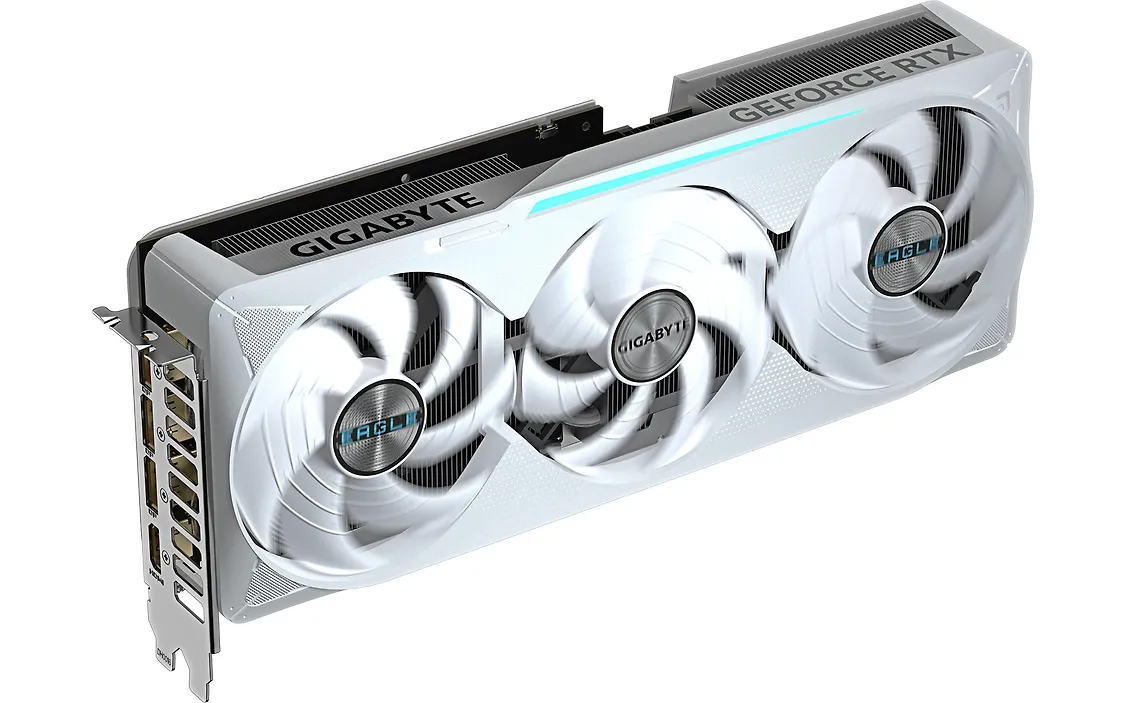

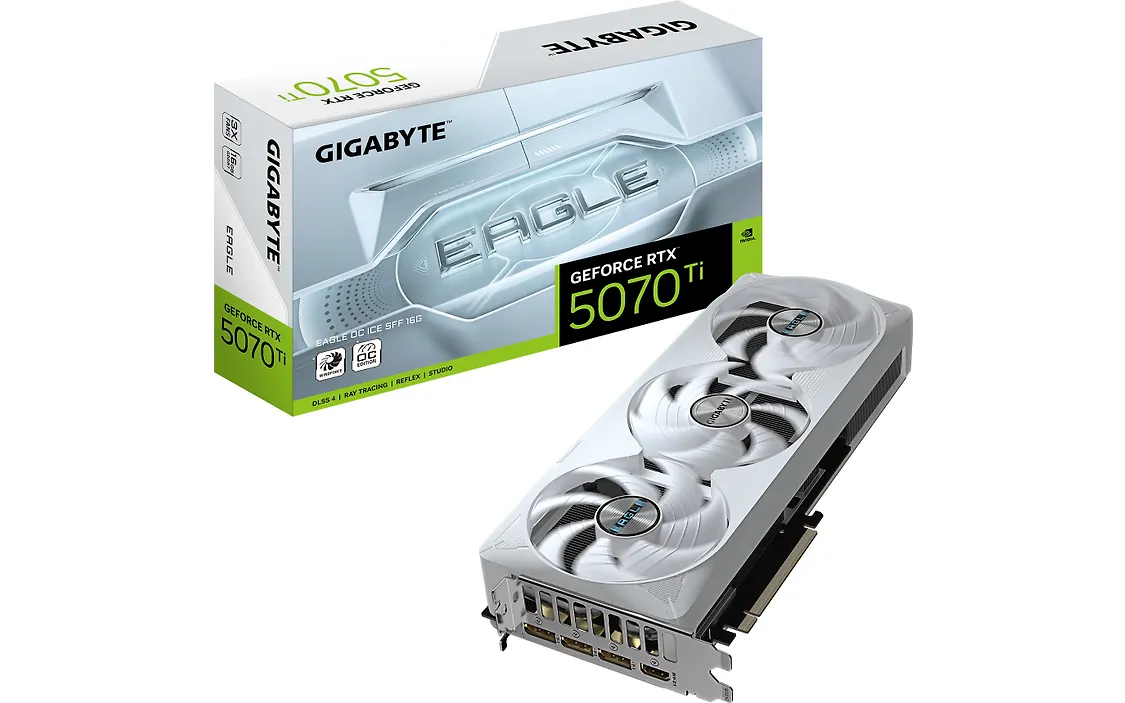

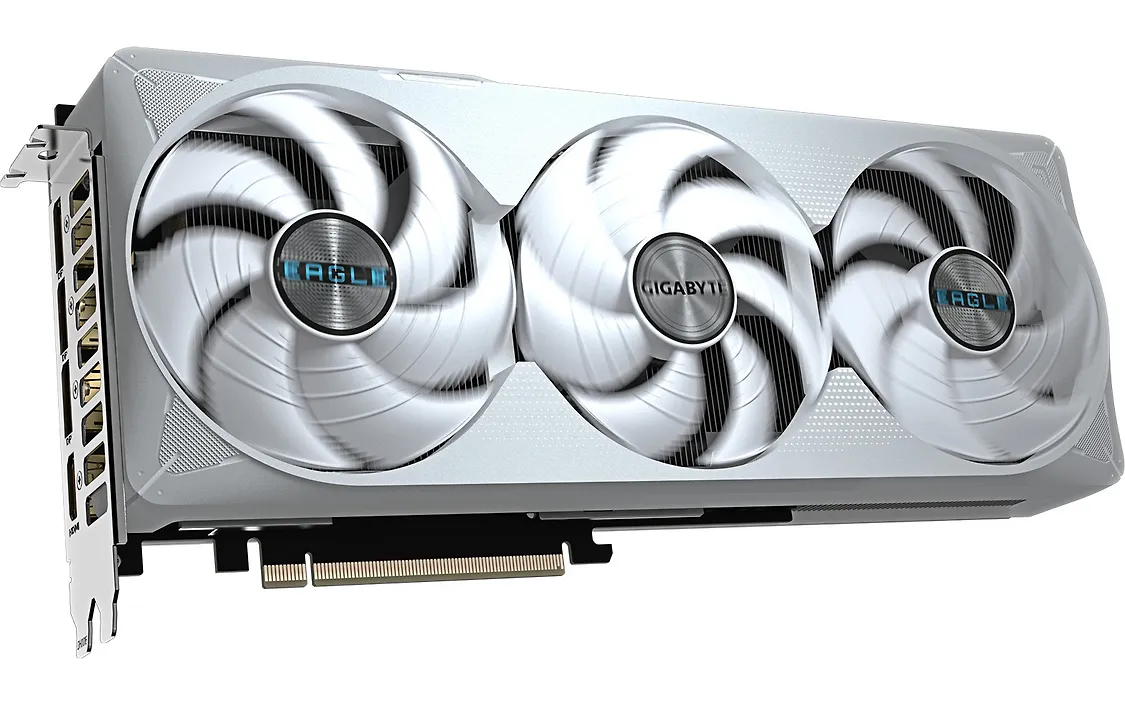

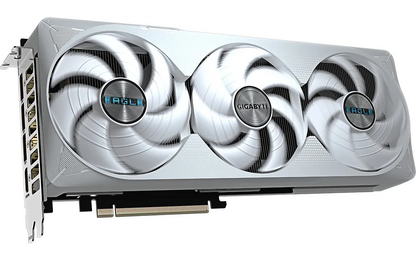

GIGABYTE GEFORCE RTX 5070 TI EAGLE OC SFF 16G GRAPHICS CARD

The Gigabyte GeForce RTX 5070 Ti EAGLE OC SFF 16G is a powerful graphics card based on the NVIDIA Blackwell architecture, designed for demanding 1440p and 4K gaming as well as content creation. The EAGLE OC SFF model combines a compact SFF design, factory overclocking, RGB lighting, and efficient WINDFORCE cooling. It is ideally suited for high-performance yet space-efficient builds.

Technical Specifications

Graphics Chip: NVIDIA GeForce RTX 5070 Ti
Architecture: NVIDIA Blackwell
Video Memory: 16 GB GDDR7
CUDA Cores: 8,960
Memory Bus: 256-bit
Memory Speed: 28 Gbps
Memory Bandwidth: 896 GB/s
Interface: PCI Express 5.0 x16
Boost Clock: 2542 MHz
Tensor Cores: 5th Gen
RT Cores: 4th Gen
Cooling: WINDFORCE Cooling System, three Hawk fans
Dual BIOS: Performance / Silent
RGB Lighting: Yes
Display Connectors: 3 × DisplayPort 2.1b, 1 × HDMI 2.1b
Maximum Resolution: 7680 × 4320 (8K)
DirectX Support: DirectX 12 Ultimate
OpenGL Support: OpenGL 4.6
DLSS Support: NVIDIA DLSS 4
NVIDIA Reflex 2: Yes
Power Connector: 1 × 16-pin (12V-2x6)
Power Consumption (TGP): 300 W
Card Slots: approx. 2.5–3-slot
Dimensions: 304 × 126 × 50 mm
SFF Compatibility: Yes (Small Form Factor Ready)
Recommended PSU: 750 W or higher

The Gigabyte GeForce RTX 5070 Ti EAGLE OC SFF 16G offers excellent performance for 1440p and 4K gaming. Its 16 GB GDDR7 memory, DLSS 4, advanced ray tracing, and efficient WINDFORCE cooling make it an attractive option for gamers seeking high performance in a slightly more compact size than the larger GAMING OC models. In terms of features, the EAGLE OC sits above the WINDFORCE model, offering RGB lighting and a more striking design, while retaining SFF compatibility.
