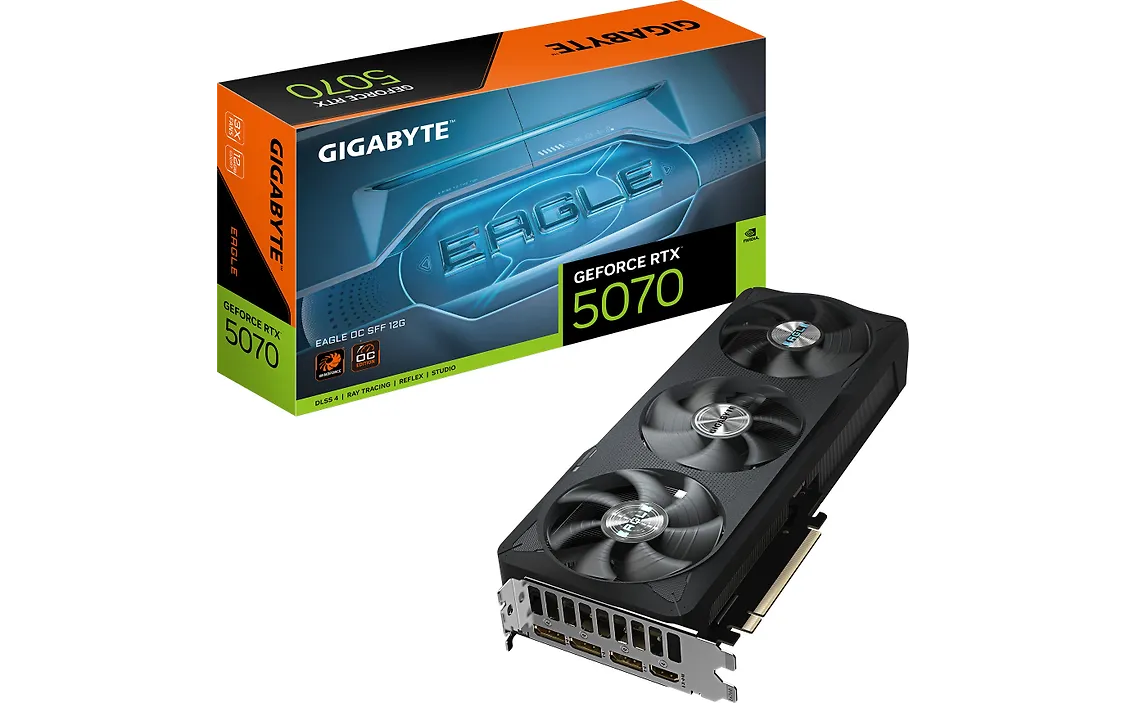

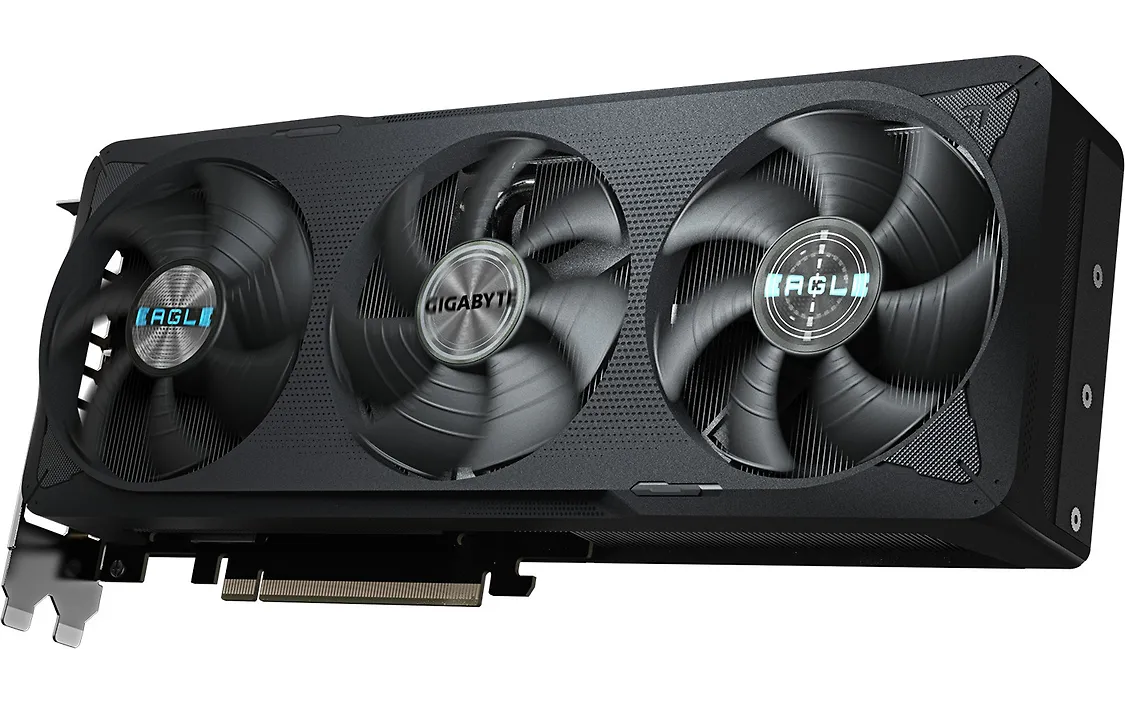

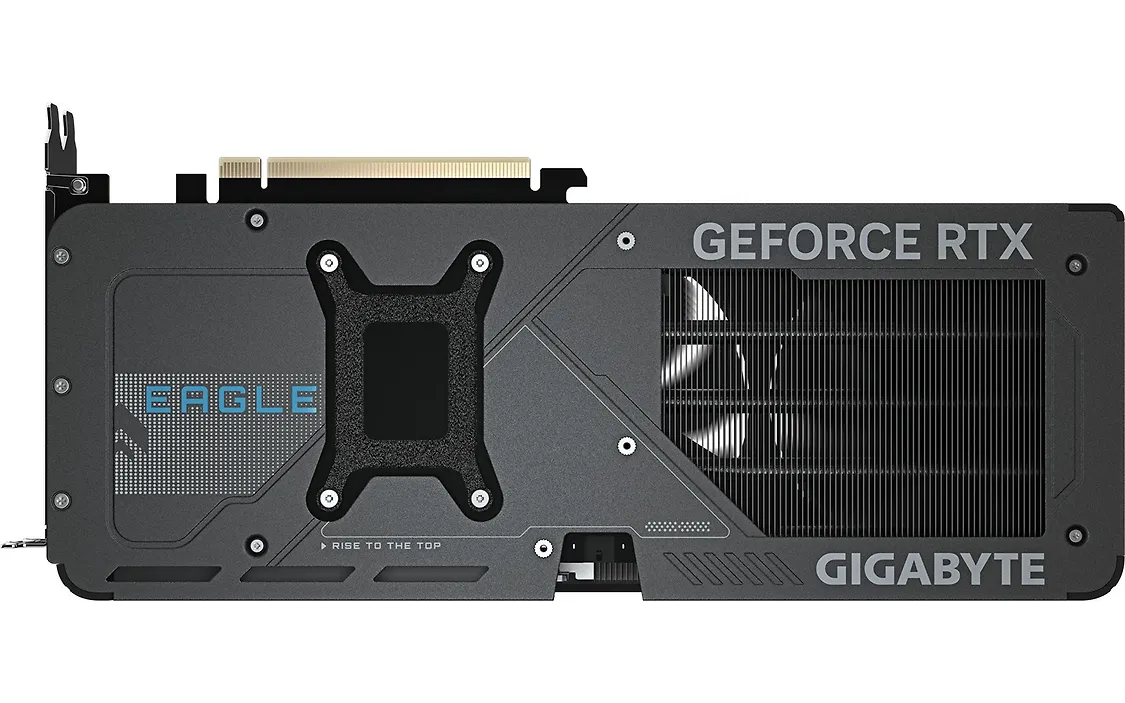

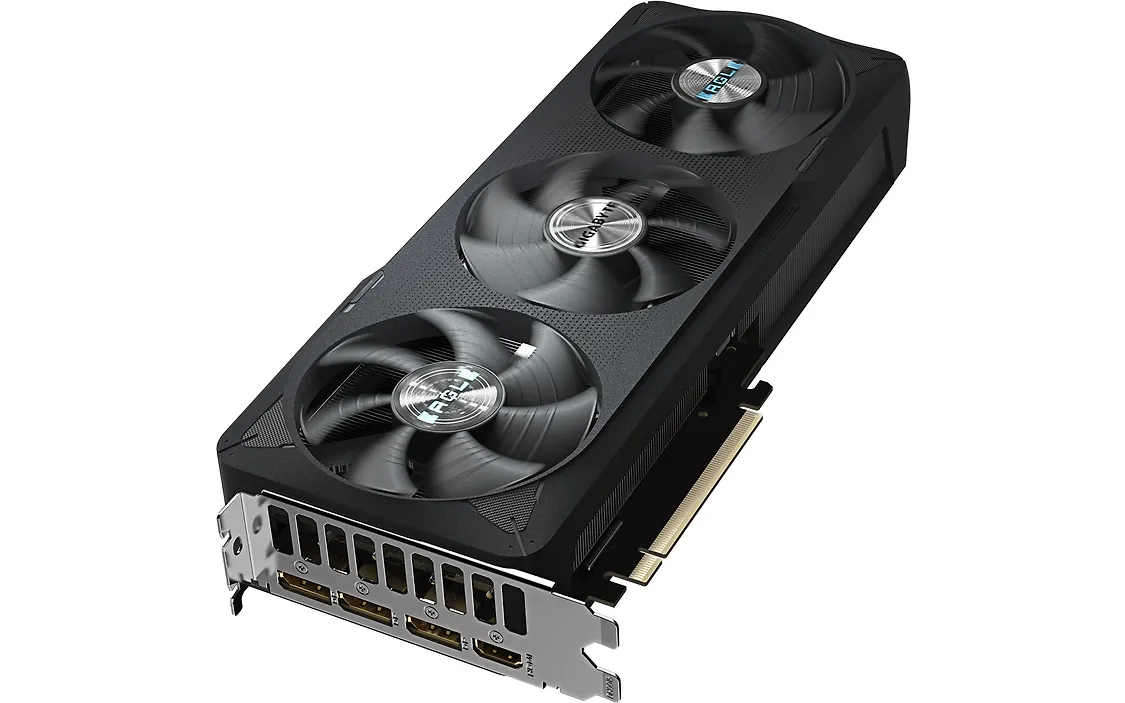

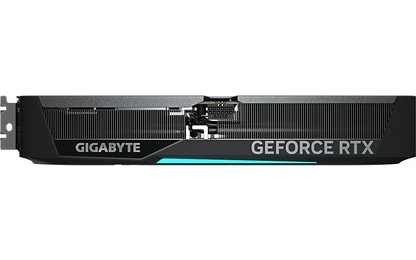

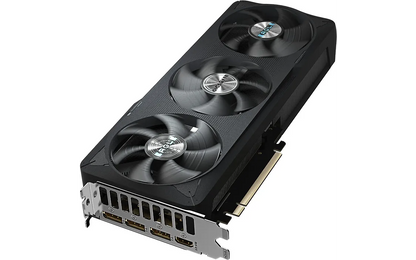

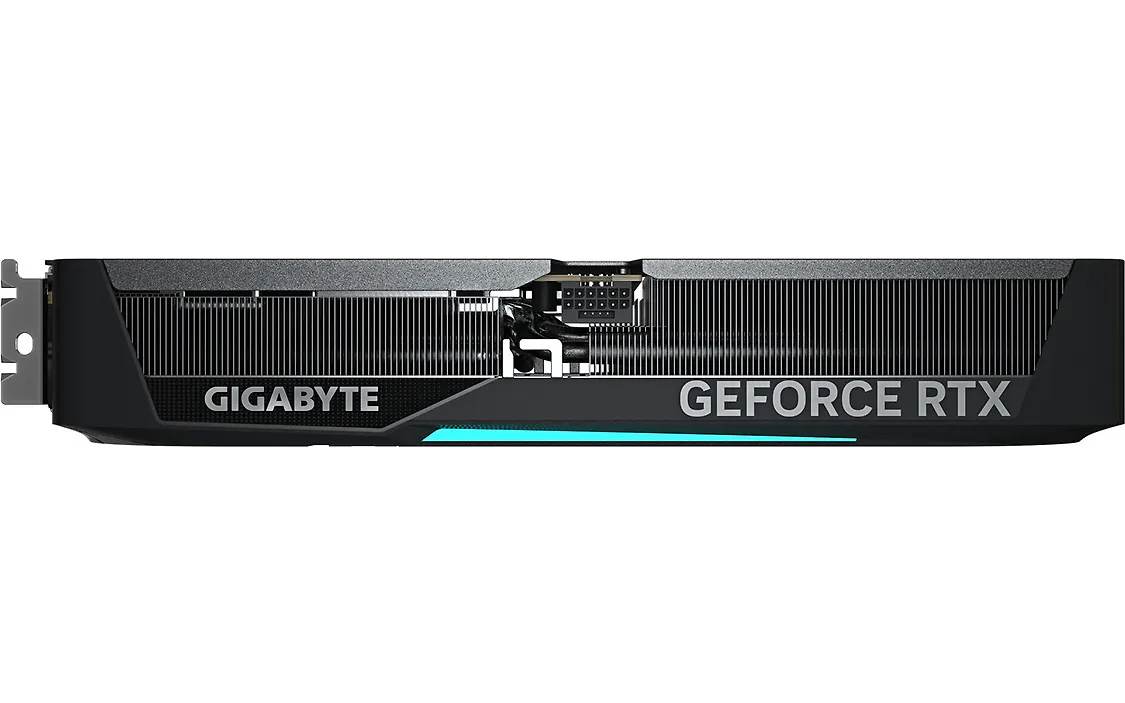

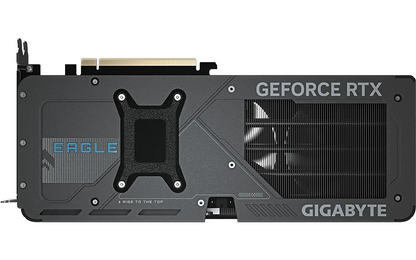

GIGABYTE GEFORCE RTX 5070 EAGLE OC SFF 12G GRAPHICS CARD

The Gigabyte GeForce RTX 5070 EAGLE OC SFF 12G is a high-performance graphics card based on the NVIDIA Blackwell architecture, specifically designed for 1440p gaming, content creation, and AI-powered applications. The EAGLE OC SFF model combines a compact design, factory overclocking, RGB lighting, and efficient WINDFORCE cooling, making it an excellent choice for smaller cases.

Technical Specifications

Graphics Processor: NVIDIA GeForce RTX 5070
Architecture: NVIDIA Blackwell
Video Memory: 12 GB GDDR7
CUDA Cores: 6,144
Memory Bus: 192-bit
Memory Speed: 28 Gbps
Memory Bandwidth: 672 GB/s
Interface: PCI Express 5.0 x16
Boost Clock: 2587 MHz
Tensor Cores: 5th Gen
RT Cores: 4th Gen

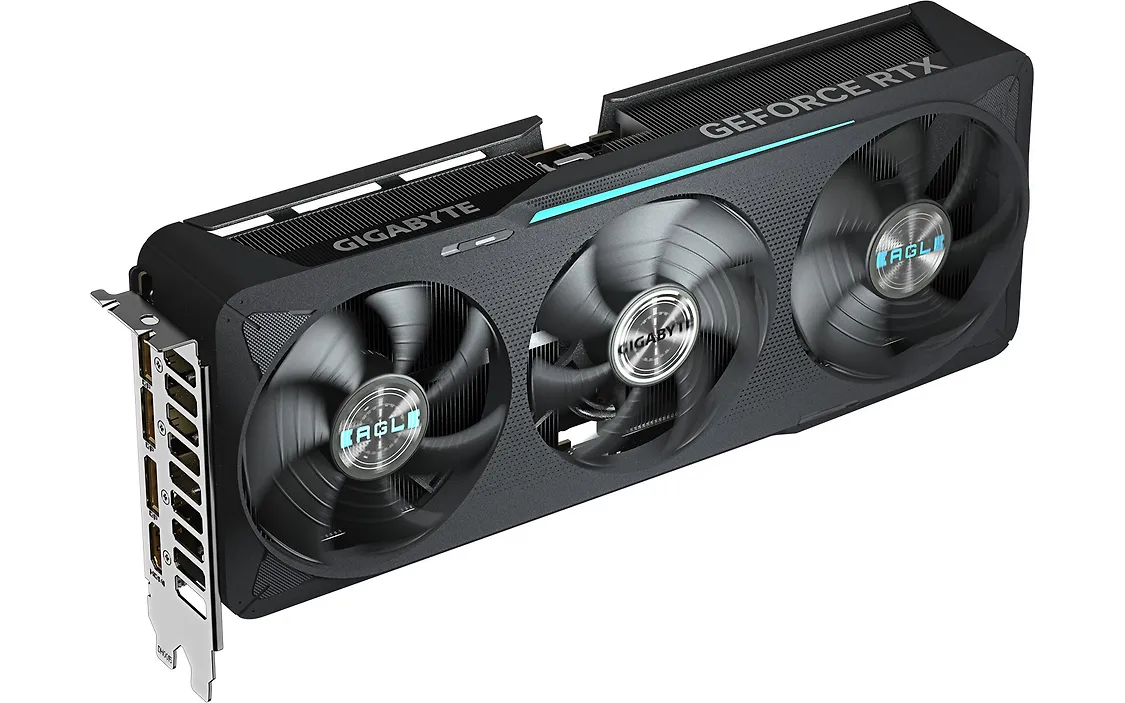

Cooling: WINDFORCE Cooling System, three Hawk fans
Dual BIOS: Performance / Silent
RGB Lighting: Yes

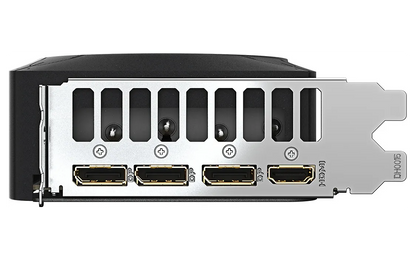

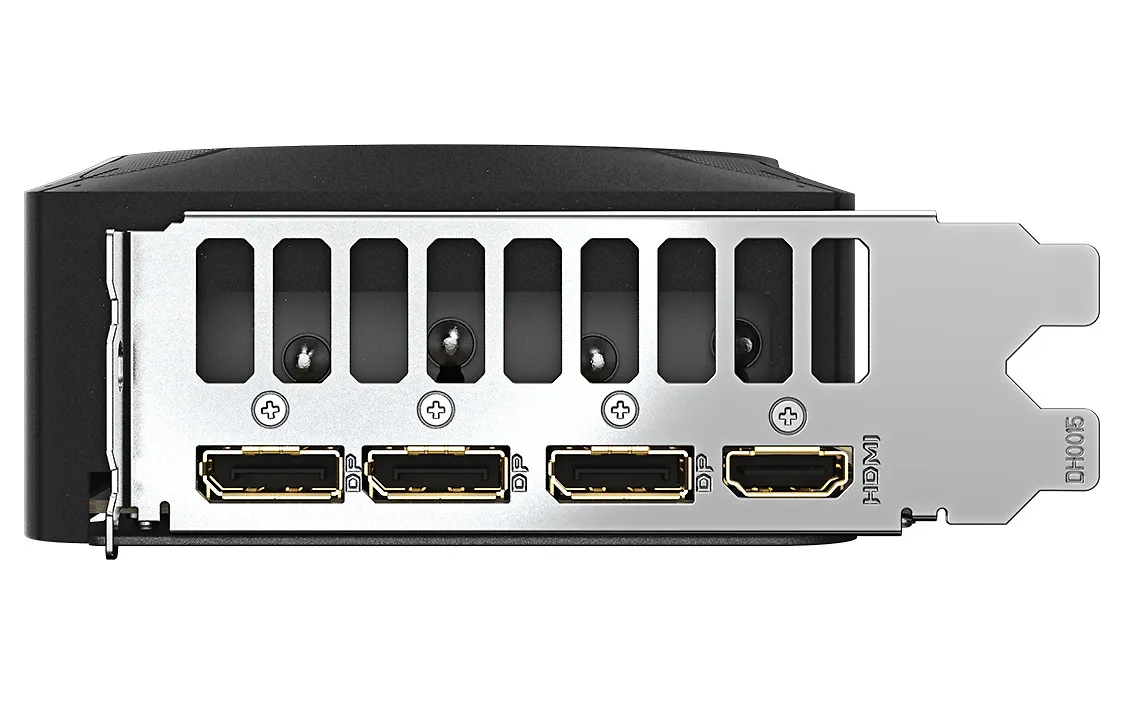

Display Outputs: 3 × DisplayPort 2.1b, 1 × HDMI 2.1b
Maximum Resolution: 7680 × 4320 (8K)
DirectX Support: DirectX 12 Ultimate
OpenGL Support: OpenGL 4.6
DLSS Support: NVIDIA DLSS 4
NVIDIA Reflex 2: Yes

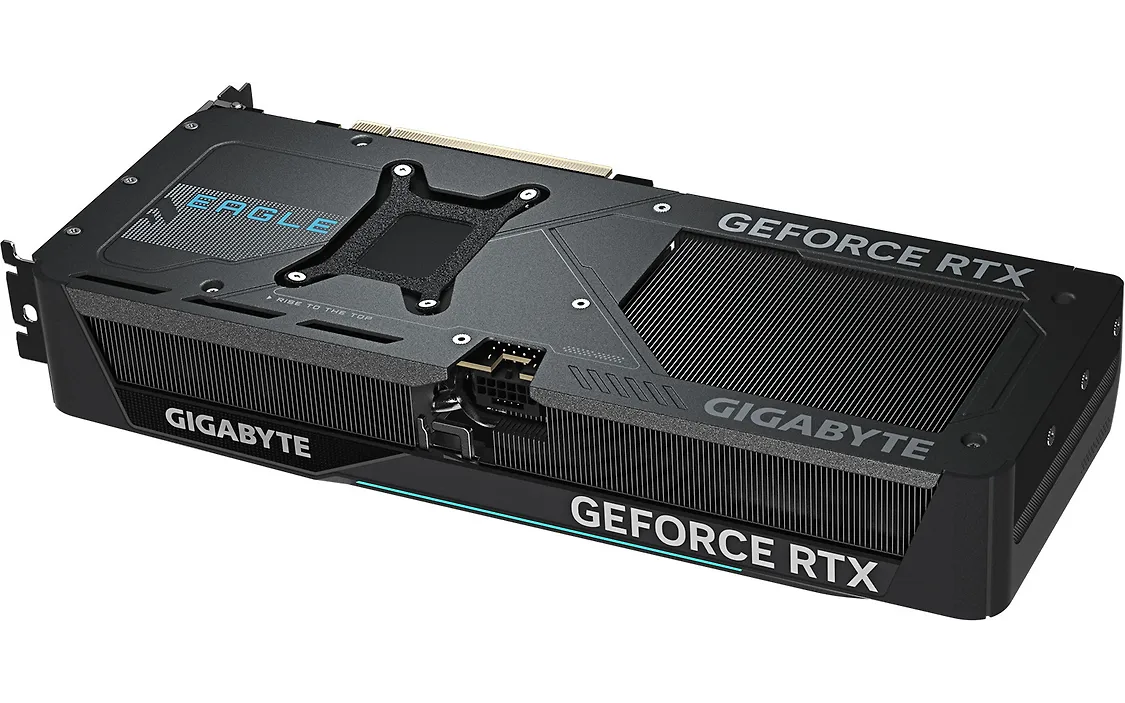

Power Connector: 1 × 16-pin (12V-2x6)
Total Graphics Power (TGP): approximately 250 W
Slot Count: approximately 2.5-slot
Dimensions: approximately 304 × 126 × 50 mm
SFF Compatibility: Yes (Small Form Factor Ready)
Recommended PSU: 650 W or higher

The Gigabyte GeForce RTX 5070 EAGLE OC SFF 12G offers excellent performance for 1440p gaming, strong ray tracing performance, and the latest DLSS 4 and Reflex 2 features. The EAGLE OC is positioned above the WINDFORCE model, offering a more striking appearance, RGB lighting, and a slightly higher factory overclock while maintaining a compact SFF design. It is an excellent choice for users who want a powerful RTX 5070 card for a smaller or medium-sized build.
