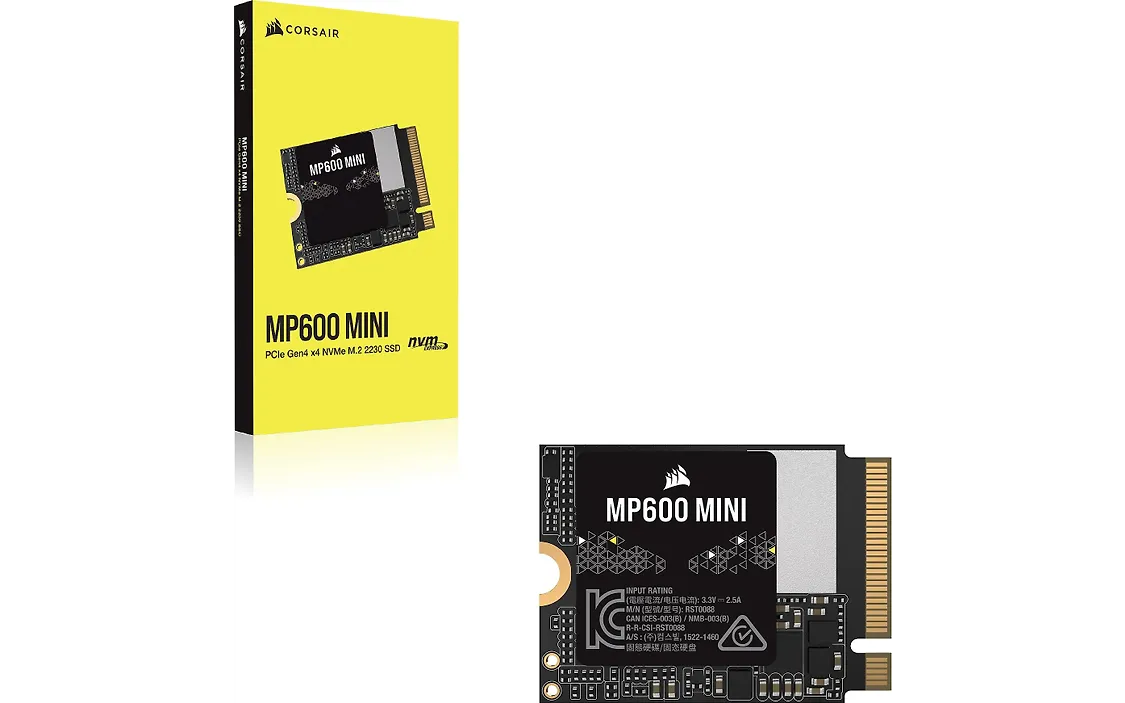

CORSAIR MP600 MINI 2 TB GEN4 PCIe x4 NVME M.2 2230 SSD - HARD DRIVE

Corsair MP600 MINI 2 TB is a compact M.2 2230 PCIe 4.0 NVMe SSD, specifically designed for handheld consoles, ultrabooks, and other small-form-factor devices. Its small physical size, combined with high capacity and performance, makes it an excellent upgrade option for devices such as Steam Deck, ASUS ROG Ally, and Microsoft Surface.

Technical Specifications

Product Series: Corsair MP600 MINI
Storage Capacity: 2 TB
Drive Type: SSD
Form Factor: M.2 2230
Interface: PCI Express 4.0 x4 NVMe
NVMe Version: NVMe 1.4
Memory Type: 3D TLC NAND
Controller: Phison PS5021-E21T
DRAM Cache: No (HMB Support)
Cooling: No separate heatsink
Sequential Read Speed: up to 5,000 MB/s
Sequential Write Speed: up to 4,800 MB/s
Random Read (4K): up to 650,000 IOPS
Random Write (4K): up to 900,000 IOPS
Endurance (TBW): 1,200 TB
MTBF: 1.5 million hours
TRIM Support: Yes
S.M.A.R.T. Support: Yes
AES 256-bit Encryption: Yes
Microsoft DirectStorage Support: Yes
Compatibility: Steam Deck, ASUS ROG Ally, Microsoft Surface, ultrabooks, and other M.2 2230 compatible devices
Operating Temperature: 0–70 °C
Dimensions: 30 × 22 × 2.3 mm
Weight: approx. 3 g
Warranty: 5 years

The Corsair MP600 MINI 2 TB offers high storage capacity in a compact 2230 size, high PCIe 4.0 performance, and good endurance. It is ideally suited for handheld consoles, small-form-factor laptops, and other devices that require a fast and spacious storage solution in a very small format.
