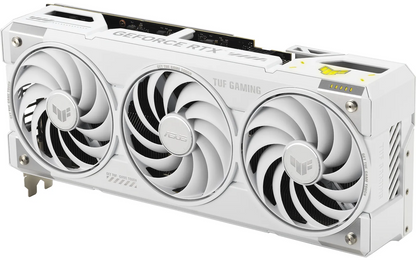

ASUS TUF-RTX5070TI-O16G-BTF -GRAPHICS CARD

ASUS TUF-RTX5070TI-O16G-BTF is a premium graphics card based on the NVIDIA Blackwell architecture, part of the ASUS BTF (Back-To-the-Future) ecosystem. The card is specifically designed for clean, almost cable-free setups using ASUS's GC-HPWR connector, but it also works with regular motherboards via an adapter. It offers excellent performance for 1440p and 4K gaming, as well as demanding content creation.

Technical Specifications

Graphics Processor: NVIDIA GeForce RTX 5070 Ti
Architecture: NVIDIA Blackwell
Video Memory: 16 GB GDDR7
CUDA Cores: 8,960
Memory Bus: 256-bit
Memory Speed: 28 Gbps
Memory Bandwidth: 896 GB/s
Interface: PCI Express 5.0 x16
Boost Clock (OC Mode): up to 2610 MHz
Boost Clock (Gaming Mode): 2588 MHz
Tensor Cores: 5th Generation
RT Cores: 4th Generation
Cooling: Three Axial-tech fans
Dual BIOS: Performance / Quiet
RGB Lighting: Aura Sync
Display Outputs: 3 × DisplayPort 2.1b, 2 × HDMI 2.1b
Maximum Resolution: 7680 × 4320 (8K)
DirectX Support: DirectX 12 Ultimate
OpenGL Support: OpenGL 4.6
DLSS Support: NVIDIA DLSS 4
NVIDIA Reflex 2: Yes
NVIDIA Studio: Yes
Power Connector: GC-HPWR BTF connector and adapter support
Power Consumption (TGP): approx. 300 W
Slot Count: 3.125-slot
Card Length: approx. 330 mm
Recommended PSU: 850 W or more powerful
Structural Reinforcement: Metal backplate, military-grade components, and PCB protection

The ASUS TUF-RTX5070TI-O16G-BTF stands out from standard RTX 5070 Ti models primarily due to its BTF design, which allows for significantly cleaner cabling in compatible BTF motherboards. Additionally, the card offers the durable construction, efficient cooling, quiet operation, and high factory overclocking characteristic of the TUF series. It is ideally suited for high-end 1440p gaming, 4K gaming, video editing, 3D rendering, and AI workloads.
