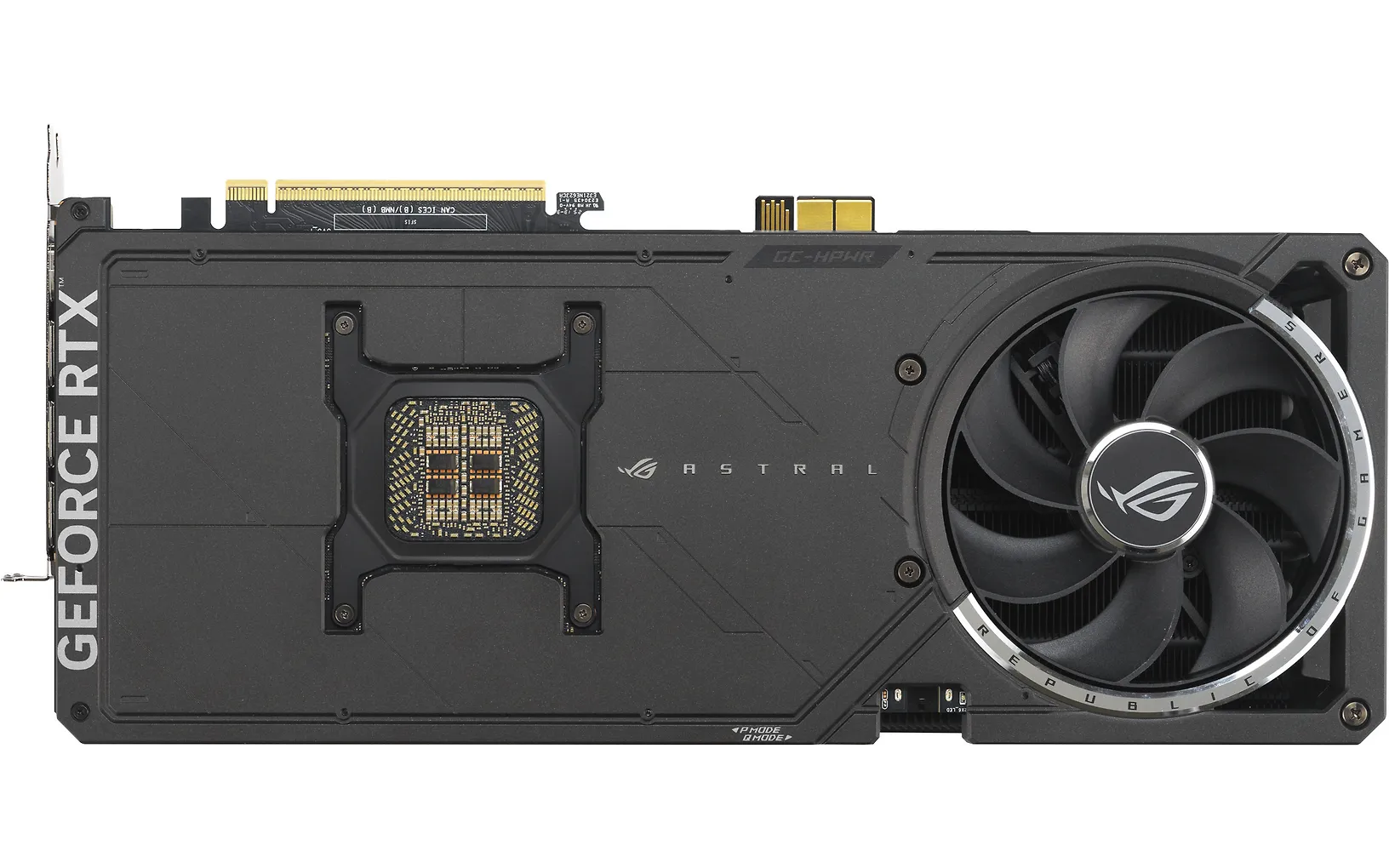

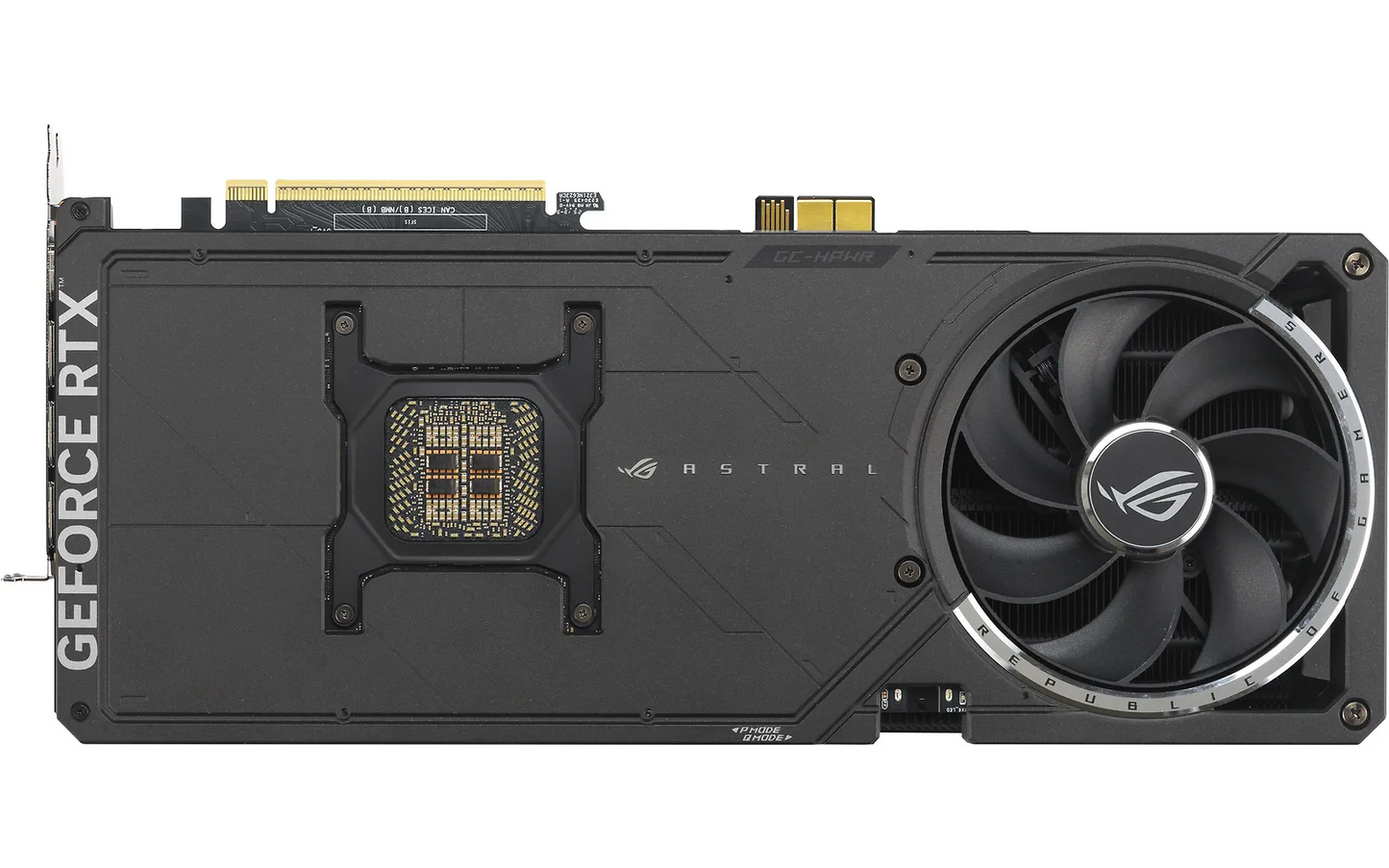

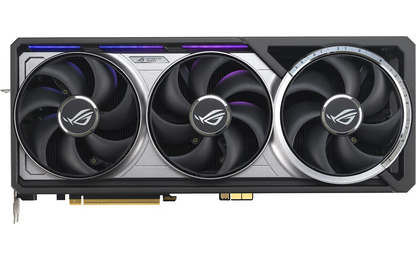

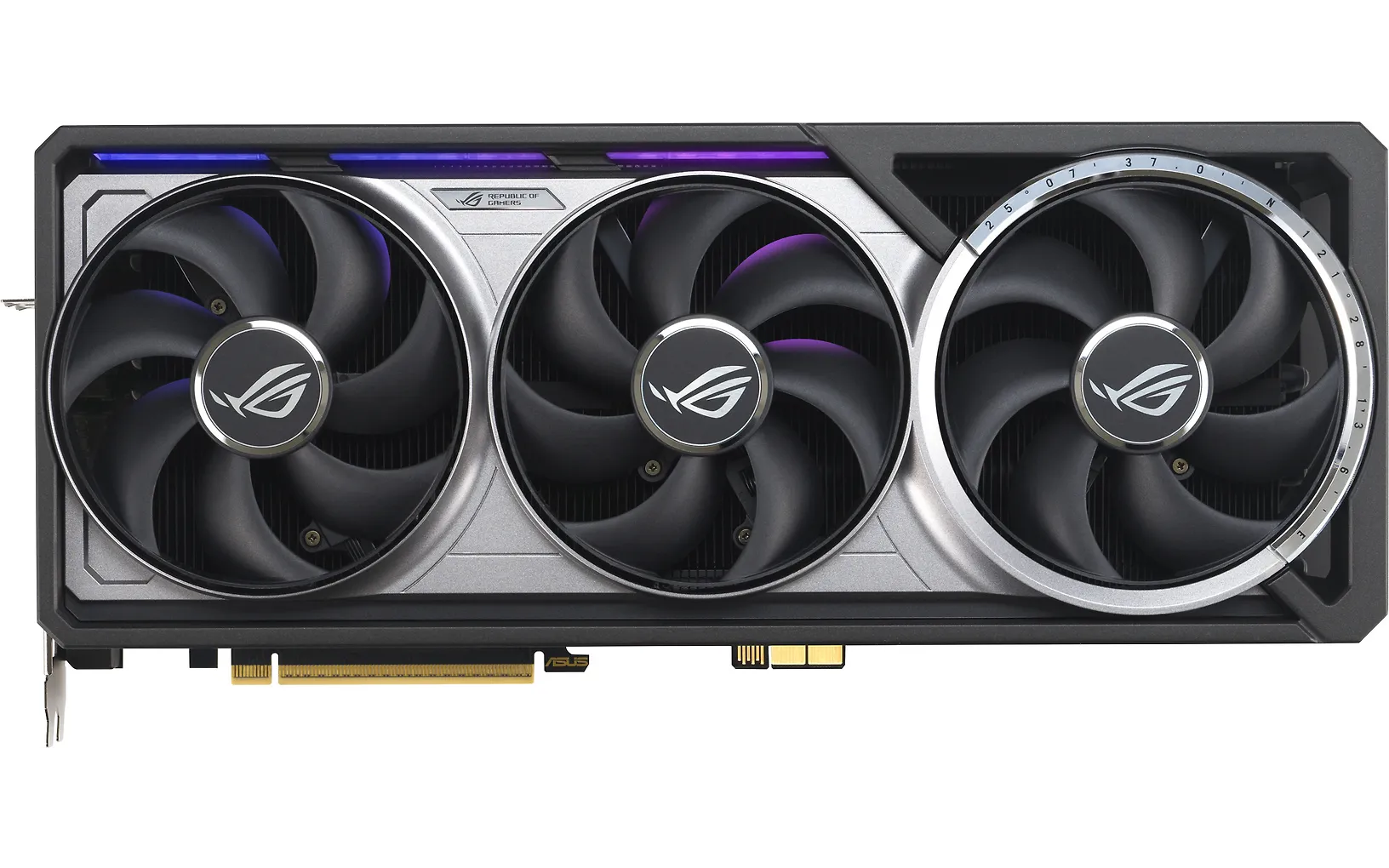

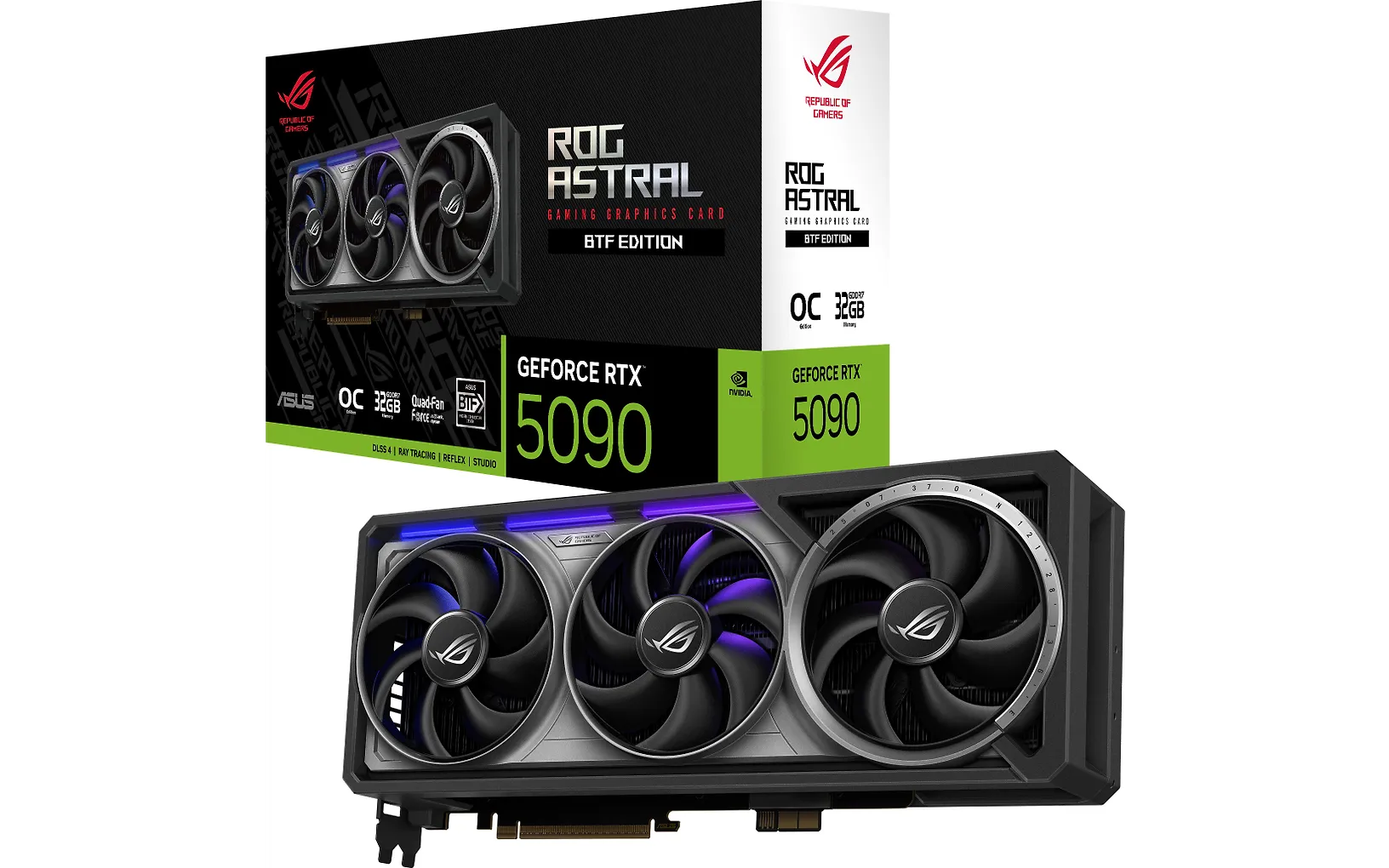

ASUS ROG ASTRAL GEFORCE RTX 5090 BTF OC EDITION 32G GRAPHICS CARD

The ASUS ROG Astral GeForce RTX 5090 BTF OC Edition 32G is a top-tier graphics card based on the NVIDIA Blackwell architecture, combining some of the most powerful graphics performance on the market with ASUS's innovative BTF (Back-To-the-Future) technology. The card is designed for demanding 4K and 8K gaming, AI computing, 3D rendering, and professional content creation. The BTF design allows for neater cabling in compatible BTF setups, but the card also works in standard systems with an adapter.

Technical Specifications

Graphics Processor: NVIDIA GeForce RTX 5090
Architecture: NVIDIA Blackwell
Video Memory: 32 GB GDDR7
CUDA Cores: 21,760
Memory Bus: 512-bit
Memory Speed: 28 Gbps
Memory Bandwidth: 1,792 GB/s
Interface: PCI Express 5.0 x16
Boost Clock (OC Mode): up to 2610 MHz
Tensor Cores: 5th Gen
RT Cores: 4th Gen
Cooling: Quad Axial-tech fan cooling system
Cooling Structure: Vapor chamber, dense fin stack, and phase-change thermal pad
Dual BIOS: Performance / Quiet
RGB Lighting: Aura Sync RGB

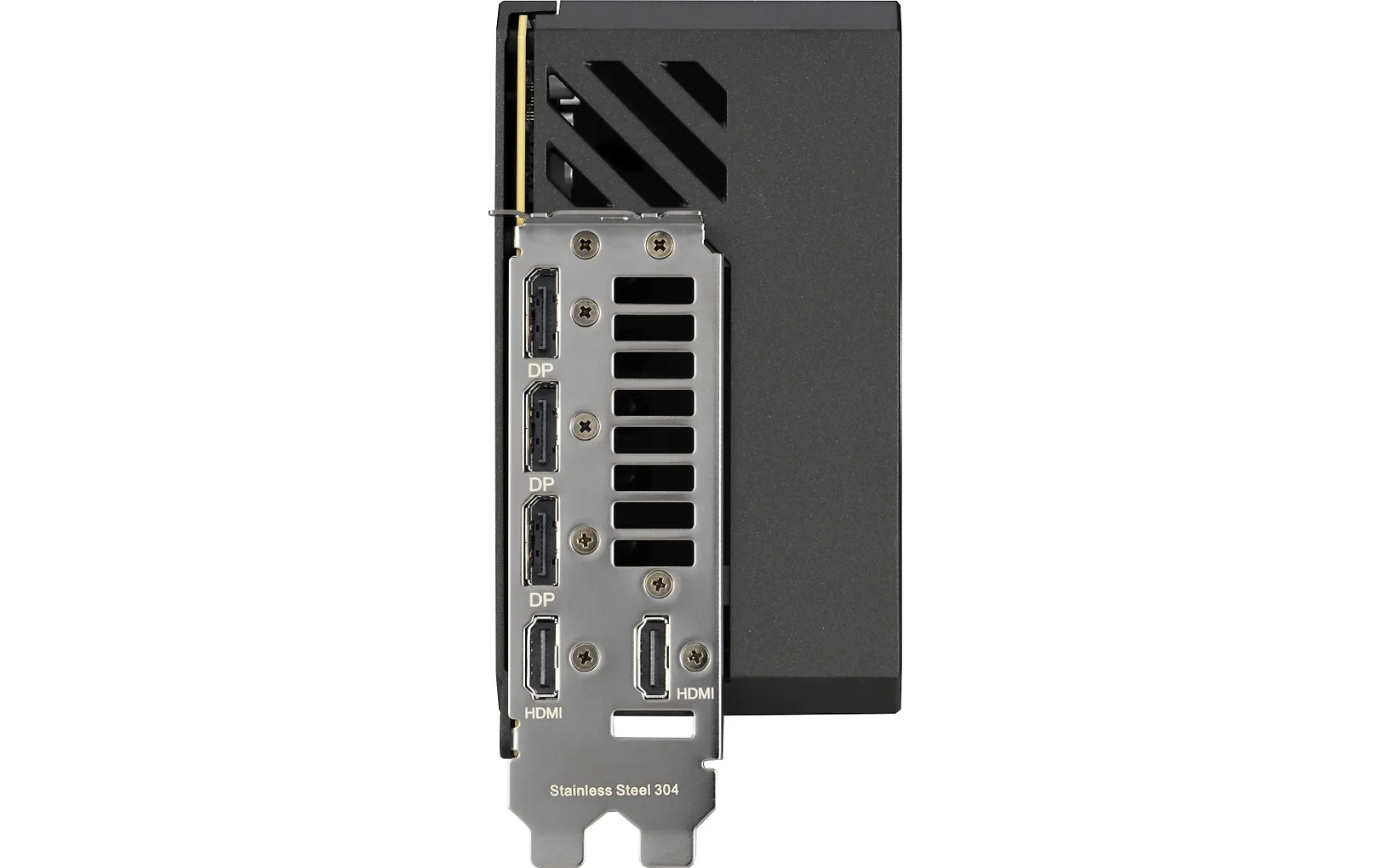

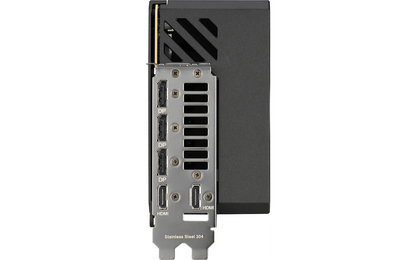

Display Outputs: 3 × DisplayPort 2.1b, 2 × HDMI 2.1b
Max Resolution: 7680 × 4320 (8K)
DirectX Support: DirectX 12 Ultimate
OpenGL Support: OpenGL 4.6
DLSS Support: NVIDIA DLSS 4
NVIDIA Reflex 2: Yes
NVIDIA Studio: Yes
Power Connector: GC-HPWR BTF connector with adapter support
Power Connector Load Capacity: up to 1000 W
Power Consumption (TGP): 575 W
Slots: approximately 4-slot
Card Length: approximately 358 mm
Recommended PSU: 1000 W or higher
Structural Reinforcement: Metal frame structure, protected PCB, and premium ROG components

The ASUS ROG Astral GeForce RTX 5090 BTF OC Edition 32G offers extreme performance without compromise. Its 32 GB GDDR7 memory, DLSS 4, advanced ray tracing, quad-fan cooling, and innovative BTF power solution make it one of the most advanced RTX 5090 models on the market. The card is ideally suited for high-end gaming, AI development, video editing, 3D production, and other most demanding workloads.
