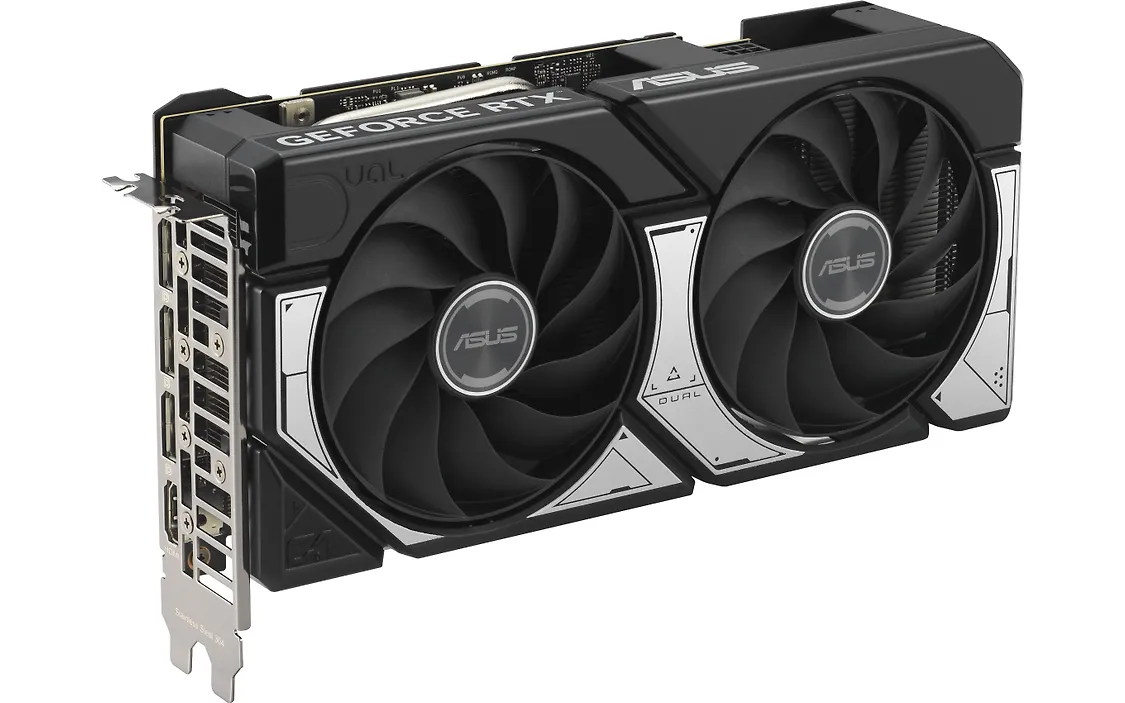

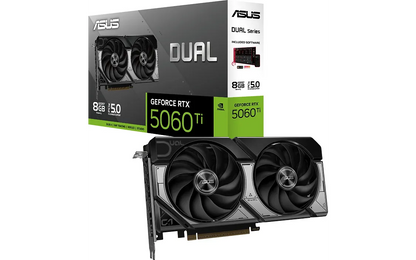

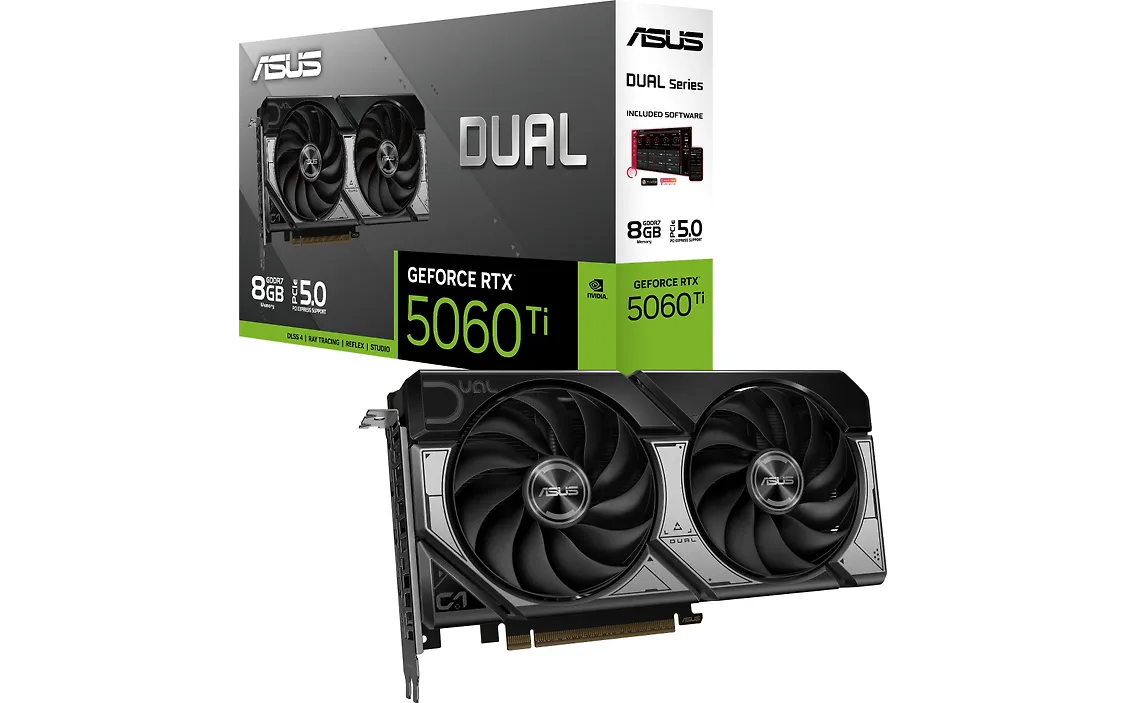

ASUS DUAL GEFORCE RTX 5060 TI OC EDITION 8G GRAPHICS CARD

The ASUS Dual GeForce RTX 5060 Ti OC Edition 8GB is a high-performance graphics card based on the NVIDIA Blackwell architecture, combining powerful performance, a compact design, and efficient dual-fan cooling. The Dual series is specifically designed for users who want strong 1080p gaming performance and good performance at 1440p resolution, packed into a smaller form factor. The card's compact design also makes it an excellent option for SFF builds.

Technical Specifications

Graphics Processor: NVIDIA GeForce RTX 5060 Ti
Architecture: NVIDIA Blackwell
Video Memory: 8 GB GDDR7
CUDA Cores: 4,608
Memory Bus: 128-bit
Memory Speed: 28 Gbps
Memory Bandwidth: 448 GB/s
Interface: PCI Express 5.0 x8
Boost Clock (OC Mode): up to 2632 MHz
Tensor Cores: 5th Gen
RT Cores: 4th Gen

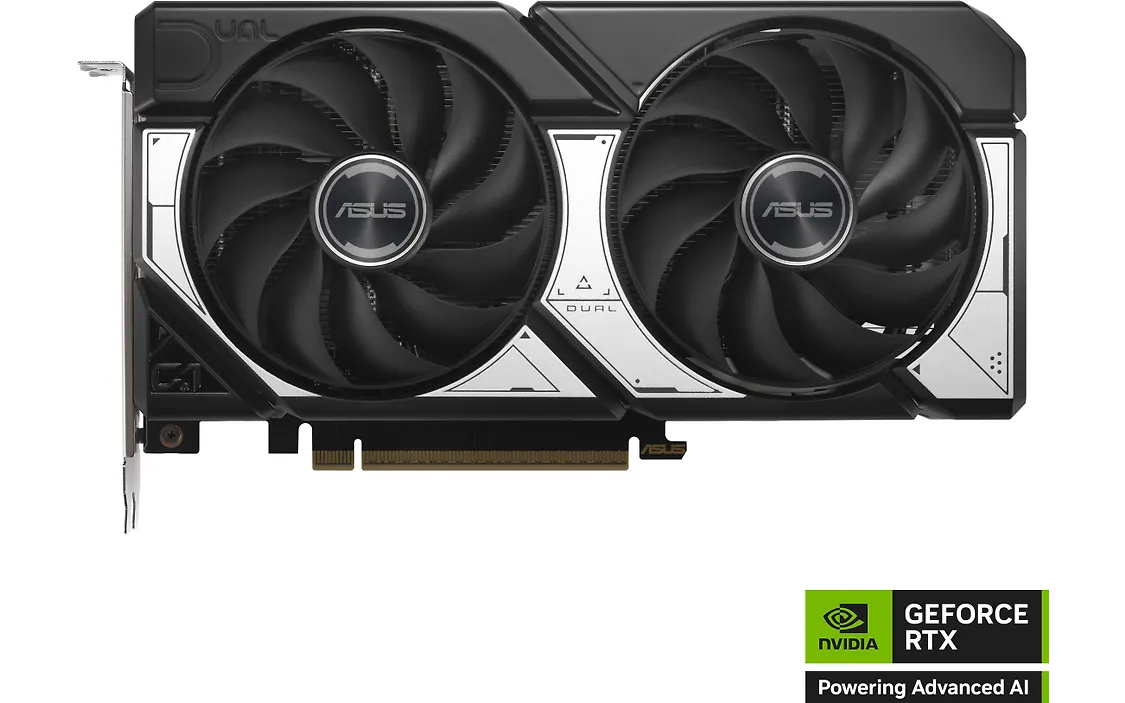

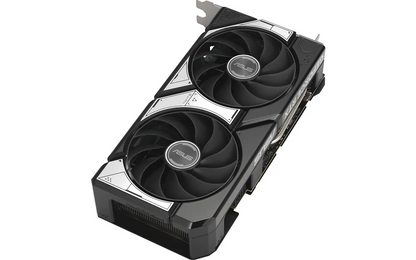

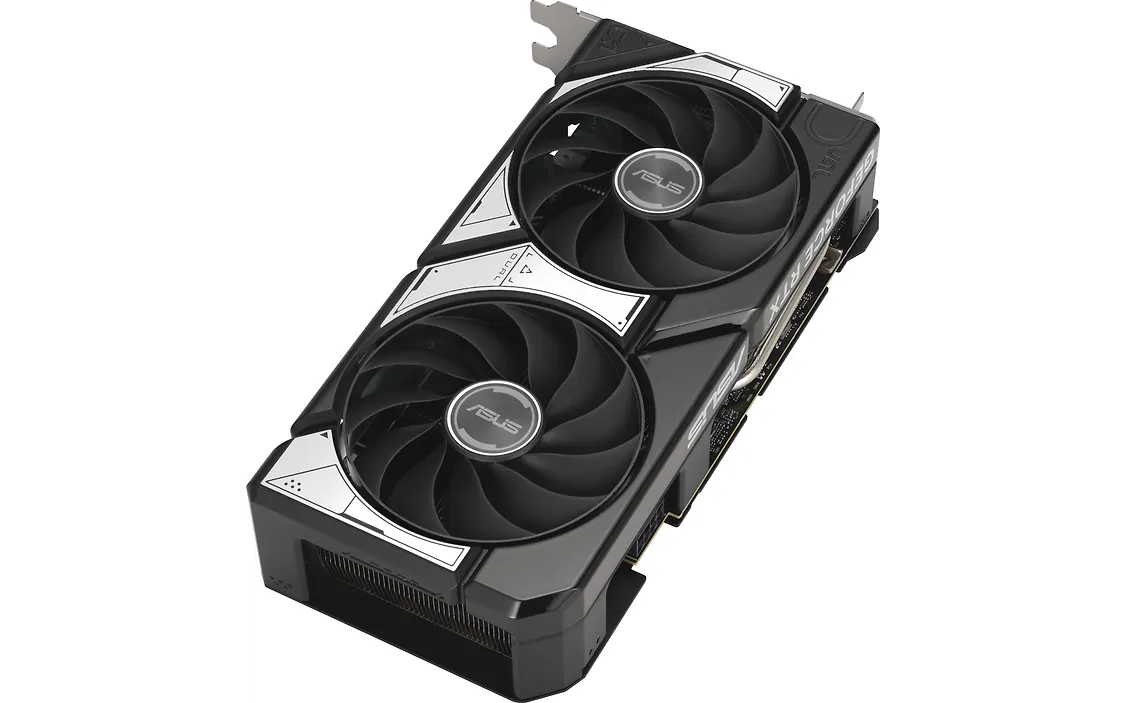

Cooling: Two Axial-tech fans
0 dB Mode: Yes
Dual BIOS: Performance / Quiet

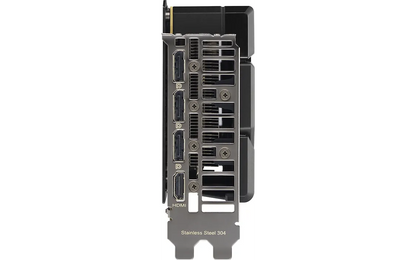

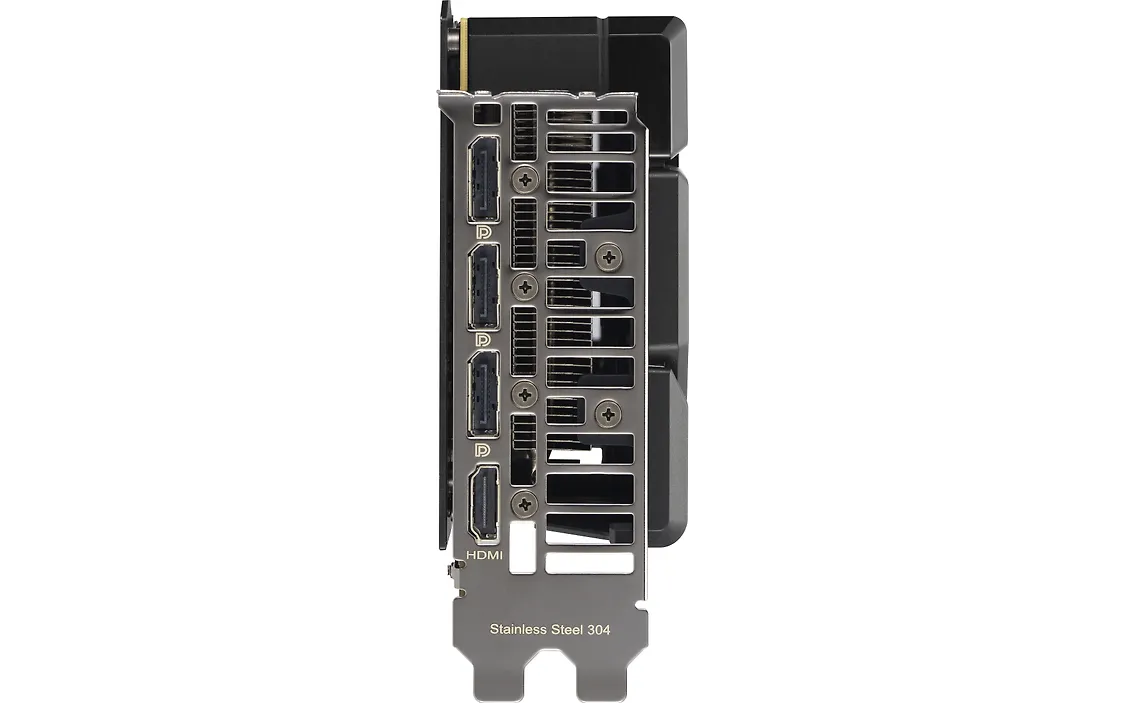

Display Outputs: 3 × DisplayPort 2.1b, 1 × HDMI 2.1b
Max Resolution: 7680 × 4320 (8K)
DirectX Support: DirectX 12 Ultimate
OpenGL Support: OpenGL 4.6
DLSS Support: NVIDIA DLSS 4
NVIDIA Reflex 2: Yes
NVIDIA Studio: Yes

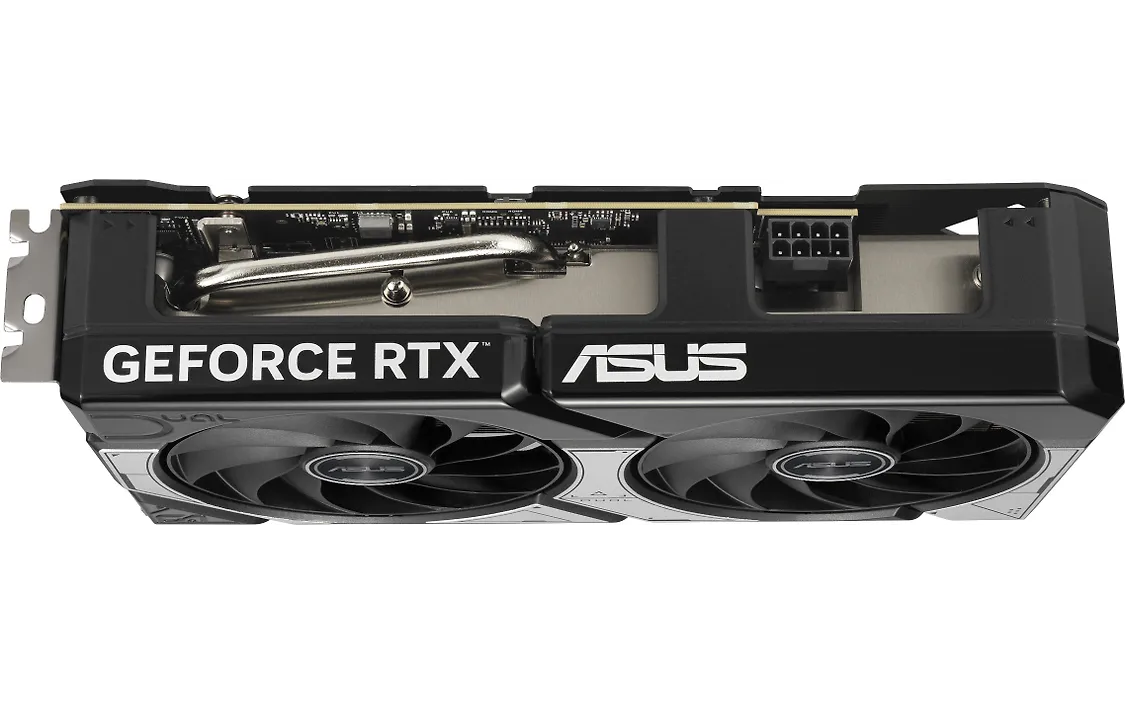

Power Connector: 1 × 8-pin PCIe
Power Consumption (TGP): approx. 180 W
Card Slots: approx. 2.5-slot
Card Length: approx. 229 mm
Recommended PSU: 550 W or higher

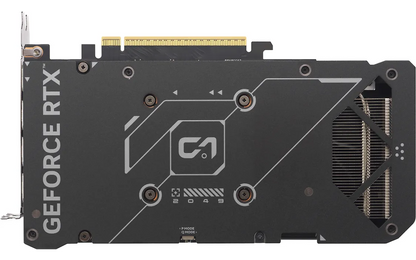

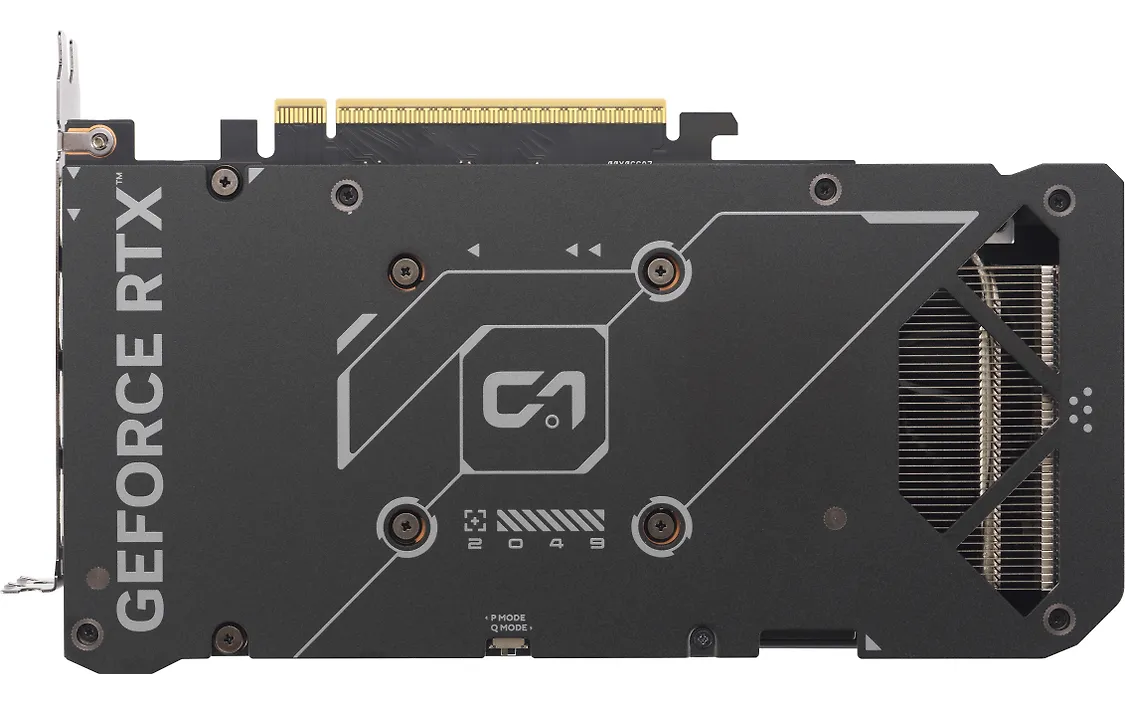

Structural Reinforcement: Metal backplate and reinforced frame structure
SFF Compatibility: Yes

The ASUS Dual GeForce RTX 5060 Ti OC Edition 8GB offers excellent performance for 1080p gaming at high settings and good performance at 1440p resolution with DLSS 4 technology. Its 8GB GDDR7 memory, efficient dual-fan cooling, compact design, and energy-efficient Blackwell architecture make it an excellent choice for users who want strong performance in a small form-factor PC build.
