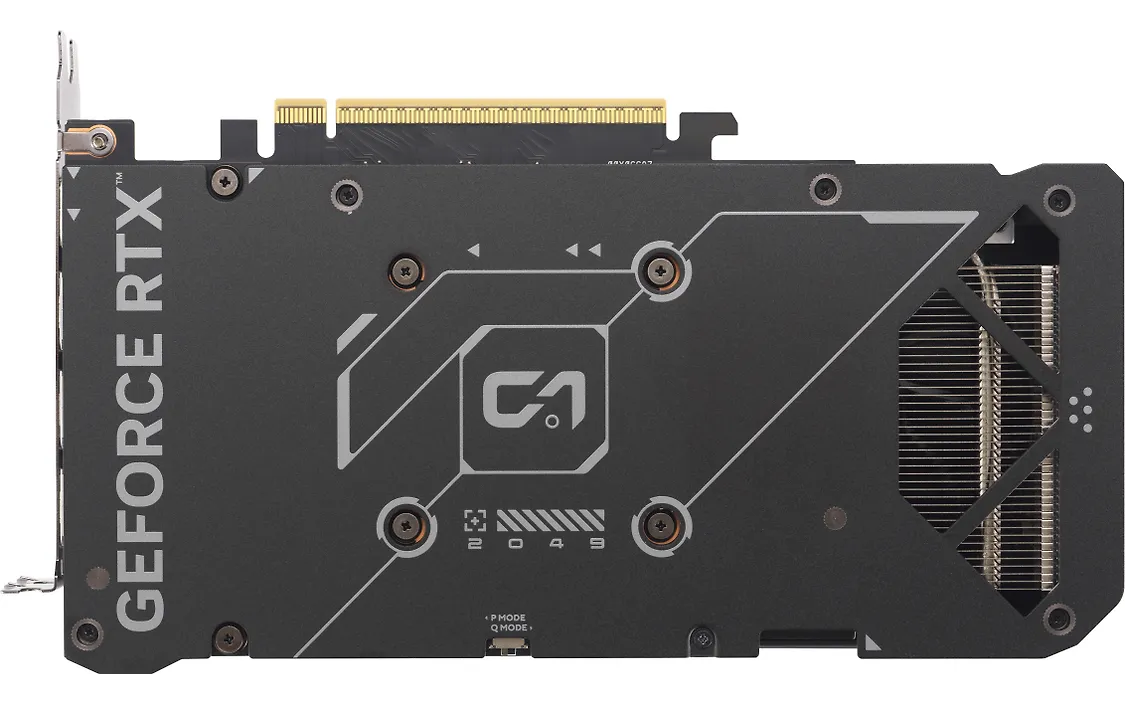

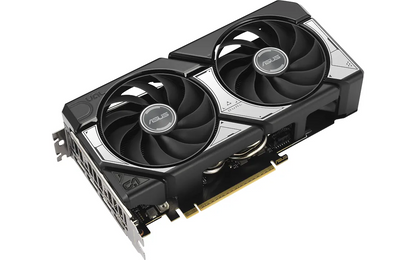

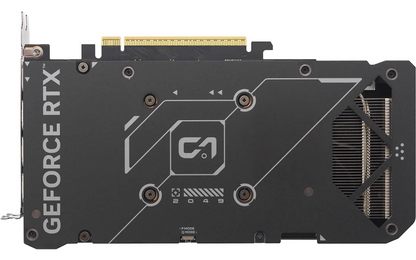

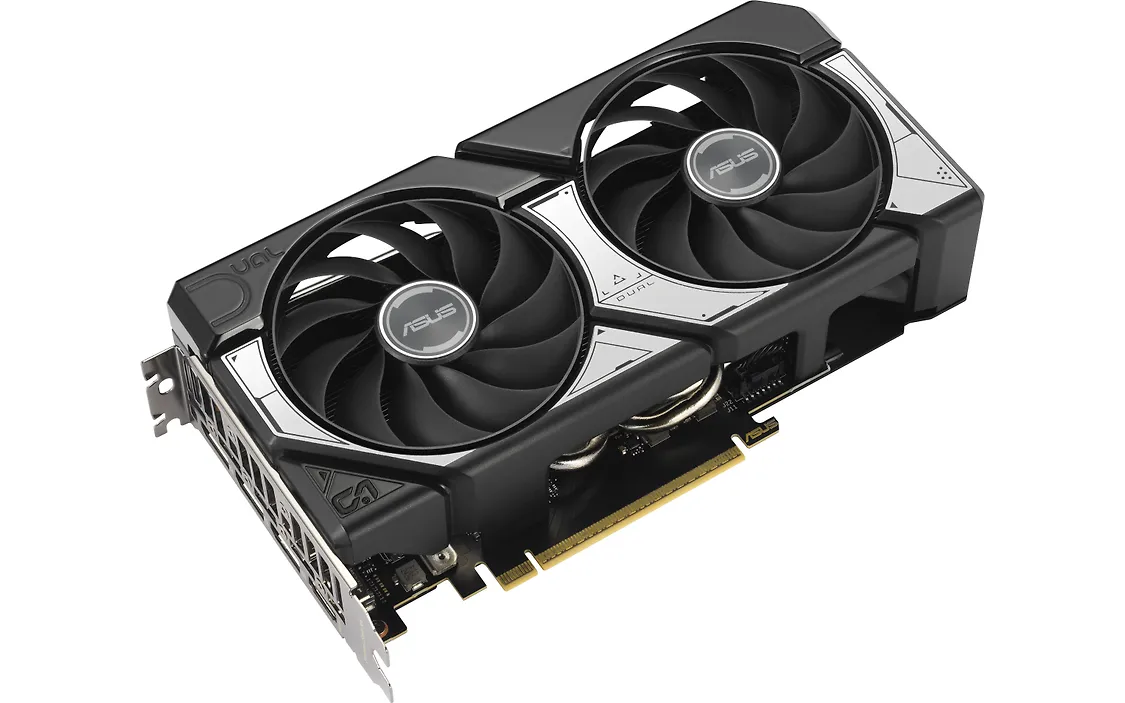

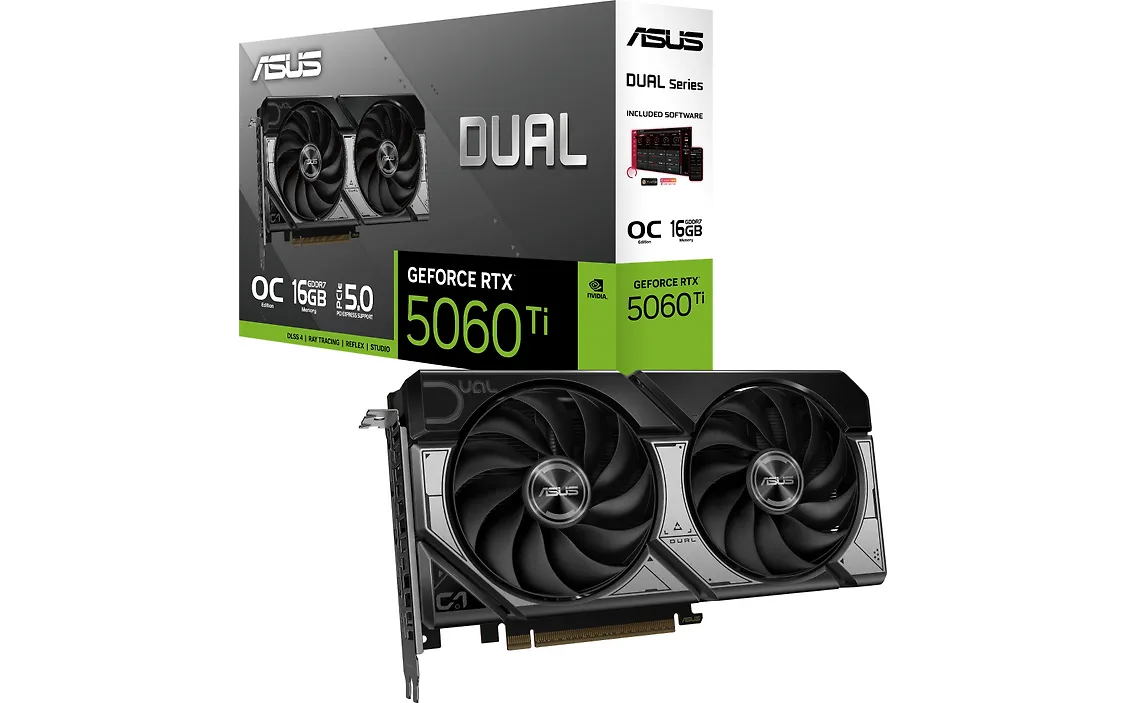

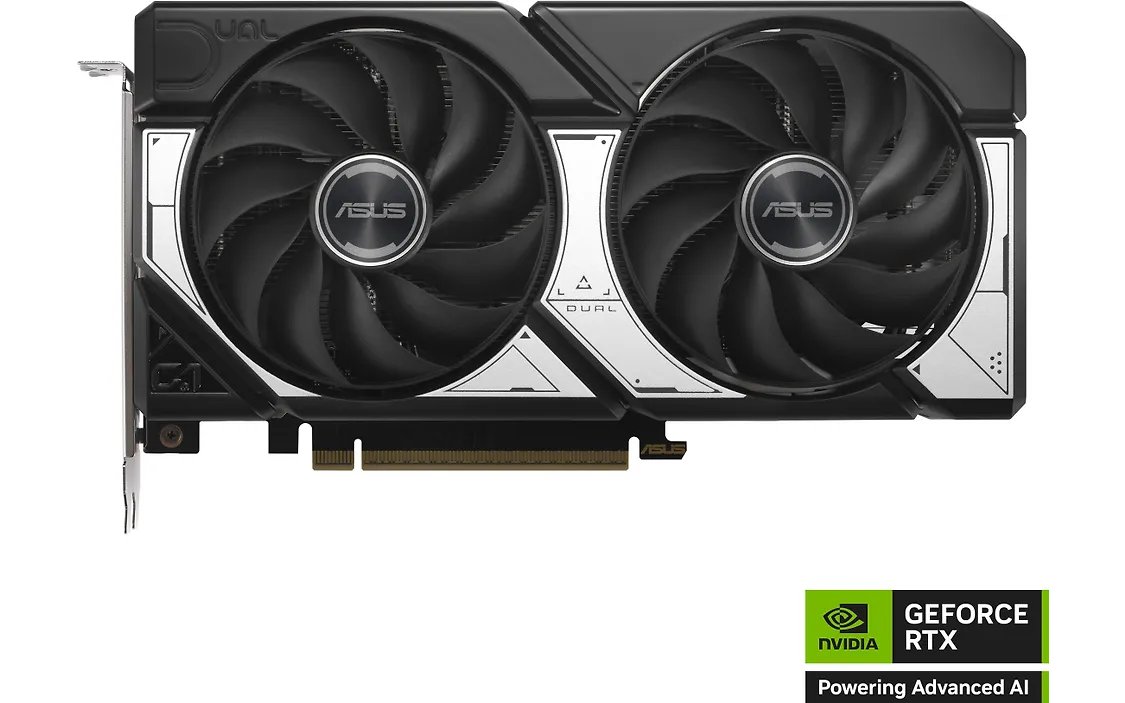

ASUS DUAL GEFORCE RTX 5060 TI OC EDITION 16GB GRAPHICS CARD

The ASUS Dual GeForce RTX 5060 Ti OC Edition 16GB is a high-performance graphics card based on the NVIDIA Blackwell architecture, combining powerful gaming performance, a compact design, and efficient dual-fan cooling. The Dual series is designed for users who want strong 1080p and 1440p gaming performance packed into a smaller form factor. The card's compact design also makes it an excellent option for SFF builds.

Technical Specifications

Graphics Chip: NVIDIA GeForce RTX 5060 Ti
Architecture: NVIDIA Blackwell
Video Memory: 16 GB GDDR7
CUDA Cores: 4,608
Memory Bus: 128-bit
Memory Speed: 28 Gbps
Memory Bandwidth: 448 GB/s
Interface: PCI Express 5.0 x8
Boost Clock (OC Mode): up to 2632 MHz
Tensor Cores: 5th Generation
RT Cores: 4th Generation
Cooling: Two Axial-tech fans
0 dB Mode: Yes
Dual BIOS: Performance / Quiet
Display Connectors: 3 × DisplayPort 2.1b, 1 × HDMI 2.1b
Maximum Resolution: 7680 × 4320 (8K)
DirectX Support: DirectX 12 Ultimate
OpenGL Support: OpenGL 4.6
DLSS Support: NVIDIA DLSS 4
NVIDIA Reflex 2: Yes
NVIDIA Studio: Yes
Power Connector: 1 × 8-pin PCIe
Power Consumption (TGP): approximately 180 W
Slot Size: approximately 2.5-slot
Card Length: approximately 229 mm
Recommended PSU: 550 W or higher
Structural Reinforcement: Metal backplate and reinforced frame structure
SFF Compatibility: Yes

The ASUS Dual GeForce RTX 5060 Ti OC Edition 16GB offers excellent performance for 1080p and 1440p gaming, a large 16 GB GDDR7 memory, efficient dual-fan cooling, and the latest DLSS 4 and NVIDIA Reflex 2 features. Its compact design, quiet operation, and energy-efficient Blackwell architecture make it an excellent option for users who want strong performance in a small form factor PC build.
