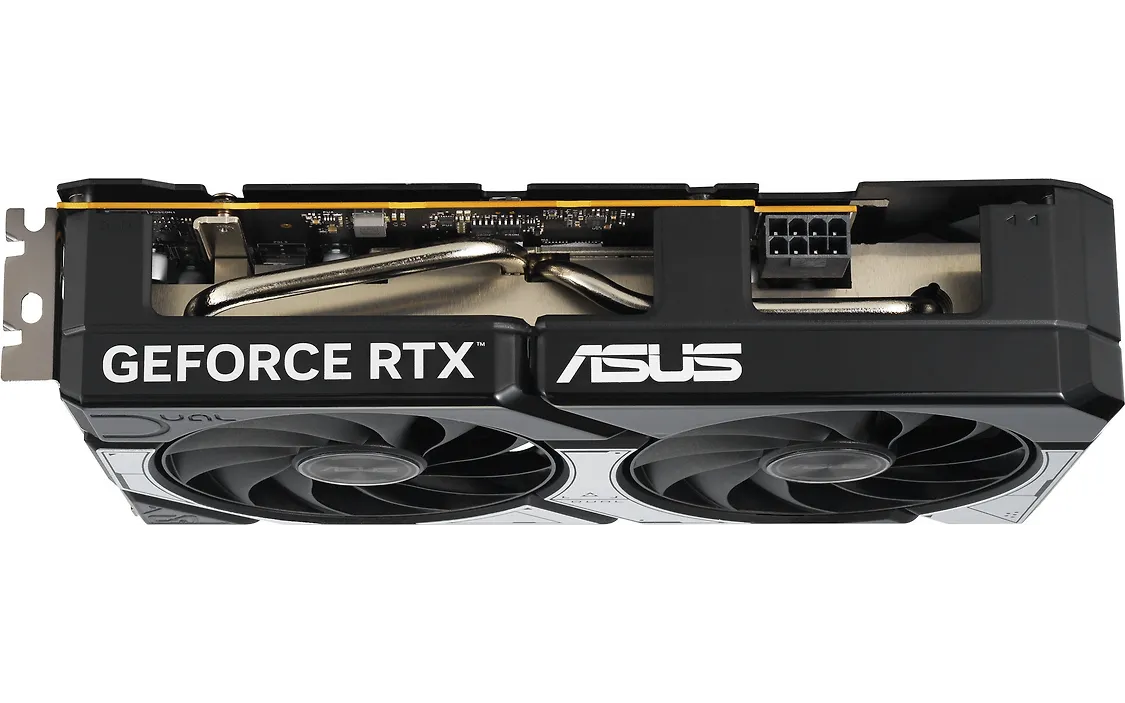

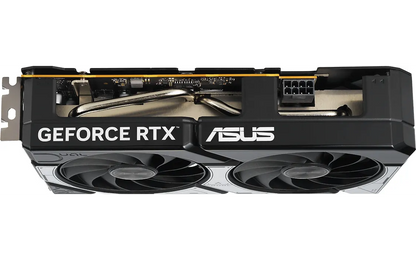

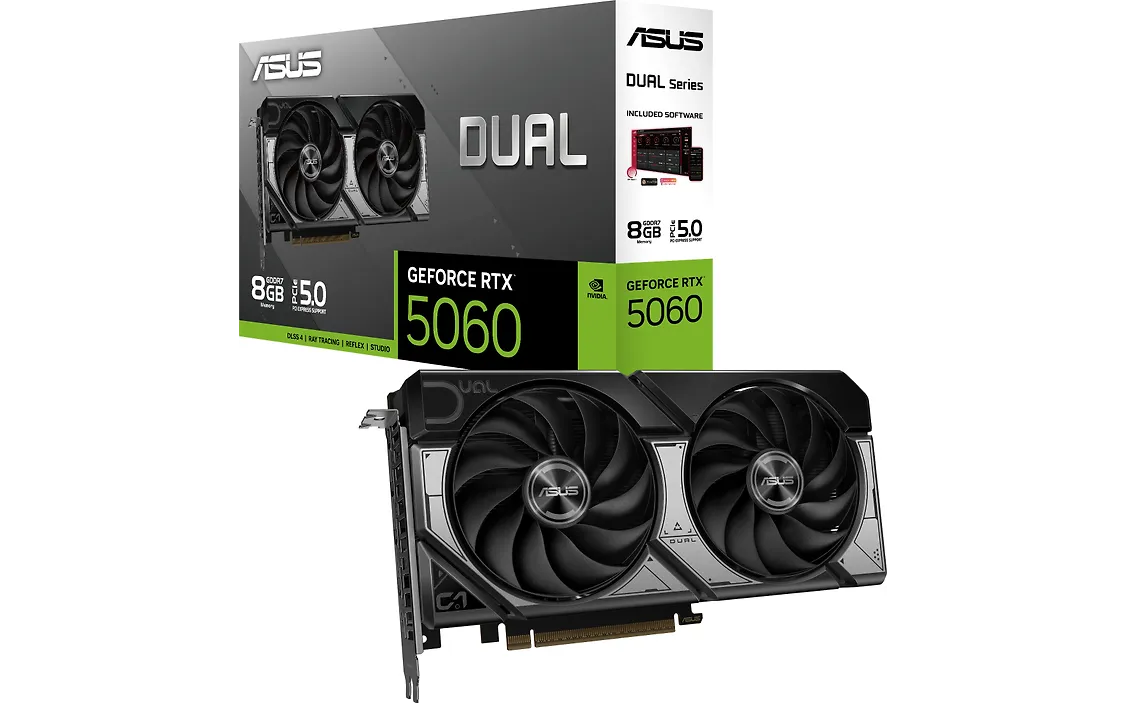

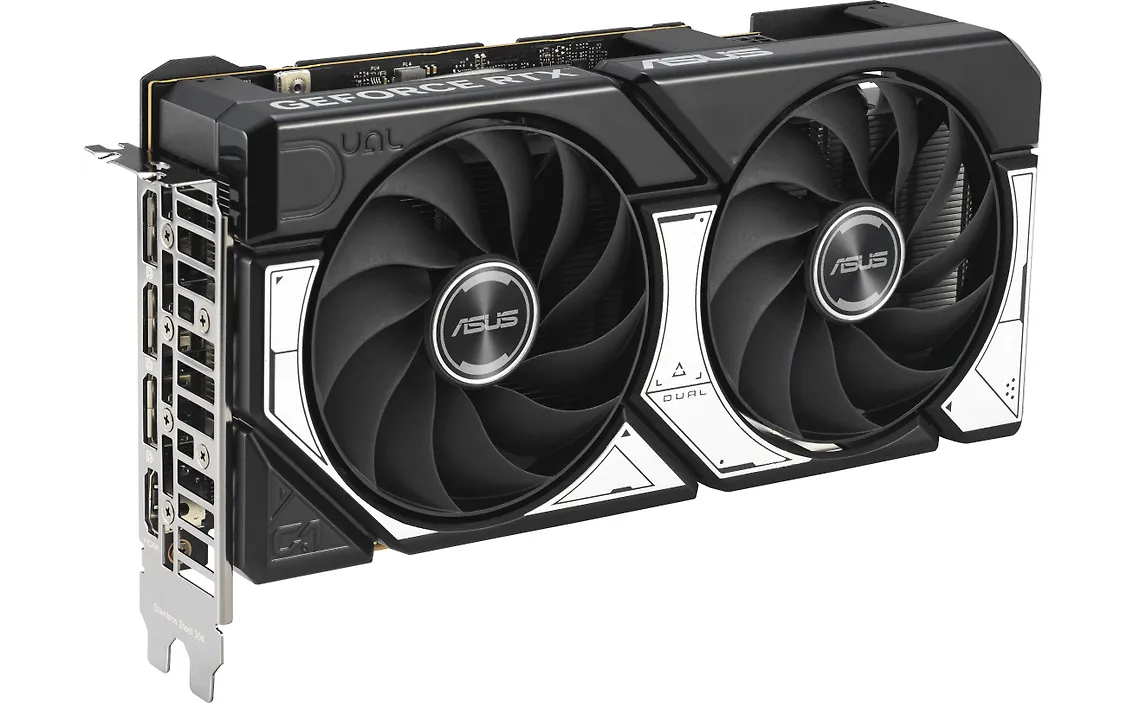

ASUS DUAL GEFORCE RTX 5060 8GB GRAPHICS CARD

The ASUS Dual GeForce RTX 5060 8GB is a modern graphics card based on the NVIDIA Blackwell architecture, offering excellent performance for 1080p gaming and good performance even at 1440p resolution. The Dual series combines a compact design, efficient dual-fan cooling, and energy-efficient operation, making it an excellent option for smaller computer cases and SFF builds.

Technical Specifications

Graphics Chip: NVIDIA GeForce RTX 5060
Architecture: NVIDIA Blackwell
Video Memory: 8 GB GDDR7
CUDA Cores: 3,840
Memory Bus: 128-bit
Memory Speed: 28 Gbps
Memory Bandwidth: 448 GB/s
Interface: PCI Express 5.0 x8
Boost Clock: up to 2497 MHz
Tensor Cores: 5th Generation
RT Cores: 4th Generation

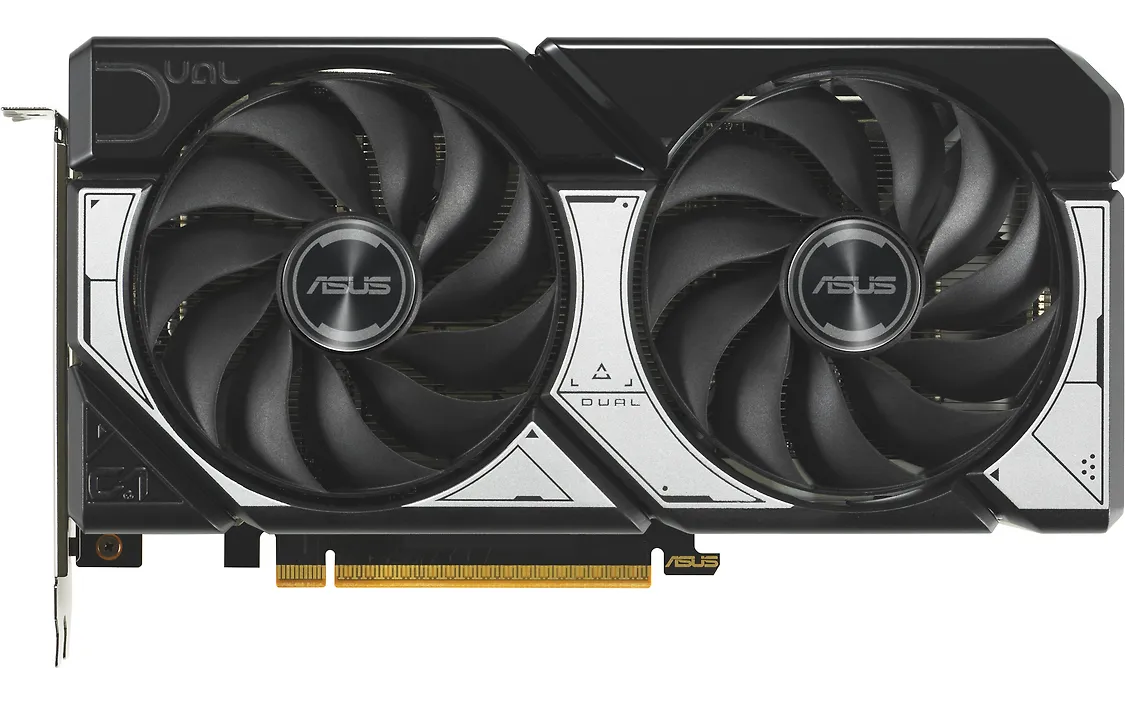

Cooling: Two Axial-tech Fans
0 dB Mode: Yes
Dual BIOS: Performance / Quiet

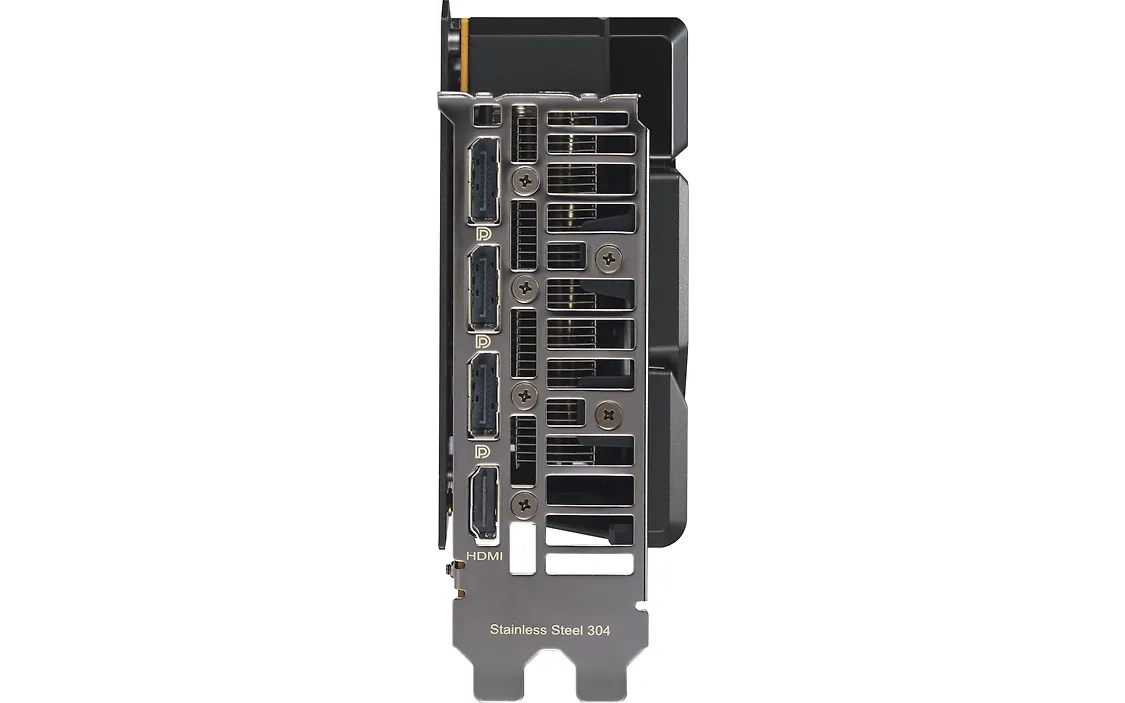

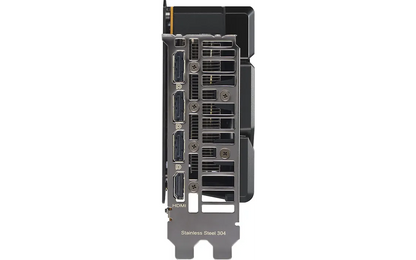

Display Connectors: 3 × DisplayPort 2.1b, 1 × HDMI 2.1b
Maximum Resolution: 7680 × 4320 (8K)
DirectX Support: DirectX 12 Ultimate
OpenGL Support: OpenGL 4.6
DLSS Support: NVIDIA DLSS 4
NVIDIA Reflex 2: Yes
NVIDIA Studio: Yes
Power Connector: 1 × 8-pin PCIe
Total Graphics Power (TGP): approximately 145 W
Card Slots: approximately 2.5-slot
Card Length: approximately 229 mm
Recommended PSU: 550 W or more powerful

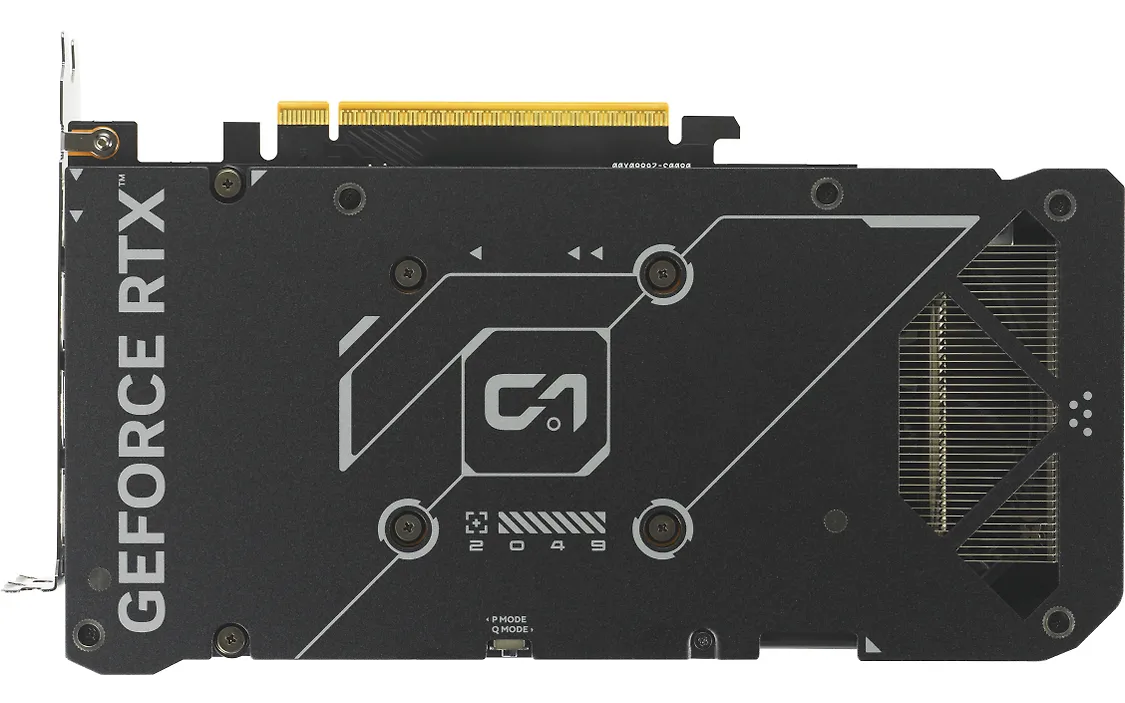

Structural Reinforcement: Metal backplate and reinforced frame structure
SFF Compatibility: Yes

The ASUS Dual GeForce RTX 5060 8GB offers excellent performance for 1080p gaming at high graphics settings and modern NVIDIA technologies such as DLSS 4, NVIDIA Reflex 2, and advanced ray tracing. Its 8 GB GDDR7 memory, efficient dual-fan cooling, compact design, and energy-efficient Blackwell architecture make it an excellent choice for users who want a reliable and high-performance graphics card for modern gaming and content creation.
